6. Peel off the protective foil on one side of the double sided tape.
7. Stick the double sided tape along the middle axis on the canopy top (The camera lens (7)
shall eventually sit between the two red propellers). Peel off the remaining protective foil of the
double sided tape.
8. Affix the camera to the tape, with the camera lens (7) facing the red propellers ("facing front").
The dip switches (5) must face up so that you are able to select the channels.
9. Make sure to guide the cable along the middle of the canopy to prevent it from getting entangled
during operation of the "RC EYE One S" (see Fig. 2).
7. oPeRatIoN
selecting channel and output format
The channel selection must be in line with the channel selection on your display device
(receiving device). The free field operating distance of the camera to the display device is
approximately 60 m. Obstacles such as walls or magnetic interferences can shorten the
operating distance.
Before you set the output format (PAL/NTSC) disconnect the power supply to the camera.
The camera will only stream video with the set output format after you restart the camera.

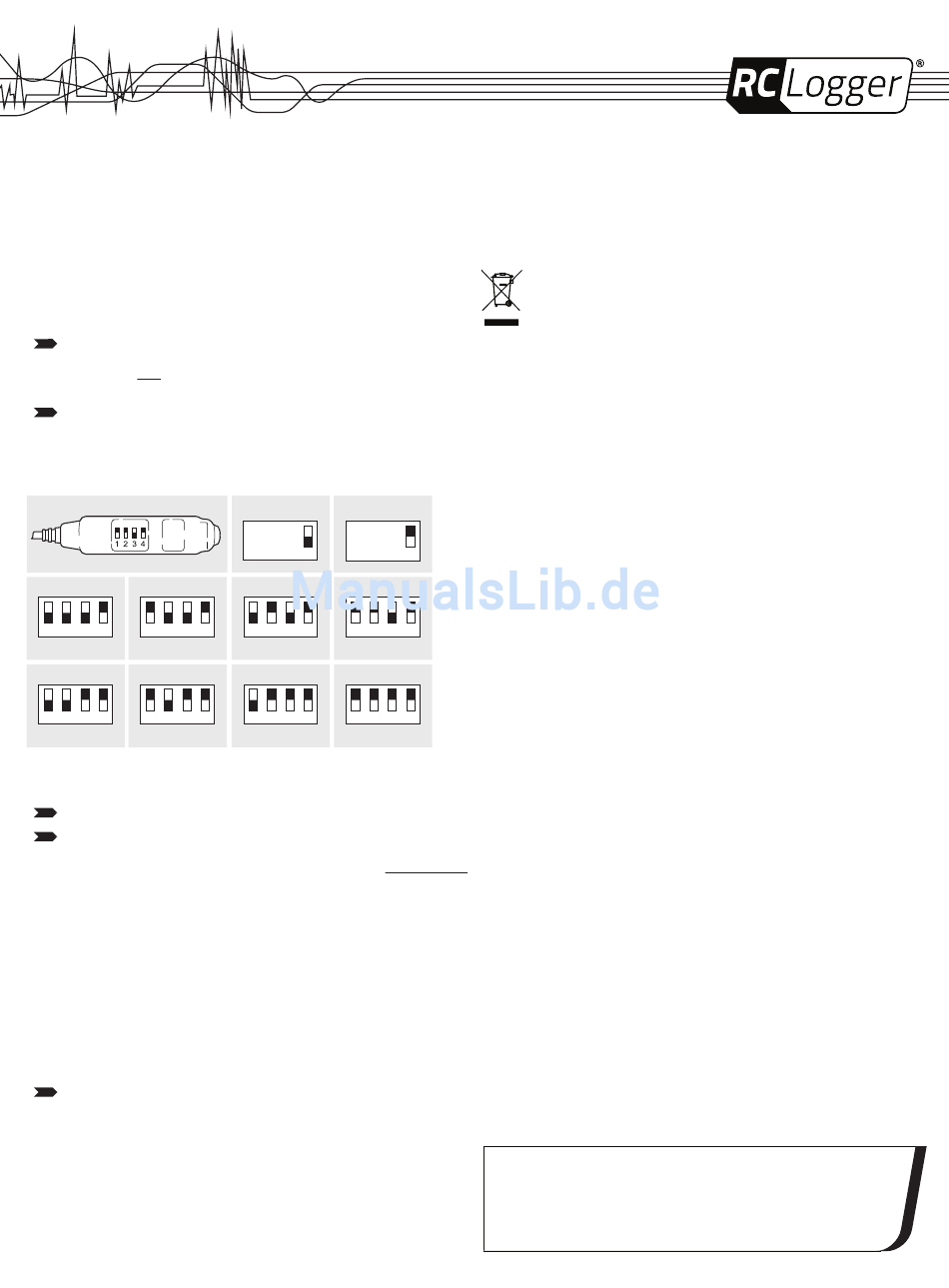

Please select channel (frequency) and video output format (PAL, NTSC) as illustrated in below
diagram (see Fig. 3). Use a thin and dull object to set the switches, e.g a tooth-pick. Sharp objects
damage the switches.
CH1
CH2
1
2
3
4
1
2
3
4
( 5.733 GHz )
( 5.752 GHz )
CH5
CH6
1
2
3
4
1
2
3
4
( 5.809 GHz )
( 5.828 GHz )
Fig. 3
Connecting to display device
Keep the operating instructions for the "RC EYE One S" and our display device ready.
The following compatible RC Logger devices can be purchased to be operated in
conjunction with the camera: RC EYE OneCam 5.8 GHz RX (89050RC) and 5.8 GHz
Video TX RX Set (20015RC). Please visit the RC Logger website at www.rclogger.com
for more information.
1. For the camera to work properly in conjunction with a suitable display device, study the
instruction manual that came with your display device carefully.
2. Set the channel and output format. Use the dip switches (5) on the camera (see "Selecting
channel and output format") and for the display device set the channel as described in its
operating instructions.
3. Connect the male battery connector to the female connector (1) on the camera. Once the
control indicator light on the "RC EYE One S" lights up, the camera is supplied with power and
signal transmission is started.
4. Turn on your display device. Once pairing between camera and display device is successfully
established, image transmission can take place.
5. After use turn the camera off by disconnecting the battery.
Do not continuously operate the camera for more than 1 hour to avoid damage. After
operating for 1 hour let the camera cool down completely before using it again.
PAL
NTSC
4
4
CH3
CH4
1
2
3
4
1
2
3
4
( 5.771 GHz )
( 5.790 GHz )
CH7
CH8
1
2
3
4
1
2
3
4
( 5.847 GHz )
( 5.866 GHz )
8. MaINteNaNCe, CaRe aNd RePaIR
> Disconnect the power supply to the camera before cleaning and maintenance.
> Regularily clean the camera with a dry cloth. To clean the lens you may use a cotton butt and a
suitable lens cleaning agent.
> Repairs should only be handled by a professional.
9. dIsPosal
In order to preserve, protect and improve the quality of environment, protect human
health and utilise natural resources prudently and rationally, the user should return
unserviceable product to relevant facilities in accordance with statutory regulations.
The crossed-out wheeled bin indicates the product needs to be disposed separately
and not as municipal waste.
Consequently you comply with your legal obligations and contribute to environmental protection!
10. fCC CoMPlIaNCe stateMeNt
FCC ID:
2AARVRCE-ONE-CAMTX
statement according to fCC part 15.19:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
> This device may not cause harmful interference, and
> This device must accept any interference received, including interference that may cause
undesired operation.
statement according to fCC part 15.21:
Modifications not expressly approved by this company could void the user's authority to operate
the equipment.
11. PRoduCt suPPoRt
Visit "http://www.rclogger.com/index.php/contact-us" or call +852 2559 2662 for product support.
Additionally visit our support forum at "http://rclogger.com/forum".
12. teChNICal data
Power supply ..................................................... 7 – 15 V/DC
Current consumption ......................................... max. 200 mA
Frequency .......................................................... 5.733 – 5.866 GHz
CMOS sensor .................................................... 0.3 Mega Pixels
Resolution .......................................................... 640 x 480 (VGA)
Angle of view ..................................................... 55°
Illumination ........................................................ min. 3 Lux/f1.2
Format ............................................................... PAL, NTSC
Channel ............................................................. 8 channels
Operating distance ............................................ max. 60 m (open field)
Operating conditions .......................................... -10 to +50 °C, 85 % RH (non condensing)
Storage conditions ............................................. -20 to +60 °C, 90 % RH (non condensing)
Dimensions (L x W x H) ..................................... Main camera: 43 x 9 x 9 mm
Weight ............................................................... approx. 7.5 g
These operating instructions are published by CEI Conrad Electronic International (HK) Limited, 18th Floor,
Tower 2, Nina Tower, No. 8 Yeung Uk Road, Tsuen Wan, New Territories, Hong Kong.
All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the
capture in electronic data processing systems require the prior written approval by the editor. Reprinting, also
in part, is prohibited. The operating instructions reflect the current technical specifications at time of print. We
reserve the right to change the technical or physical specifications.
© 2013 by CEI Conrad Electronic International (HK) Limited
Power board: 30 x 10.5 x 7 mm
V2_0913-JH
