RC Logger RC EYE OneCam TX Bedienungsanleitung

Operating instructions
RC EYE OneCam TX
No. 89049RC
1. INtRoduCtIoN
Dear customer,
Thank you for making the excellent decision to purchase this RC Logger® product. You now have
a high-quality product with a name that represents outstanding products.
This product complies with the applicable National and European standards and regulations. We
kindly request the user to follow the operating instructions, to preserve this condition and to ensure
safe operation! These operating instructions relate to this product. They contain important notices
on commissioning and handling. Please take this into consideration when you pass the product on
to third parties. Please keep these instructions for further reference!
All company names and product designations contained herein are trademarks of the respective
owners. All rights reserved.
We wish you a great deal of enjoyment with your new RC Logger® product!
Please download the latest version of the operating instructions from our
website at www.rclogger.com. Navigate to the product page and open the
"Downloads" tab. Click on "Operating instructions" to start the download.
2. INteNded use
The model "RC EYE OneCam TX" is a light-weight wireless camera, equipped with a CMOS image
sensor and 5.8 GHz wireless AV transmitting technology.
The camera is solely designed to be used in a model making environment and shall never be
used for surveillance purposes of any kind. The camera shall only be used in dry locations and
environments. The product must not become damp or wet. This product is not a toy and not suitable
for children under 14 years of age.
For safety and approval purposes (CE), you must not rebuild and/or modify this product. If you
use the product for purposes other than those described above, the product may be damaged. In
addition, improper use can cause hazards such as short circuiting, fire, electric shock etc. Read
the instructions carefully and keep them. Make this product available to third parties only together
with its operating instructions.
3. delIveRy CoNteNt
1 x RC EYE OneCam TX
2 x Double sided tape (30 x 8 mm)
Operating instructions
4. safety INstRuCtIoNs
Read the operating instructions carefully and especially observe the safety information. If you do
not follow the safety instructions and information on proper handling in this manual, we assume
no liability for any resulting personal injury or damage to property. Such cases will invalidate the
warranty/guarantee.
surveillance
> You must strictly adhere to national laws governing the use of such camera devices. Misuse may
result in legal prosecution.
Persons / Product
> The device is not a toy. Keep it out of the reach of children and pets.
> Do not leave packaging material lying around carelessly. These may become dangerous playing
material for children.
> Protect the product from extreme temperatures, direct sunlight, strong jolts, high humidity,
moisture, flammable gases, vapours and solvents.
> Do not place the product under any mechanical stress.
> If it is no longer possible to operate the product safely, take it out of operation and protect it from
any accidental use. Safe operation can no longer be guaranteed if the product:
- is visibly damaged,
- is no longer working properly,
- has been stored for extended periods in poor ambient conditions or
- has been subjected to any serious transport-related stresses.
> Please handle the product carefully. Jolts, impacts or a fall even from a low height can damage
the product.
> Also observe the safety and operating instructions of any other devices which are connected
to the product.
> Not following the instructions in these operating instructions may result in dangers such as short
circuit, fire, electric shock, etc. Observe the safety information under all circumstances!
Miscellaneous
Version
> Consult an expert when in doubt about operation, safety or connection of the device.
09/13
> Maintenance, modifications and repairs are to be performed exclusively by an expert or at a
qualified shop.
> If you have questions which remain unanswered by these operating instructions, contact our
technical support service or other technical personnel.

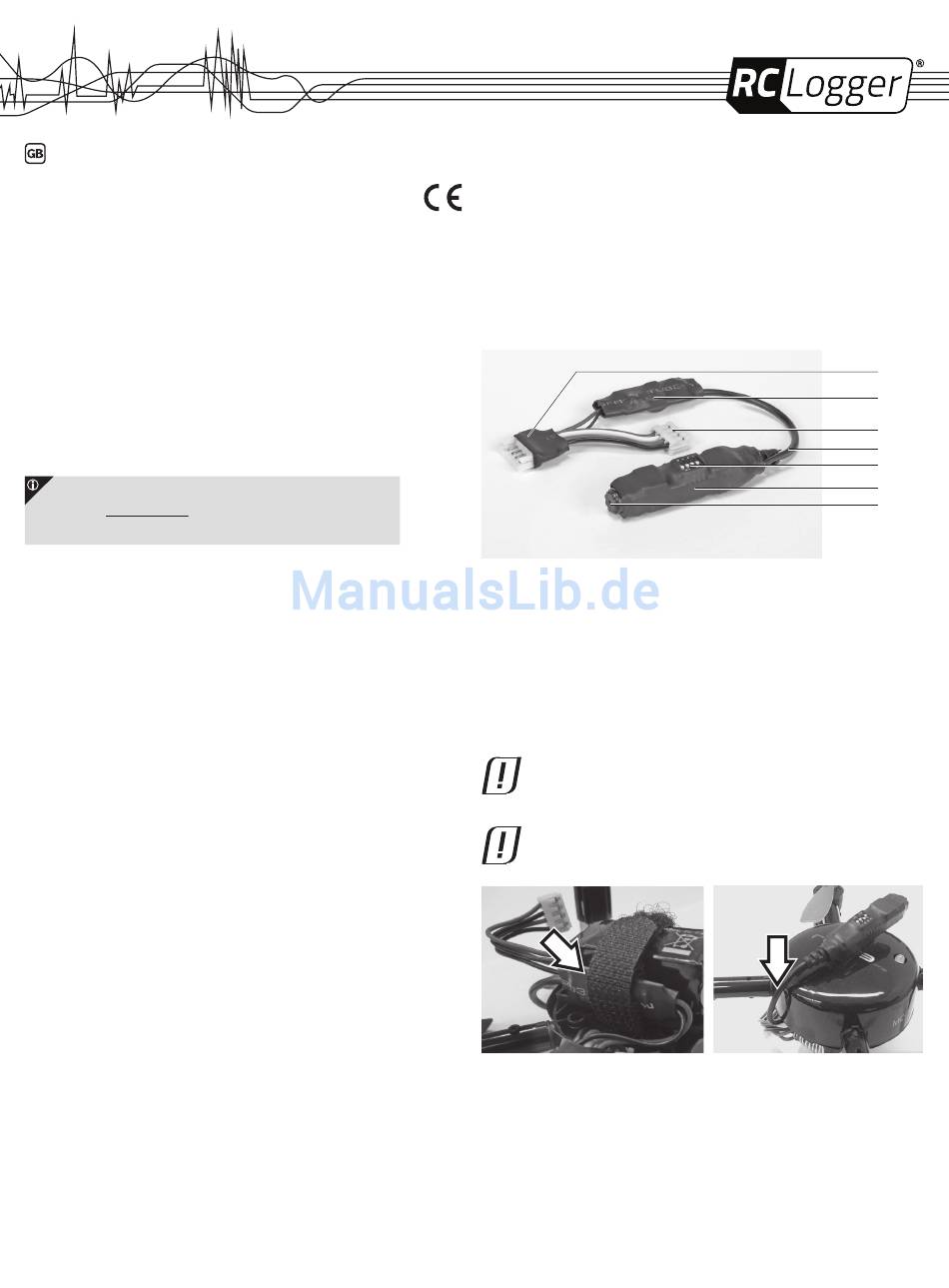

5. oPeRatINg eleMeNts
1 Female connector (Connects to "RC EYE One S" battery)
2 Power board
3 Male connector (Connects to "RC EYE One S")
4 Antenna
5 Dip switches
6 Main camera
7 Camera lens
Not shown: Double sided tape
6. MouNtINg the CaMeRa
the camera and its electronis components are very delicate. do not use sharp
objects, such as knives or pliers to handle the camera. any defects to electric
cables may result in short circuits and damage the camera. do not pull the
electric cables!
the camera Must be mounted securely at all times. an improperly mounted
camera can damage not only the camera but also your "RC eye one s".
Fig. 1
1. Carefully slide the camera out of the antistatic bag.
2. Put your "RC EYE One S" quad-copter on a clean and stable surface.
3. Connect the male connector (3) of the camera to the female input port on the "RC EYE One S".
4. Put the battery in place as usual. Secure the battery including, power board (2) and camera
cables with the Velcro
®
cannot be caught and entangled while the rotors are in motion. Do not establish the power
connection yet!
5. Clean the canopy top with a damp cloth and little diswashing liquid. Take care that no water
enters the product! Dry the canopy top.
Fig. 2
strap (see Fig. 1). attention! It is very important to ensure the cables
1
2
3
4
5
6
7
