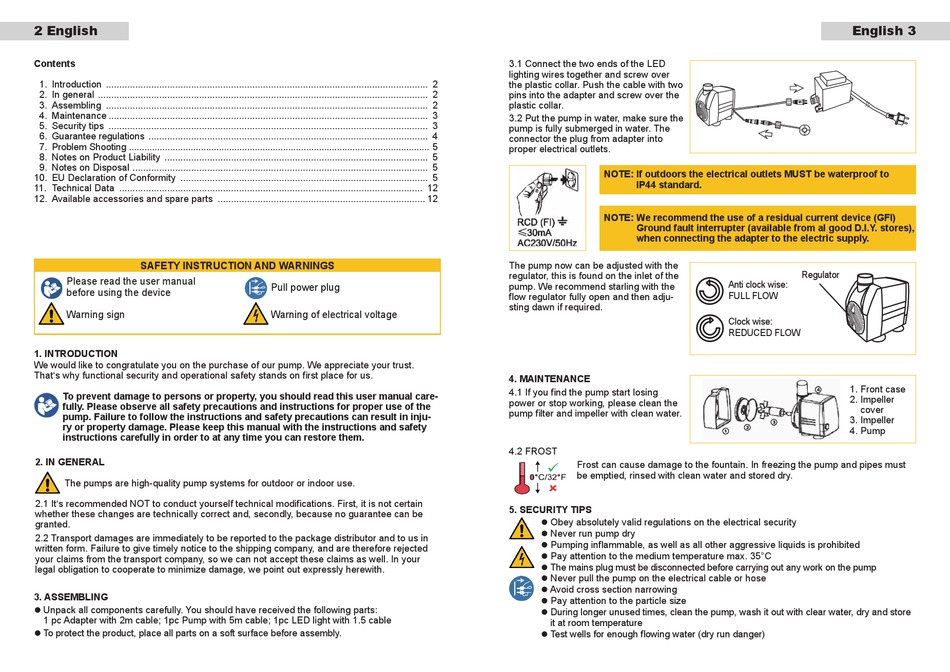

2 English
contents
1. Introduction ......................................................................................................................... 2
2. In general ............................................................................................................................ 2
3. Assembling ......................................................................................................................... 2
4. Maintenance ........................................................................................................................ 3
5. Security tips ........................................................................................................................ 3
6. Guarantee regulations ......................................................................................................... 4
7. Problem Shooting ..................................................................................................................... 5
8. Notes on Product Liability ................................................................................................... 5
9. Notes on Disposal ............................................................................................................... 5
10. EU Declaration of Conformity ............................................................................................. 5
11. Technical Data .................................................................................................................. 12
12. Available accessories and spare parts .............................................................................. 12
Safety inStruction and warninGS
Please read the user manual
before using the device
Warning sign
1. introduction
We would like to congratulate you on the purchase of our pump. We appreciate your trust.
That's why functional security and operational safety stands on fi rst place for us.
to prevent damage to persons or property, you should read this user manual care-
fully. please observe all safety precautions and instructions for proper use of the
pump. failure to follow the instructions and safety precautions can result in inju-
ry or property damage. please keep this manual with the instructions and safety
instructions carefully in order to at any time you can restore them.
2. in General
The pumps are high-quality pump systems for outdoor or indoor use.
2.1 It's recommended NOT to conduct yourself technical modifi cations. First, it is not certain
whether these changes are technically correct and, secondly, because no guarantee can be
granted.
2.2 Transport damages are immediately to be reported to the package distributor and to us in
written form. Failure to give timely notice to the shipping company, and are therefore rejected
your claims from the transport company, so we can not accept these claims as well. In your
legal obligation to cooperate to minimize damage, we point out expressly herewith.
3. aSSemblinG
l Unpack all components carefully. You should have received the following parts:
1 pc Adapter with 2m cable; 1pc Pump with 5m cable; 1pc LED light with 1.5 cable
l To protect the product, place all parts on a soft surface before assembly.
Pull power plug
Warning of electrical voltage
3.1 Connect the two ends of the LED
lighting wires together and screw over
the plastic collar. Push the cable with two
pins into the adapter and screw over the
plastic collar.
3.2 Put the pump in water, make sure the
pump is fully submerged in water. The
connector the plug from adapter into
proper electrical outlets.
note: if outdoors the electrical outlets muSt be waterproof to
ip44 standard.
note: we recommend the use of a residual current device (Gfi)
Ground fault interrupter (available from al good d.i.y. stores),
when connecting the adapter to the electric supply.
The pump now can be adjusted with the
regulator, this is found on the inlet of the
pump. We recommend starling with the
fl ow regulator fully open and then adju-
sting dawn if required.
4. maintenance
4.1 If you fi nd the pump start losing
power or stop working, please clean the
pump fi lter and impeller with clean water.
4.2 FROST
Frost can cause damage to the fountain. In freezing the pump and pipes must
be emptied, rinsed with clean water and stored dry.
5. Security tipS
l Obey absolutely valid regulations on the electrical security
l Never run pump dry
l Pumping infl ammable, as well as all other aggressive liquids is prohibited
l Pay attention to the medium temperature max. 35°C
l The mains plug must be disconnected before carrying out any work on the pump
l Never pull the pump on the electrical cable or hose
l Avoid cross section narrowing
l Pay attention to the particle size
l During longer unused times, clean the pump, wash it out with clear water, dry and store
it at room temperature
l Test wells for enough fl owing water (dry run danger)
English 3
Regulator
Anti clock wise:
FULL FLOW
Clock wise:
REDUCED FLOW
1. Front case
2. Impeller
cover
3. Impeller
4. Pump
