Using the RingFlash 250
7. STOP button with LED
8. Sliding switch for melody selection for the
signal alarm in respect of the connected
telephone
9. Sliding switch for melody selection for the
signal alarm in respect of the connected
doorbell pick-up
10. Telephone line connection port
11. Power adapter plug connection port
12. Telephone connection port
13. Vibration pad connection port (option)
14. Sliding control for the signal alarm volume
15. Sliding switch to select type of signal
alarm
22
Connecting the base station

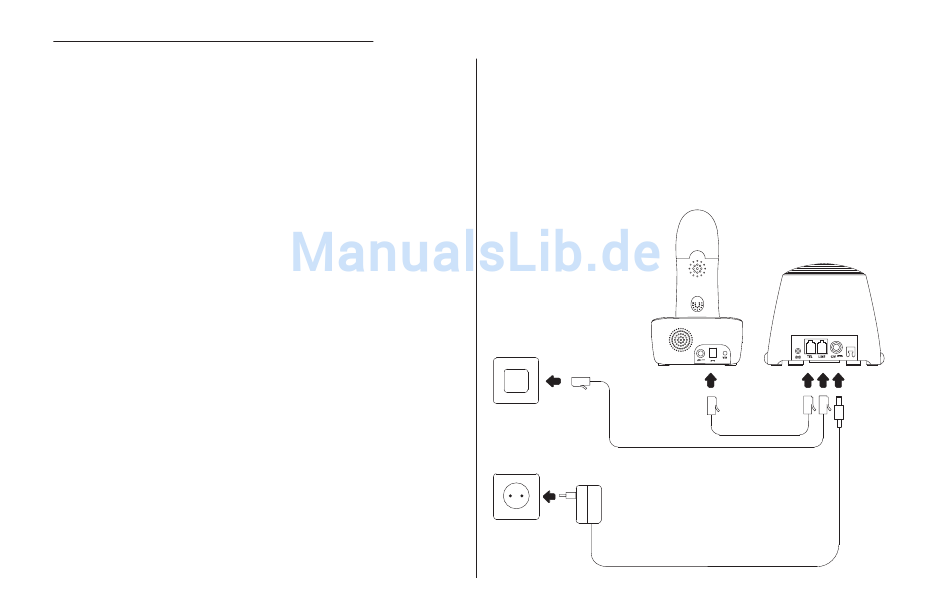

Connect the RingFlash 250 base station
as illustrated in the diagram. For reasons
of safety, only use the power adapter plug
and telephone connection cable contai-
ned in the material supplied.
Telephone
line socket
Power outlet
