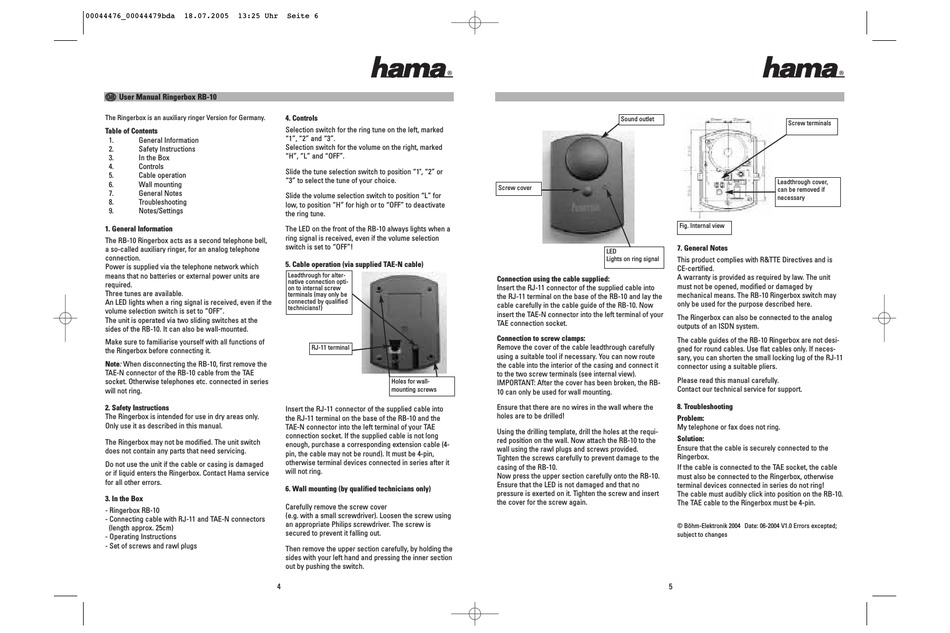

L User Manual Ringerbox RB-10
The Ringerbox is an auxiliary ringer Version for Germany.
Table of Contents
1. General Information
2. Safety Instructions
3. In the Box
4. Controls
5. Cable operation
6. Wall mounting
7. General Notes
8. Troubleshooting
9. Notes/Settings
1. General Information
The RB-10 Ringerbox acts as a second telephone bell,
a so-called auxiliary ringer, for an analog telephone
connection.
Power is supplied via the telephone network which
means that no batteries or external power units are
required.
Three tunes are available.
An LED lights when a ring signal is received, even if the
volume selection switch is set to "OFF".
The unit is operated via two sliding switches at the
sides of the RB-10. It can also be wall-mounted.
Make sure to familiarise yourself with all functions of
the Ringerbox before connecting it.
Note: When disconnecting the RB-10, first remove the
TAE-N connector of the RB-10 cable from the TAE
socket. Otherwise telephones etc. connected in series
will not ring.
2. Safety Instructions
The Ringerbox is intended for use in dry areas only.
Only use it as described in this manual.
The Ringerbox may not be modified. The unit switch
does not contain any parts that need servicing.
Do not use the unit if the cable or casing is damaged
or if liquid enters the Ringerbox. Contact Hama service
for all other errors.
3. In the Box
- Ringerbox RB-10
- Connecting cable with RJ-11 and TAE-N connectors
(length approx. 25cm)
- Operating Instructions
- Set of screws and rawl plugs
Seite 6
4. Controls
Selection switch for the ring tune on the left, marked
"1", "2" and "3".
Selection switch for the volume on the right, marked
"H", "L" and "OFF".
Slide the tune selection switch to position "1", "2" or
"3" to select the tune of your choice.
Slide the volume selection switch to position "L" for
low, to position "H" for high or to "OFF" to deactivate
the ring tune.
The LED on the front of the RB-10 always lights when a
ring signal is received, even if the volume selection
switch is set to "OFF"!
5. Cable operation (via supplied TAE-N cable)
Leadthrough for alter-
native connection opti-
on to internal screw
terminals (may only be
connected by qualified
technicians!)
RJ-11 terminal
Holes for wall-
mounting screws
Insert the RJ-11 connector of the supplied cable into
the RJ-11 terminal on the base of the RB-10 and the
TAE-N connector into the left terminal of your TAE
connection socket. If the supplied cable is not long
enough, purchase a corresponding extension cable (4-
pin, the cable may not be round). It must be 4-pin,
otherwise terminal devices connected in series after it
will not ring.
6. Wall mounting (by qualified technicians only)
Carefully remove the screw cover
(e.g. with a small screwdriver). Loosen the screw using
an appropriate Philips screwdriver. The screw is
secured to prevent it falling out.
Then remove the upper section carefully, by holding the
sides with your left hand and pressing the inner section
out by pushing the switch.
4
Sound outlet
Screw cover
LED
Lights on ring signal
Connection using the cable supplied:
Insert the RJ-11 connector of the supplied cable into
the RJ-11 terminal on the base of the RB-10 and lay the
cable carefully in the cable guide of the RB-10. Now
insert the TAE-N connector into the left terminal of your
TAE connection socket.
Connection to screw clamps:
Remove the cover of the cable leadthrough carefully
using a suitable tool if necessary. You can now route
the cable into the interior of the casing and connect it
to the two screw terminals (see internal view).
IMPORTANT: After the cover has been broken, the RB-
10 can only be used for wall mounting.
Ensure that there are no wires in the wall where the
holes are to be drilled!
Using the drilling template, drill the holes at the requi-
red position on the wall. Now attach the RB-10 to the
wall using the rawl plugs and screws provided.
Tighten the screws carefully to prevent damage to the
casing of the RB-10.
Now press the upper section carefully onto the RB-10.
Ensure that the LED is not damaged and that no
pressure is exerted on it. Tighten the screw and insert
the cover for the screw again.
5
Screw terminals
Leadthrough cover,
can be removed if
necessary
Fig. Internal view
7. General Notes
This product complies with R&TTE Directives and is
CE-certified.
A warranty is provided as required by law. The unit
must not be opened, modified or damaged by
mechanical means. The RB-10 Ringerbox switch may
only be used for the purpose described here.
The Ringerbox can also be connected to the analog
outputs of an ISDN system.
The cable guides of the RB-10 Ringerbox are not desi-
gned for round cables. Use flat cables only. If neces-
sary, you can shorten the small locking lug of the RJ-11
connector using a suitable pliers.
Please read this manual carefully.
Contact our technical service for support.
8. Troubleshooting
Problem:
My telephone or fax does not ring.
Solution:
Ensure that the cable is securely connected to the
Ringerbox.
If the cable is connected to the TAE socket, the cable
must also be connected to the Ringerbox, otherwise
terminal devices connected in series do not ring!
The cable must audibly click into position on the RB-10.
The TAE cable to the Ringerbox must be 4-pin.
© B hm-Elektronik 2004 Date: 06-2004 V1.0 Errors excepted;
