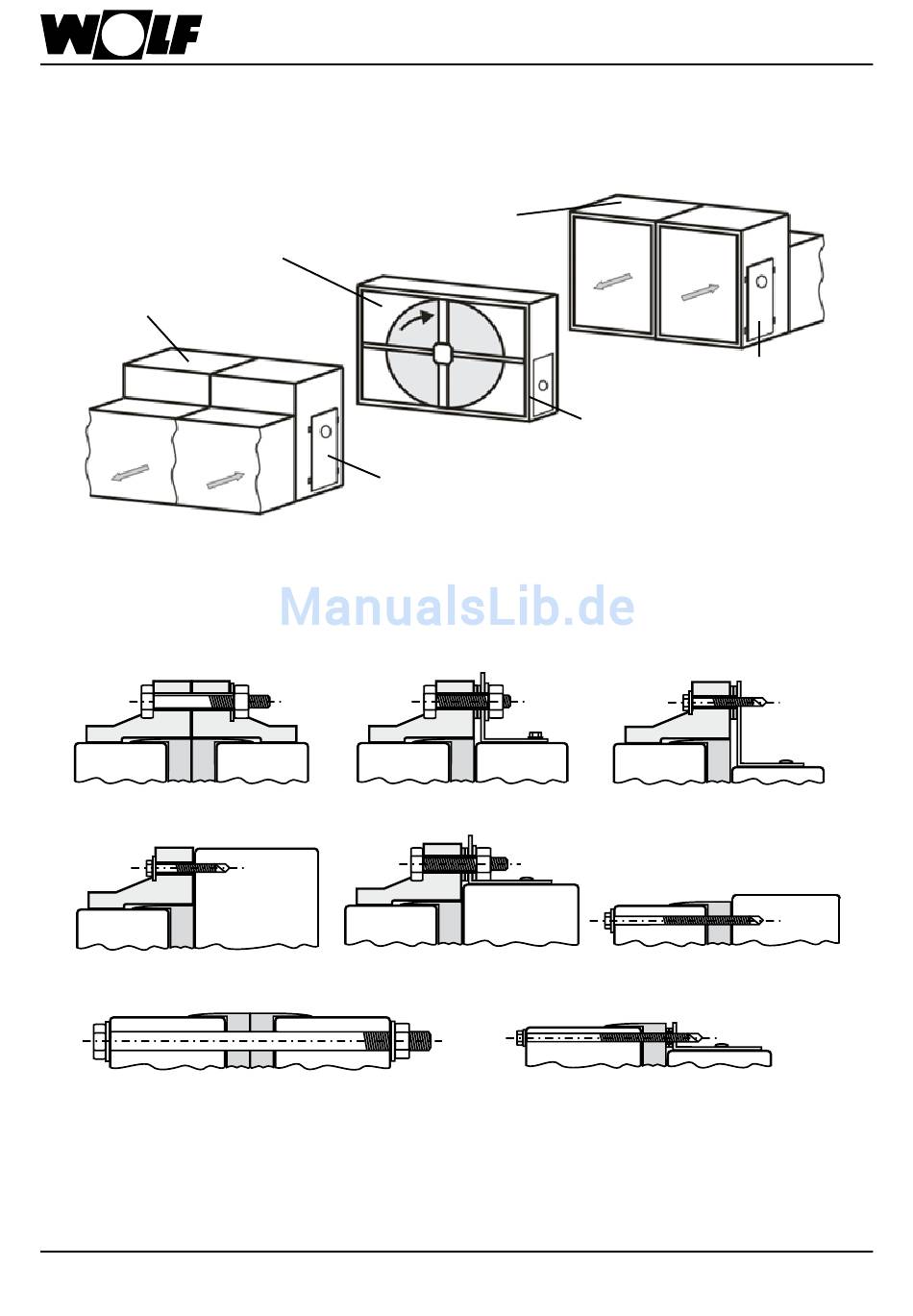

Unit example:
Supply air and extract air side by side with counter flow operation
Warning: Considerable performance losses during parallel flow operation and higher danger of contamination of the rotor accumulator
circulating heat
exchanger
KG disperse section
exhaust air
fresh air
Unit connection options
3061382_201503
Circulating heat exchanger RWT
KG diffusor section
KG diffusor section
extract air
supply air
KG disperse section
driving motor
