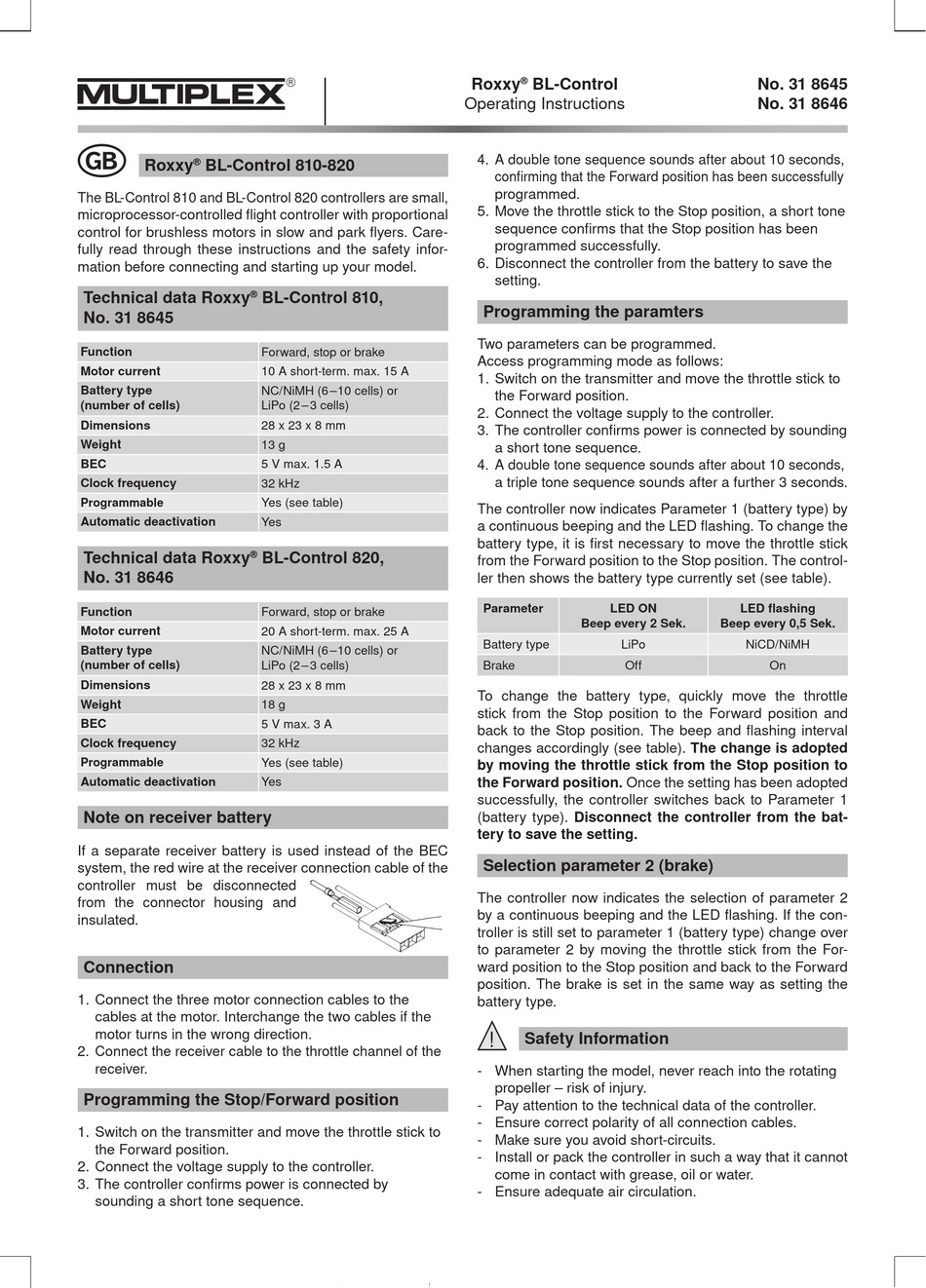

Roxxy

BL-Control 810-820

The BL-Control 810 and BL-Control 820 controllers are small,

microprocessor-controlled flight controller with proportional

control for brushless motors in slow and park flyers. Care-

fully read through these instructions and the safety infor-

mation before connecting and starting up your model.

Technical data Roxxy

No. 31 8645

Function

Motor current

Battery type

(number of cells)

Dimensions

Weight

BEC

Clock frequency

Programmable

Automatic deactivation

Technical data Roxxy

No. 31 8646

Function

Motor current

Battery type

(number of cells)

Dimensions

Weight

BEC

Clock frequency

Programmable

Automatic deactivation

Note on receiver battery

If a separate receiver battery is used instead of the BEC

system, the red wire at the receiver connection cable of the

controller must be disconnected

from the connector housing and

insulated.

Connection

1. Connect the three motor connection cables to the

cables at the motor. Interchange the two cables if the

motor turns in the wrong direction.

2. Connect the receiver cable to the throttle channel of the

receiver.

Programming the Stop/Forward position

1. Switch on the transmitter and move the throttle stick to

the Forward position.

2. Connect the voltage supply to the controller.

3. The controller confirms power is connected by

sounding a short tone sequence.

BL-Control 810,

Forward, stop or brake

10 A short-term. max. 15 A

NC/NiMH (6 –10 cells) or

LiPo (2 – 3 cells)

28 x 23 x 8 mm

13 g

5 V max. 1.5 A

32 kHz

Yes (see table)

Yes

BL-Control 820,

Forward, stop or brake

20 A short-term. max. 25 A

NC/NiMH (6 –10 cells) or

LiPo (2 – 3 cells)

28 x 23 x 8 mm

18 g

5 V max. 3 A

32 kHz

Yes (see table)

Yes

Roxxy

BL-Control

Operating Instructions

4. A double tone sequence sounds after about 10 seconds,

confirming that the Forward position has been successfully

programmed.

5. Move the throttle stick to the Stop position, a short tone

sequence confirms that the Stop position has been

programmed successfully.

6. Disconnect the controller from the battery to save the

setting.

Programming the paramters

Two parameters can be programmed.

Access programming mode as follows:

1. Switch on the transmitter and move the throttle stick to

the Forward position.

2. Connect the voltage supply to the controller.

3. The controller confirms power is connected by sounding

a short tone sequence.

4. A double tone sequence sounds after about 10 seconds,

a triple tone sequence sounds after a further 3 seconds.

The controller now indicates Parameter 1 (battery type) by

a continuous beeping and the LED flashing. To change the

battery type, it is first necessary to move the throttle stick

from the Forward position to the Stop position. The control-

ler then shows the battery type currently set (see table).

Parameter

LED ON

Beep every 2 Sek.

Battery type

LiPo

Brake

Off

To change the battery type, quickly move the throttle

stick from the Stop position to the Forward position and

back to the Stop position. The beep and flashing interval

changes accordingly (see table). The change is adopted

by moving the throttle stick from the Stop position to

the Forward position. Once the setting has been adopted

successfully, the controller switches back to Parameter 1

(battery type). Disconnect the controller from the bat-

tery to save the setting.

Selection parameter 2 (brake)

The controller now indicates the selection of parameter 2

by a continuous beeping and the LED flashing. If the con-

troller is still set to parameter 1 (battery type) change over

to parameter 2 by moving the throttle stick from the For-

ward position to the Stop position and back to the Forward

position. The brake is set in the same way as setting the

battery type.
