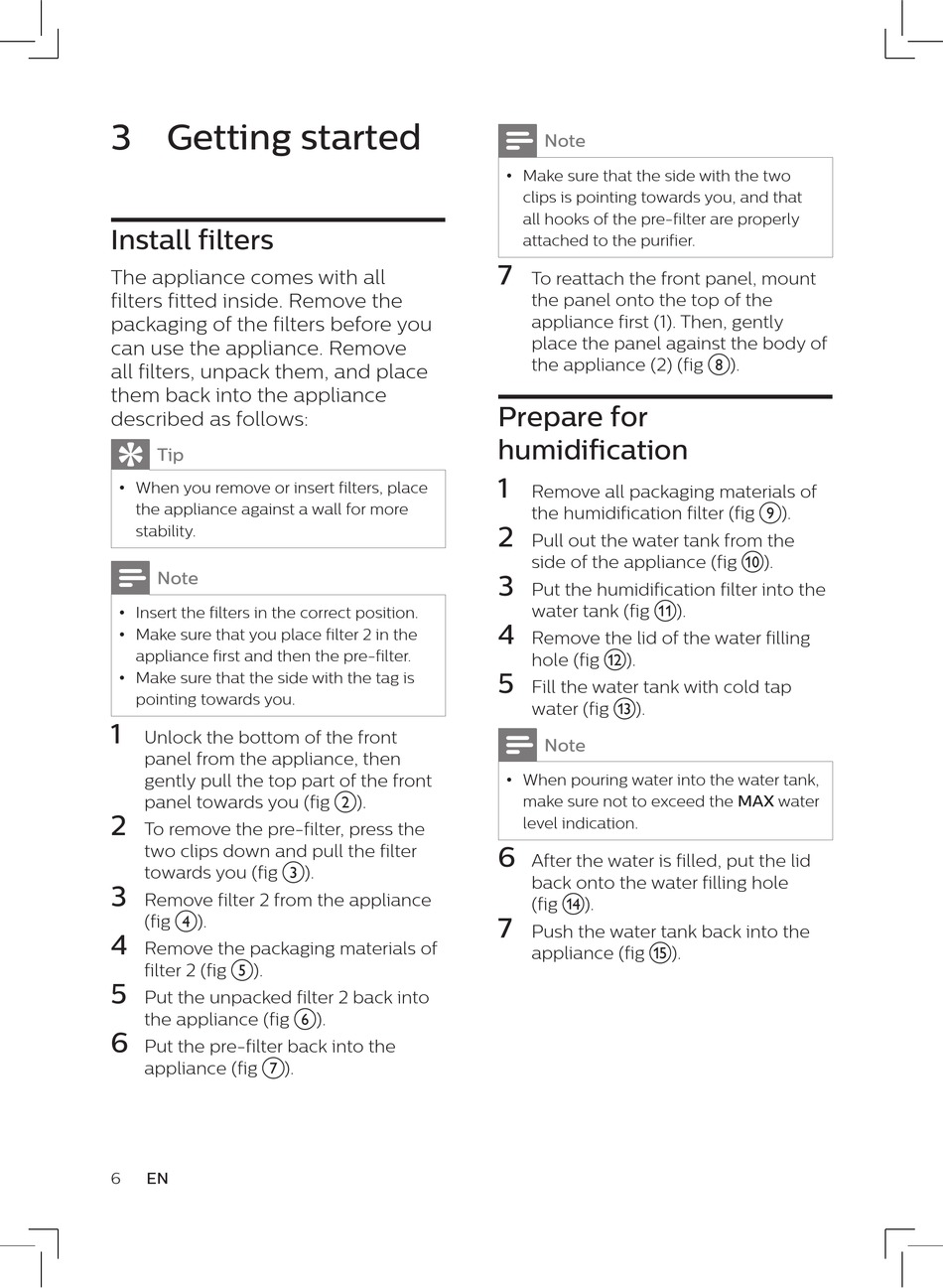

3 Getting started

Install filters

The appliance comes with all
filters fitted inside. Remove the
packaging of the filters before you
can use the appliance. Remove
all filters, unpack them, and place
them back into the appliance
described as follows:
Tip
•
When you remove or insert filters, place
the appliance against a wall for more
stability.
Note
•
Insert the filters in the correct position.
•
Make sure that you place filter 2 in the
appliance first and then the pre-filter.
•
Make sure that the side with the tag is
pointing towards you.
1
Unlock the bottom of the front
panel from the appliance, then
gently pull the top part of the front
panel towards you (fig b).
2
To remove the pre-filter, press the
two clips down and pull the filter
towards you (fig c).
3
Remove filter 2 from the appliance
(fig d).
4
Remove the packaging materials of
filter 2 (fig e).
5
Put the unpacked filter 2 back into
the appliance (fig f).
6
Put the pre-filter back into the
appliance (fig g).
6 EN
Note
•
Make sure that the side with the two
clips is pointing towards you, and that
all hooks of the pre-filter are properly
attached to the purifier.
7
To reattach the front panel, mount
the panel onto the top of the
appliance first (1). Then, gently
place the panel against the body of
the appliance (2) (fig h).
Prepare for
humidification
1
Remove all packaging materials of
the humidification filter (fig i).
2
Pull out the water tank from the
side of the appliance (fig j).
3
Put the humidification filter into the
water tank (fig k).
4
Remove the lid of the water filling
hole (fig l).
5
Fill the water tank with cold tap
water (fig m).
Note
•
When pouring water into the water tank,
make sure not to exceed the MAX water
level indication.
6
After the water is filled, put the lid
back onto the water filling hole
(fig n).
7
Push the water tank back into the
appliance (fig o).
