DIGITAL MATRIX LOUDSPEAKER CONTROLLER
96
kHz
NOVA DC 8000
V. 1.1.0
DIGITAL MATRIX
SPEAKER PROCESSOR
HIGH DEFINITION
32 BIT HIGH PERFORMANCE DSP
DC 8000
Digital Matrix Loudspeaker Management System
with
TEXAS INSTRUMENTS
and
BURR BROWN
4-in / 8-out
©
Processors
©
AD/DA Converters
4
INPUTS
8
OUTPUTS
FREE
ROUTING
RS 485 NET
Werbung
Inhaltsverzeichnis
Verwandte Anleitungen für Nova DC 8000
Inhaltszusammenfassung für Nova DC 8000

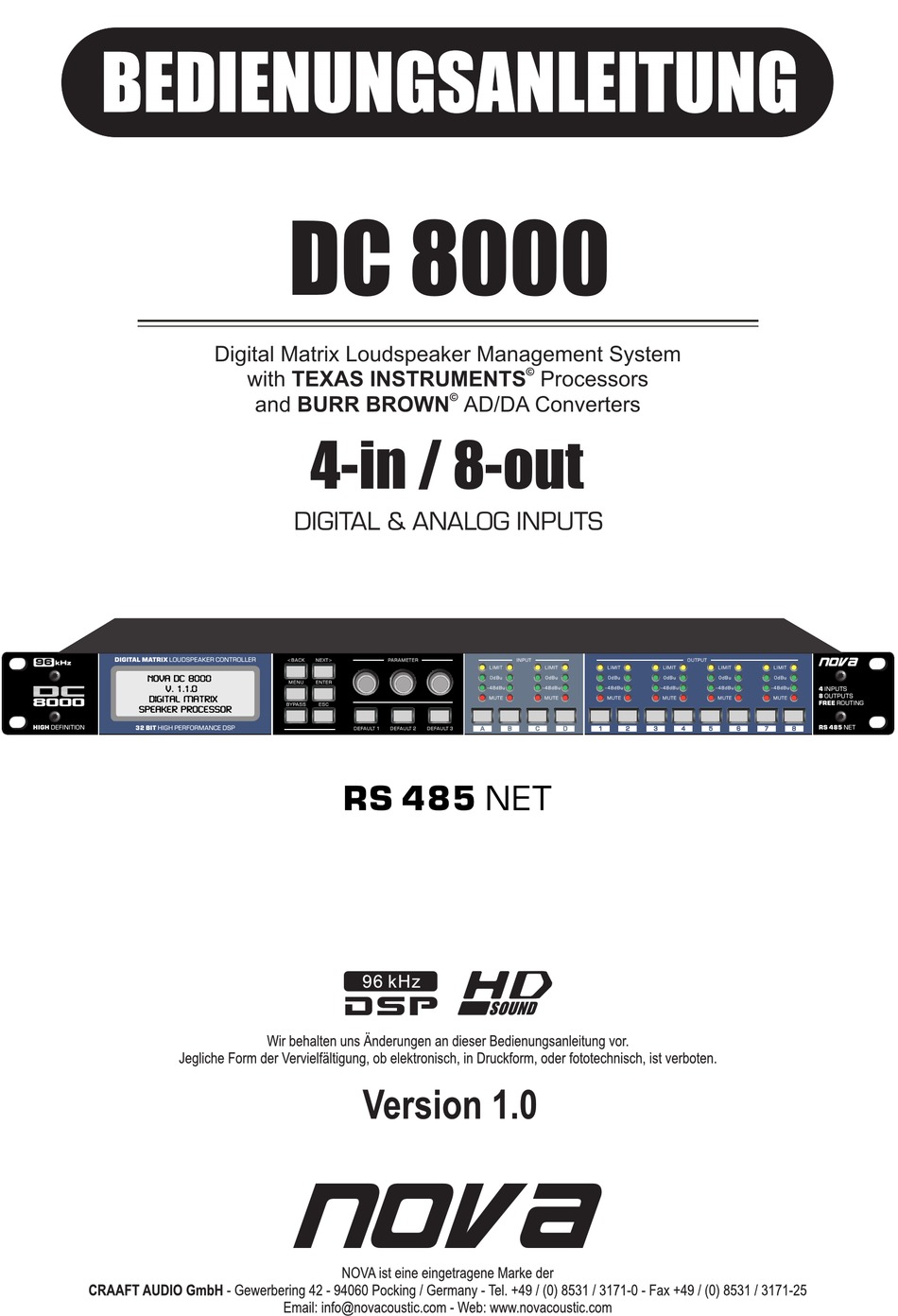

- Seite 1 Digital Matrix Loudspeaker Management System © with TEXAS INSTRUMENTS Processors © BURR BROWN AD/DA Converters 4-in / 8-out DIGITAL MATRIX LOUDSPEAKER CONTROLLER NOVA DC 8000 V. 1.1.0 INPUTS OUTPUTS DIGITAL MATRIX FREE ROUTING SPEAKER PROCESSOR HIGH DEFINITION 32 BIT HIGH PERFORMANCE DSP...
- Seite 3 DC 8000...
- Seite 4 DC 8000...
-
Seite 5: Inhaltsverzeichnis
DC 8000 1. FRONTPANEL UND BEDIENELEMENTE ........................................2. RÜCKSEITE 3. INPUT PARAMETER ............................................. 3.1. Input Name ........................3.2. Input Delay ........................ 3.3. Input Polarity ........................3.4. Input Gain ........................3.5. Input EQ ........................3.6. Noise Gate ....................... 4. OUTPUT PARAMETER ....................... -
Seite 6: Frontpanel Und Bedienelemente

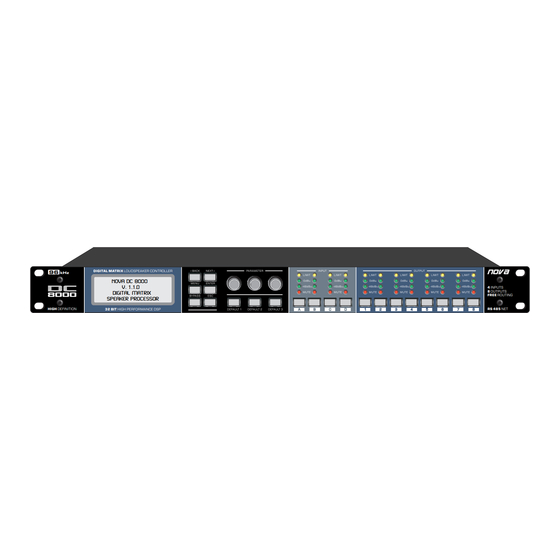

DC 8000 1. Frontpanel Das Frontpanel beinhaltet alle relevanten Taster, Regler und Displays zur einfachen Bedienung und Programmierung des Gerätes ohne PC-Software. DIGITAL MATRIX LOUDSPEAKER CONTROLLER NOVA DC 8000 V. 1.1.0 INPUTS OUTPUTS DIGITAL MATRIX FREE ROUTING SPEAKER PROCESSOR HIGH DEFINITION... -
Seite 7: Input Parameter
DC 8000 3. Input-Parameter 3.3. Input Polarity Die Polarität des Eingangssignals an den Eingängen kann Um in das Menü für die Parameter der Eingänge zu gelangen, auf die Werte normal [ + ] oder invertiert [ - ] eingestellt werden. Der drücken Sie die Taste des jeweiligen Eingangs... -
Seite 8: Noise Gate
DC 8000 3.6. Noise Gate Je nach Filtermodus zeigt das Display unterschiedliche Parameter an. Ebenso übernehmen dabei die Parameter-Drehregler unterschiedliche Pro Eingangskanal steht ein [Noise Gate] zur Verfügung. Funktionen. Folgende Anzeigen sind je nach Auswahl des Filtermodus Mit dem linken Parameter-Drehregler kann diese Funktion aktiviert möglich:... -
Seite 9: Output Parameter
DC 8000 4. Output-Parameter Um in das Menü für die Parameter der Ausgänge zu gelangen, Output 1:Sub_LEFT drücken Sie die Taste des jeweiligen Eingangs ] [2] [...] oder Source: für mindestens 3 Sekunden. Abb. 13 [<BACK] Die Menüseiten können durch Drücken der Tasten bzw. -
Seite 10: Hpf High Pass Filter In Den Ausgängen
DC 8000 4.8. Output EQ Für jeden der Ausgänge stehen jeweils 6 Equalizer zur Output 1:Sub_LEFT Verfügung. Die Funktionsweise eines jeden der 6 Equalizer kann aus Delay: 70.8136mS folgenden Filtertypen individuell und unabhängig ausgewählt werden. Abb. 16 24.5015Meter Wählen Sie zunächst pro Equalizer... -
Seite 11: Output Limiter/Compressor
DC 8000 4.9. Output Limiter / Compressor Je nach Filtermodus zeigt das Display unterschiedliche Parameter an. Ebenso übernehmen dabei die Parameter-Drehregler unterschiedliche Unter dem Menüpunkt [Output Limiter / Compressor] wird pro Funktionen. Folgende Anzeigen sind je nach Auswahl des Filtermodus Ausgangskanal [1] bis [8] zunächst der Betriebsmodus des... - Seite 12 0,3 ms bis 1 ms / in 1 ms Schritten im von Bereich 1 ms bis 100 ms) Alle Angaben ohne Gewähr. Wir übernehmen keinerlei Haftung für Schäden, die durch unsachgemäße Einstellungen am DC 8000 sowie aller angeschlossenen Peripherie inklusive Lautsprecher und Verstärker entstehen können.
- Seite 13 DC 8000 Die zusätzlichen Einstellungen für den Betriebsmodus [Compressor] erlauben eine automatische oder manuelle Regelung der Parameter [Cliplim] [Ratio] Compressor Modus: [Auto] (siehe Abb. 27) Output 1:Sub_LEFT Compressor: uto Abb. 27 Cliplim:3.2dB Above Ratio:1:16 Auto/ (Cliplim) (Ratio) Manual Im automatischen Modus werden die Parameter...
-
Seite 14: Funktionen Und Einstellungen
===XOver SubMenu==== >Load Program Nach erfolgreichem Laden des Presets wechselt der DC8000 wieder Abb. 30 in die Begrüßungsanzeige (siehe Abb. 33). Store Program Erase Program NOVA DC 8000 V. 1.1.0 Abb. 33 DIGITAL MATRIX SPEAKER PROCESSOR Auswahl nach oben/ nach unten... -
Seite 15: Preset Speichern
Nach erfolgreichem Speichern des Presets wechselt der DC8000 wieder in die Begrüßungsanzeige (siehe Abb. 37). Drücken Sie noch NICHT (!!!) [ENTER] Taste, da Sie sonst eine Fehlermeldung erhalten (erst Preset-Namen eingeben) NOVA DC 8000 ===Store Program==== V. 1.1.0 Abb. 37 DIGITAL MATRIX 22.Empty Abb. 34... -
Seite 16: Preset Kopieren
DC 8000 5.2. Preset Kopieren [Edit Program] 5.3. Kanal Kopieren [Copy Channel] Drücken Sie zunächst die [MENU] Taste, um in das Hauptmenü der System- Drücken Sie zunächst die [MENU] Taste, um in das Hauptmenü der Einstellungen zu gelangen (siehe Abb. 40). -
Seite 17: Eingangsmodus Einstellen
DC 8000 5.4. Eingangsmodus [Input SubMenu] Achten Sie im Modus [Digital Input] auf die richtige Verkabelung an den Eingängen (siehe Abb. 47). Drücken Sie zunächst die [MENU] Taste, um in das Hauptmenü der System- Einstellungen zu gelangen (siehe Abb. 44). -
Seite 18: Frontpanel Sperren
DC 8000 5.5. Frontpanel Sperren [Security SubMenu] 5.6. Grundeinstellungen [System SubMenu] Drücken Sie zunächst die [MENU] Taste, um in das Hauptmenü der System- Drücken Sie zunächst die [MENU] Taste, um in das Hauptmenü der Einstellungen zu gelangen (siehe Abb. 49). -
Seite 19: Beleuchtung Display
Zum Anschluss eines Computers (PC) an den DC8000 wird ein Standard-RS485 Kabel (mit RJ-45 Steckern an beiden Enden) sowie ein USB/RS-485 Adapter benötigt. Diese Kabel und Adapter sind bei Ihrem NOVA Fachhändler optional erhältlich (siehe Abb. 55). Anschlussbeispiel: USB/RS-485 RS-485 Buchse... -
Seite 20: System Version
Ebenso fungiert der linke Parameter- [Device ID] ... bis 255 Drehregler zur Auswahl der weiteren Menüs. Abb. 56 ==System SubMenu==== Backlight Setup DIGITAL MATRIX LOUDSPEAKER CONTROLLER Abb. 58 NOVA DC 8000 V. 1.1.0 INPUTS DIGITAL MATRIX OUTPUTS FREE ROUTING Device ID Setup... -
Seite 21: Temperatur Einstellen
DC 8000 5.6.5. Temperatur Einstellen [Temperature] 5.6.6. Einheit der Bandbreite Einstellen Drücken Sie zunächst die [MENU] Taste, um in das Hauptmenü der [Filter Display] Systemeinstellungen zu gelangen (siehe Abb. 59). Die Menüseiten können durch Drücken der Tasten [<BACK] bzw. Drücken Sie zunächst die [MENU] Taste, um in das Hauptmenü... -
Seite 22: Default Tasten Sperren
DC 8000 5.6.7. Default Tasten Sperren [Scene Change] 5.6.8. Belegung Default Tasten Drücken Sie zunächst die [MENU] Taste, um in das Hauptmenü der System- [Scene Key Setup] Einstellungen zu gelangen (siehe Abb. 63). Die Menüseiten können durch Drücken der Tasten [<BACK]... -
Seite 23: Benutzung Der Default Tasten
10 Sekunden dauern (siehe Abb. 69). Loading..Abb. 69 Nach erfolgreichem Laden des Presets wechselt der DC8000 wieder in die Begrüßungsanzeige (siehe Abb. 70). NOVA DC 8000 V. 1.1.0 Abb. 70 DIGITAL MATRIX SPEAKER PROCESSOR Seite 22... -
Seite 24: Installation
DC 8000 6. Installation Der DC 8000 kann in ein 19"-Rack eingebaut werden. Verwenden Sie dazu ein belüftetes Rack. Analoge Verkabelung: Benutzen Sie XLR-Kabel mit folgender Anschlussbelegung. Digitale Verkabelung: Herkömmliche XLR-Kabel eignen sich jedoch nicht für eine digitale Verkabelung. Verwenden Sie dazu ausschließlich symmetrische Kabel mit 110 Ohm Wellenwiderstand. -
Seite 25: Signalfluss-Diagramm
DC 8000 8. Signalfluss-Diagramm Seite 24... -
Seite 26: Technische Daten
DC 8000 9. Technische Daten MODEL DC 8000 FUNCTIONS 4 IN/8 OUT Frequency crossovers 6 , 12, 18, 24, 48dB/oct. slope; Butterworth, Bessel, Linkwitz-Riley Parametric EQs, Low-Shelving EQs, Hi-Shelving EQs, Lo-Cut filters, Hi-Cut filters, All-Pass filters Filters Compressors / limiters... - Seite 27 DC 8000...
