DATWYLER CSA Plus 24/8 Installationsanleitung

Werbung

Dätwyler Cables GmbH
Auf der Roos 4-12
65795 Hattersheim
Tel. +49 6190 88 80 0
Fax. +49 6190 88 80 80
Info.cabling.de@datwyler.com
www.datwyler.com
Bitte achten Sie für eine störungsfreie Funktion bei
der Auswahl des Patchkabels auf eine normgerechte
Ausführung der Stecker (gemäß IEC 60603-7-x).

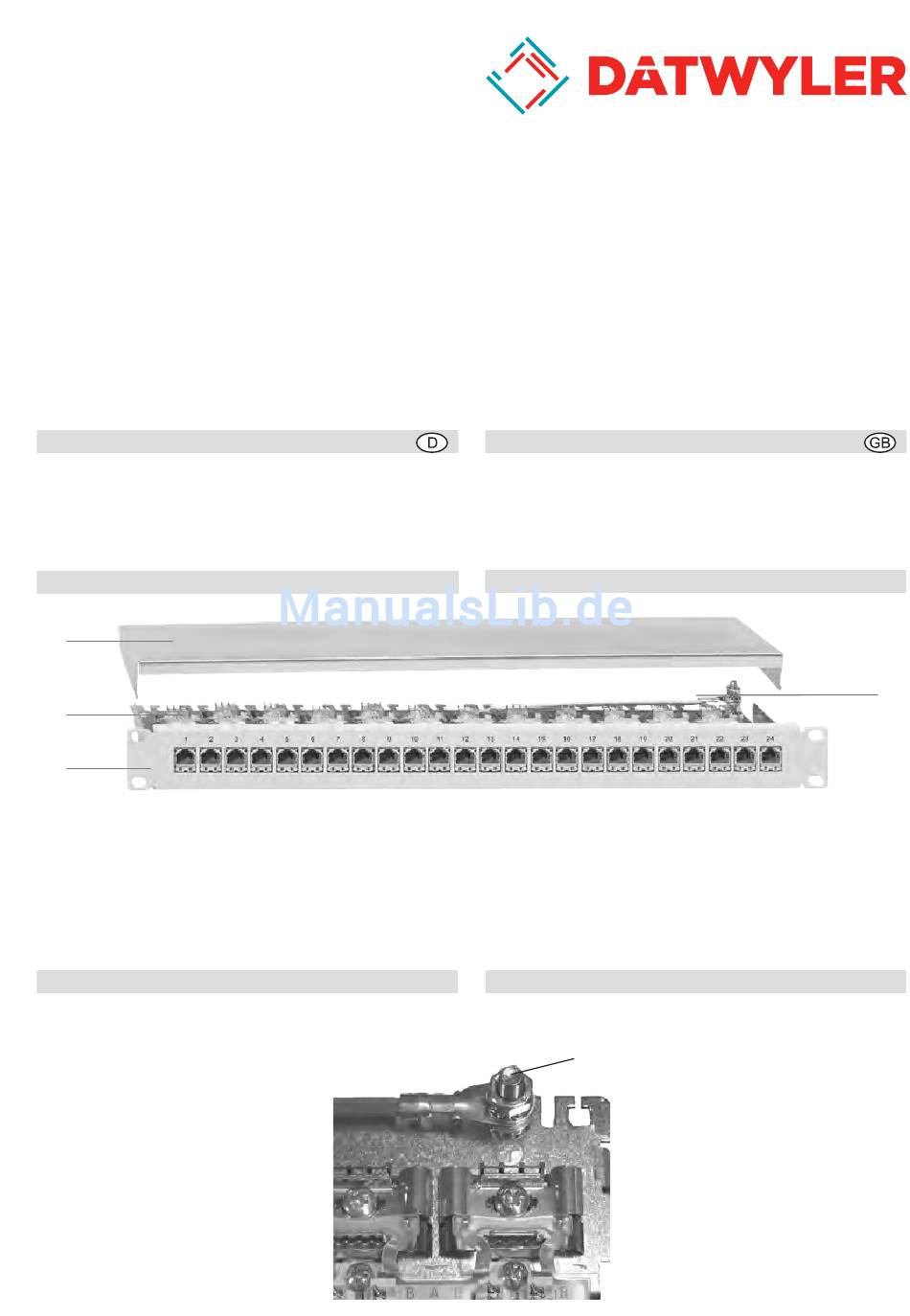

Geräteübersicht
1
2
3
1
Schirmdeckel
2
Unterteil
3
Seitliche Befestigungslaschen
4
Zugentlastungsschellen mit Schirmkontakt
Installation
Erdung
Zur Erdung des Patchpanels am
Verteilerschrank bzw. Gehäuse
benötigen Sie einen Schutzleiter
(Kabel zur Erdung).
Montieren Sie den Gewindebol-
zen links oder rechts am Gehäu-
se!
Verbinden Sie den Schutzlei-
ter am Erdanschluss des Gehäu-
ses (A) mit dem Erdanschluss des
Verteilerschranks.
Patch Panel
CSA Plus 24/8 Cat.6 A (IEC)
Installationsanleitung/Installation Instructions
In order to achieve a trouble-free performance, ple-
ase pay attention to a standard conform design of
the plug (according to IEC 60603-7-x) when selecting
a patch cord.
Overview
1
Shielding cover
2
Bottom part
3
Lateral fastening plates
4
Strain relief clamps with shielding contact
Installation
Grounding
For grounding of the patch panel
A
at the cabinet, respectively, at the
housing a ground wire is needed
(wire for grounding).
Mount the threaded bolt on the
left or on the right side of the
housing!
Use the ground wire to connect
the grounding of the housing (A)
with the cabinet´s grounding.
