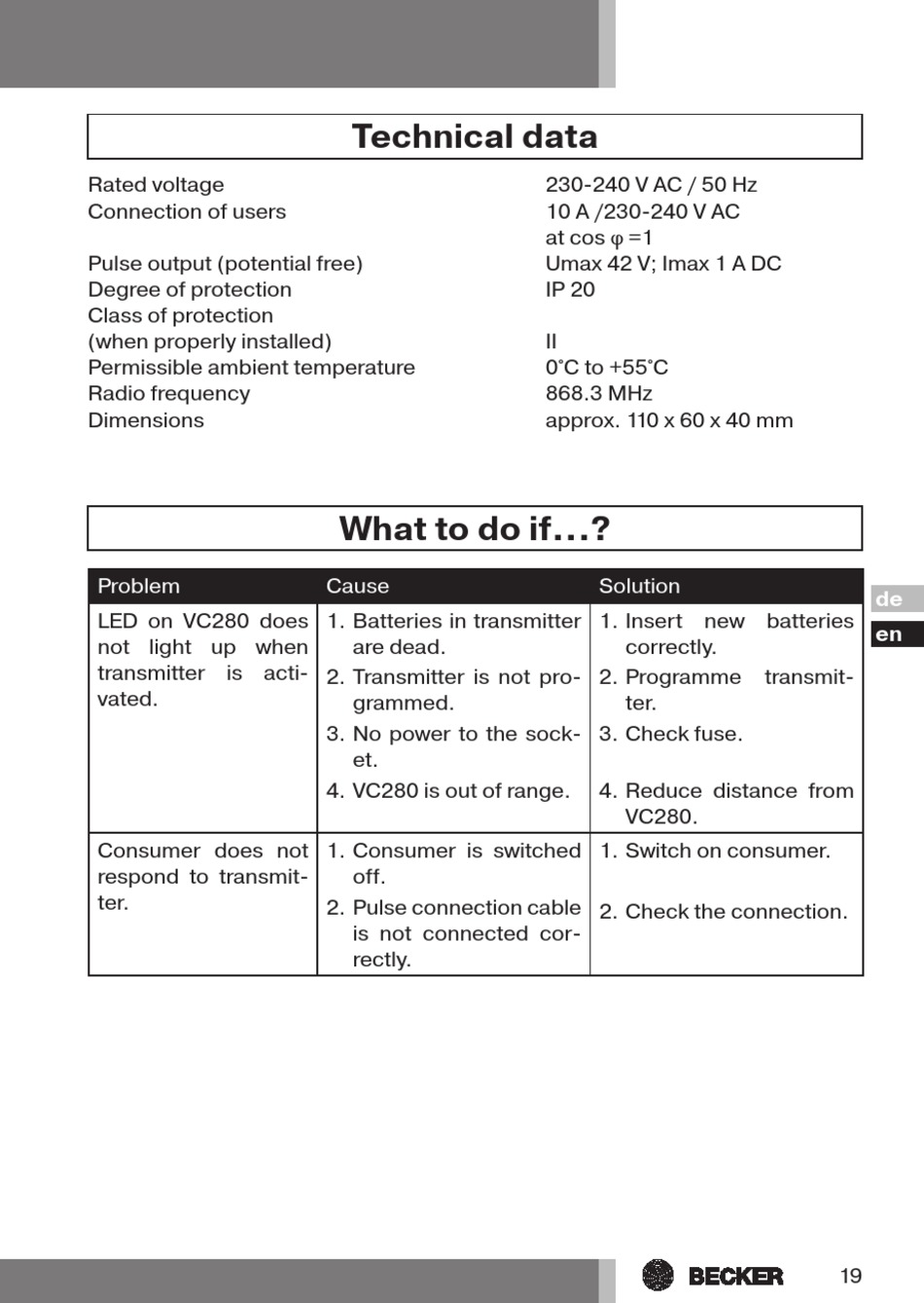

Technical Data; What To Do If - Becker Centronic VarioControl VC280 Montage- Und Betriebsanleitung

Rated voltage
Connection of users
Pulse output (potential free)
Degree of protection
Class of protection
(when properly installed)
Permissible ambient temperature
Radio frequency
Dimensions
Problem
LED on VC280 does
not light up when
transmitter is acti-
vated.
Consumer does not
respond to transmit-
ter.

Technical data

What to do if...?

Cause
1. Batteries in transmitter
are dead.
2. Transmitter is not pro-
grammed.
3. No power to the sock-
et.
4. VC280 is out of range.
1. Consumer is switched
off.
2. Pulse connection cable
is not connected cor-
rectly.
230240 V AC / 50 Hz
10 A /230240 V AC
at cos ϕ =1
Umax 42 V; Imax 1 A DC
IP 20
II
0°C to +55°C
868.3 MHz
approx. 110 x 60 x 40 mm
Solution
1. Insert new batteries
correctly.
2. Programme
ter.
3. Check fuse.
4. Reduce distance from
VC280.
1. Switch on consumer.
2. Check the connection.
de
en
transmit-
19
