axing AVM 5-00 Betriebsanleitung Seite 4

Field of application and product discription
The devices are suited only for distributing radio and television signals in the
house! If the device is used for other purposes, no warranty is given!
The Audio/Video Modulator modulates an A/V signal in a RF channel to
connect to a television set or to feed a small house network.
At the input one may connect a CCD camera, a VCR, a DVD player or a similar
item. In this way a children´s room, a house entrance or another sensitive area
can be monitored.
With easy programming steps, a channel, which is not used for TV-
transmission, can be selected to transmit the signal from the input source.
LED-Anzeige
POWER-Taste + und – Tasten

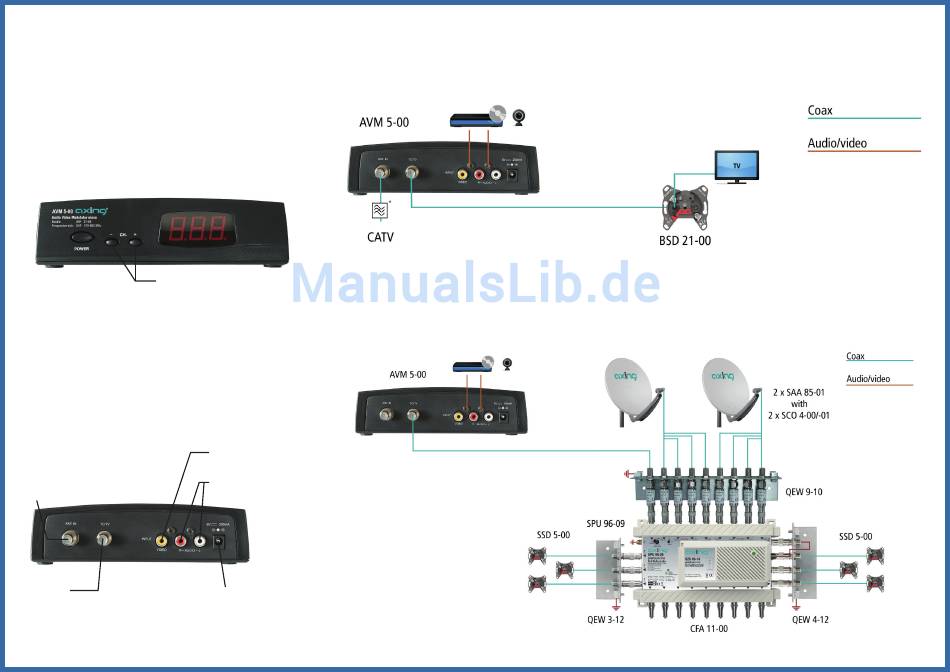

Programming of the output channel
Press POWER to switch on the AVM 5-00. Press + and - at the same time for
3 seconds, until LED starts blinking. Now press „+" or „-" until you reach
the selected channel. The LED stops blinking after about 4 seconds, and
theselected channel is adjusted.
Inputs and Outputs on the rear side:
RF intput (F)
Output TV Connector power supply
Signal feeding:
e.g. through AVM 5-00
e.g. through multiswitch
Video input (Cinch)
Audio inputs (Cinch)
