Keter MANOR 6x8DD Montageanleitung
Vorschau ausblenden Andere Handbücher für MANOR 6x8DD:

Werbung

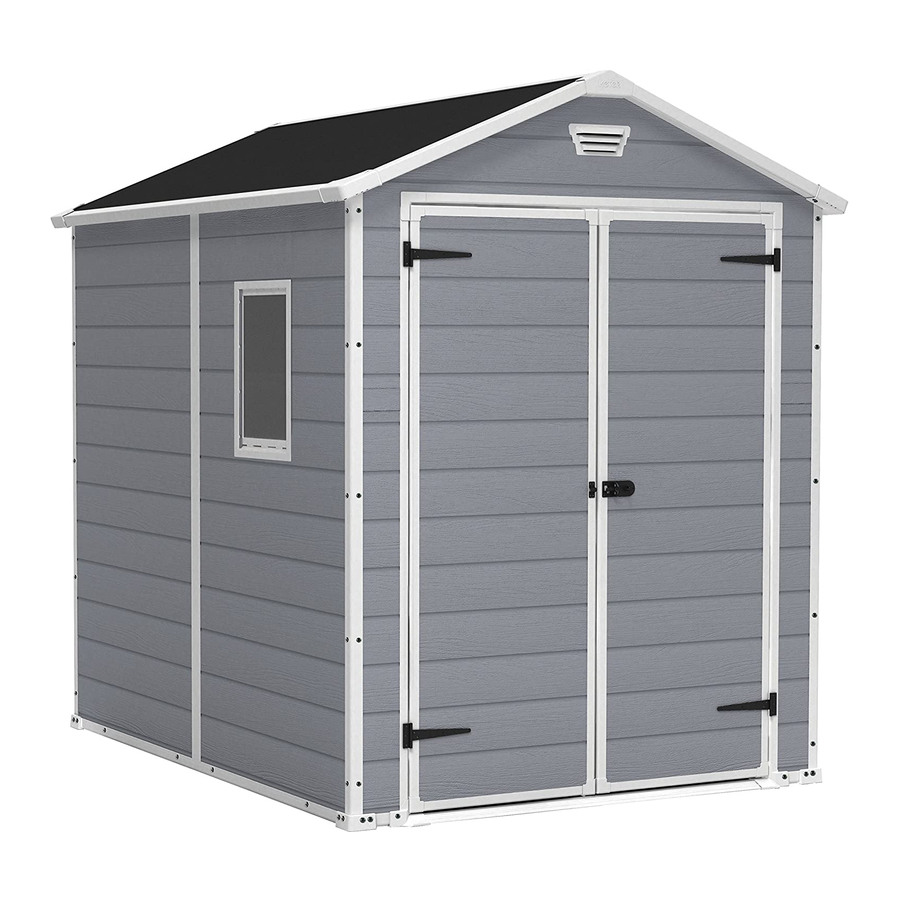

MANOR 6x8DD
ASSEMBLY INSTRUCTIONS | INSTRUCCIONES DE MONTAJE | MONTAGEANLEITUNG | CONSIGNES
DE MONTAGE | SAMLEVEJLEDNING | MONTAGE-VOORSCHRIFTEN | ISTRUZIONI D'ASSEMBLAGGIO
Thank you for your purchase of the Keter shed,
In order to activate your warranty, please enter
WARRANTY
www.keter.com, under storage buildings
ACTIVATION
category and fill in the sheds warranty
activation form.
IF THERE ARE MISSING OR BROKEN PARTS, PLEASE DO NOT RETURN THE PRODUCT TO THE STORE
Please log onto our website, or contact Customer Service at:
S'IL Y A DES PIÈCES MANQUANTES OU CASSÉES, NE RETOURNEZ PAS LE PRODUIT AU MAGASIN
Veuillez visiter notre site Internet, ou contacter notre Service Clientèle:
BITTE
BRINGEN SIE IHR PRODUKT NICHT GLEICH ZUM LADEN ZURÜCK, FALLS TEILE FEHLEN ODER DEFEKT SIND.
Bitte loggen Sie in unsere Website ein oder wenden Sie sich an unseren Kundenservice:
SI HUBIERA ALGUNA PARTE FALTANTE O DAÑADA, NO DEVUELVA EL PRODUCTO A LA TIENDA
Inicie sesión en nuestro sitio en Internet o contáctese con nuestro servicio de atención al cliente:
IN GEVAL
VAN ONTBREKENDE OF GEBROKEN ONDERDELEN NIET HET PRODUCT NAAR DE WINKEL RETOURNEREN.
Ga naar onze website of neem contact op met de Klantenservice:
IN CASO
DI PARTI MANCANTI O DANNEGGIATE, EVITARE DI RESTITUIRE IL PRODOTTO AL NEGOZIO.
Accedere al nostro sito o contattare il Servizio Clienti:
SE HOUVER
PEÇAS EM FALTA OU PARTIDAS, NÃO DEVOLVA O PRODUTO À LOJA.
Entre na nossa página de Internet ou contacte o Serviço de Clientes:
MANOR 6x8DD
2 easy steps to use a QR-code:
1. Download a FREE QR-Code
reader from your smartphone
application site.
2. Scan the QR-Code.
SKU:
17196659 | 17197129
WWW.KETER.COM
US: # 1-888-374-4262
Canada: # 1-800-661-6721
UK: # 0121-5060008
Other European Countries:
# 31-1612-28301

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für Keter MANOR 6x8DD

  • Seite 1 SKU: MANOR 6x8DD 17196659 | 17197129 2 easy steps to use a QR-code: Thank you for your purchase of the Keter shed, In order to activate your warranty, please enter 1. Download a FREE QR-Code WARRANTY www.keter.com, under storage buildings...
  • Seite 3 LEVEL THE GROUND | NIVELLEMENT DU SOL | NIVELE EL SUELO | SORGEN SIE FÜR EINE EBENE GRUNDFLÄCHE MAAK DE GROND WATERPAS | METTERE IL TERRENO A LIVELLO | NIVELAR O SOLO Clear area of stones | Remove all plants, roots and other obstacles | Rake the ground | Make ground level using a long, flat object (e.g.
  • Seite 4 GENERAL PARTS LIST roof parts construction parts walls parts door parts floor parts window parts FLOOR PARTS LIST (go to stage 1) c1a (x1) d1a (x1) 164cm 138cm t (x4) dsl (x1) dsr (x1) c1g (x2) c1d (x2) 217cm 14cm sc15 (X6) s26b (X18) 16mm...
  • Seite 5: Inhaltsverzeichnis

    WALL PARTS LIST (stage 9) fd1b (x2) 17cm x 131cm c1b (x4 ) 186cm bu1a (x1) fu1a (x1) h1a (x1) 184cm h1b (x1) rm (x1) 165cm bd1a (x1) fd1b lm (x1) 169cm x 109cm s1c (x1) fd1b 101cm x 187cm dfl (x1) 179cm s13b (x4) w1c (x3)
  • Seite 6 FLOOR ASSEMBLY r1d (x1) Folded Black Panel Note: the floor folding line must be underneath r1d(x1) 222x169 cm d1a (x1) 138cm Black Panel...
  • Seite 7 dsr (x1) dsl (x1) c1d (x1) 14cm...
  • Seite 8 c1a (x1) c1g(x2) 164 cm 217cm t (x4) Flip the floor upsidedown...
  • Seite 9 sc15 (x6) s26b (x18) 16 mm 26 mm s26b sc15 s26b s26b sc15 sc15 Fully fit the panel inside the porfile Flip the floor upside...
  • Seite 10: Wall Assembly

    WALL ASSEMBLY Choose where do you want to locate the window c1b (x1) w1c (x1) 187x101cm 187cm...
  • Seite 11 bd1a(x1) 169cm x 109cm s26b (X8) 26mm Fully fit the panel inside the porfile h1b (x1) 165cm Fully fit the panel inside the porfile Outside...
  • Seite 12: Bu1A (X1)

    c1b (x1) s26b (x7) 186cm 26mm bu1a (x1) bu1a Fully fit the panel inside the porfile s1c (x1) h1a (x1) c1b (x1) 187x101cm 184cm 186cm Fully fit the panel inside the porfile Outside...
  • Seite 13: W1C (X3)

    s26b (x5) w1c (x1) 26mm 187cm x 101cm Fully fit the panel inside the porfile h1a (x1) w1c (x1) s13b (x2) s26b (x5) 184cm 13mm 187cm x101cm 26mm s13b Outside inside...
  • Seite 14: S13B (X4)

    c1b (x1) s26b (x5) s13b (x2) 186cm 26mm 13mm s13b inside Fully fit the panel inside the porfile FRONT WALL & DOOR FRAME ASSEMBLY s26b (x6) fd1b (x2) 26mm 17cm x 131cm fd1b fd1b...
  • Seite 15: Rm (X1)

    lm (x1) rm (x1) Right Left s26b (x4) fu1a 26mm fu1a...
  • Seite 16: Dfl (X1) 179Cm

    ds2b (x2) 12mm dfl (x1) 179cm dfr (x1) 179cm This hole faces outside and down ds2b ds2b (x8) dfc (x2) 12mm ds2b...
  • Seite 17 s13b (x8) 12mm Fully fit the panel inside the porfile s26b (x18) 26mm...
  • Seite 18: Rc (X4)

    s26b (x12) 26mm Fully fit the panel inside the porfile ROOF ASSEMBLY r1d(x2) rc1(x4) 94x232 cm e1e(x2) 211cm e1g(x4) 84 cm Note: “This side Down” label, must be seen at this stage.
  • Seite 19: Sc15 (X8)

    s26b (x8) 26mm s26b Fully fit the panel inside the porfile a1a (x1) sc15 (x8) 230 cm 16mm Make sure grooves are aligned. Fully fit the panel inside the porfile...
  • Seite 20 Flip the roof panels upsidedown s26b (x24) 26mm s26b...
  • Seite 21 roof assembly s26b (x4) 26mm s26b...
  • Seite 22 ac x2 s23b (x4) roof construction assembly 25mm Rotate The Roof Cnstruction To Its Place Make Sure The Ac Parts In Their Place...
  • Seite 23: S26B (X64)

    s26b (x4) 26 mm click s26b s26b (x16) 26 mm s26b Screwe on the mark line...
  • Seite 24 DOOR ASSEMBLY Left Right s13b (x16) dl1a(x1) dr1a (x1) 12mm dh (x 4) s13b...
  • Seite 25 s13b (x12) 12mm dp1 (x2) dpt (x2) left door...
  • Seite 26: 26Mm

    s13b (x7) db1 (x1) s13b ROOF CROWN ASSEMBLY s26b (x4) kc (x2) 26mm click...
  • Seite 27 acw (x1) sc15 (x7) 16 mm sc15 f - in...
  • Seite 28 V (x2) click Push vent into position. your helper holds the wall from the inside WINDOW ASSEMBLY f - out (x1) pls (x1)
  • Seite 29 FOUNDATION ATTACHMENT (Optional) Wood concrete NOT INCLUDED INSIDE...
  • Seite 30 In case a problem should occur, please address your claim to customer service either by phone or through our web site: www.keter.com. The warranty is valid as of the date of purchase and a dated proof of purchase should be presented on request.
  • Seite 31 GARANZIA LIMITATA DI 2 ANNI L’ottima reputazione di cui gode Keter per i suoi prodotti è il risultato di una dedizione e di un impegno costante verso la qualità, il design e l’innovazione. L’intera gamma degli armadietti e dei box viene prodotta con materiali di prima qualità, sotto un controllo e una supervisione rigorosi. Se dovesse presentarsi un problema, presentare reclamo al servizio d’assistenza, per telefono o attraverso il nostro sito Web: www.keter.com.
  • Seite 32 In case a problem should occur, please address your claim to customer service either by phone or through our web site: www.keter.com. The warranty is valid as of the date of purchase and a dated proof of purchase should be presented on request.
