Bedienungsanleitung für Magico Q7-Lautsprecher
(10) 180 degree cranks to ensure that the loud-speaker is still level with the floor. If not,
jack the appropriate side to compensate.
TEP 6:

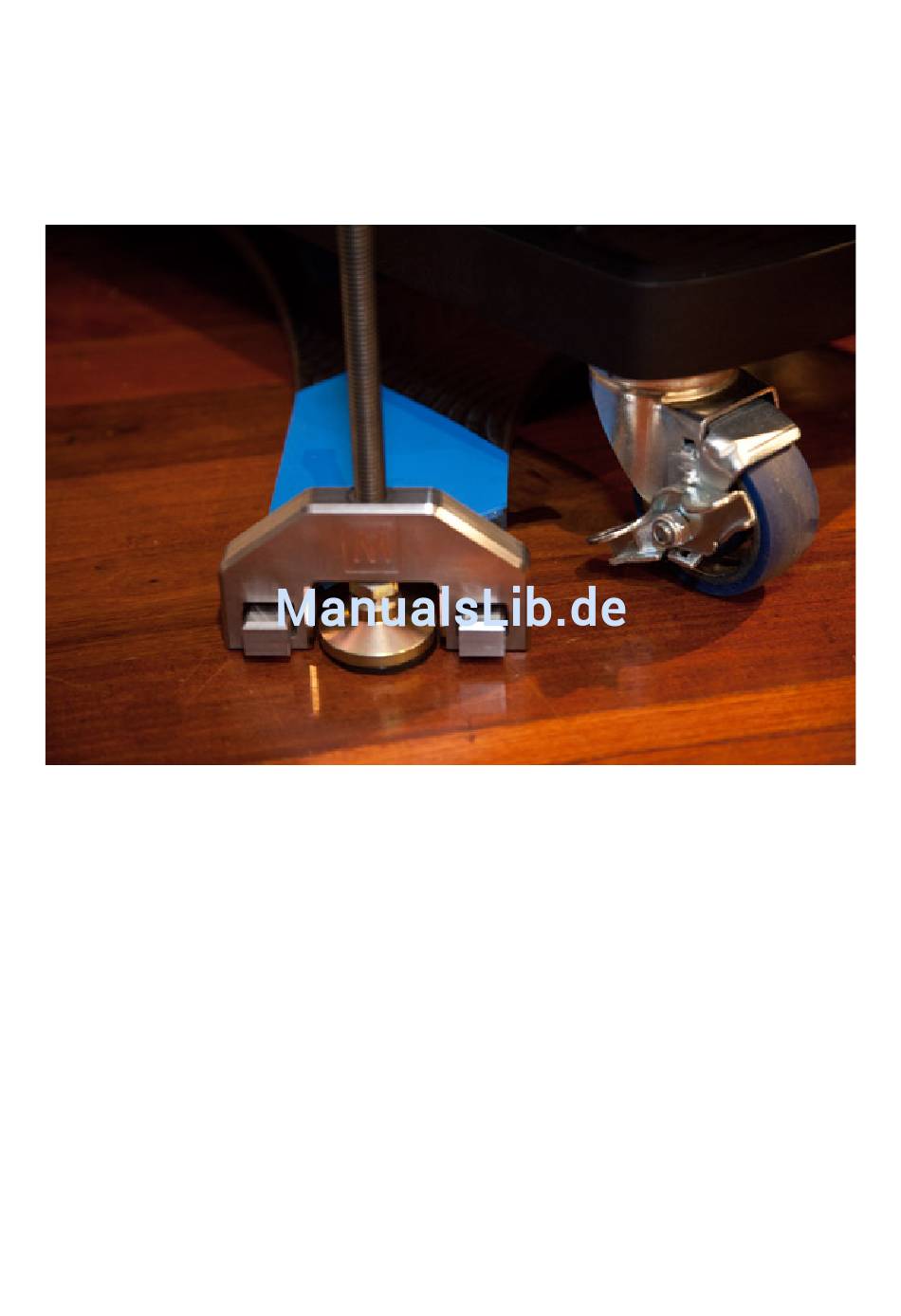

Once the Jacking bolt heads bottom out against the Q7 lift foot brackets, remove
the caster and replace each with a Q7 foot assembly. Before the Q7 foot assemblies are
installed, the two pieces should be separated so there is approximately ¼" of space be-
tween the base and top piece.
lowered with the supplied spanners in the accessory kit.
S
TEP 7:
Reverse steps (5-1) to remove the lift from below the loud-speaker cabinet.
WARNING/DISCLAIMER:
Never place hands underneath speaker without someone holding the speaker
•
steady.
There should always be a spotter who is not actually helping lift the speak-
er.
NOTE:
This can be adjusted after the loud-speaker is
Seite 14 von 20
