Bedienungsanleitung für Magico Q7-Lautsprecher
ot impede upon the embossed circular reliefs that the casters are seated in.

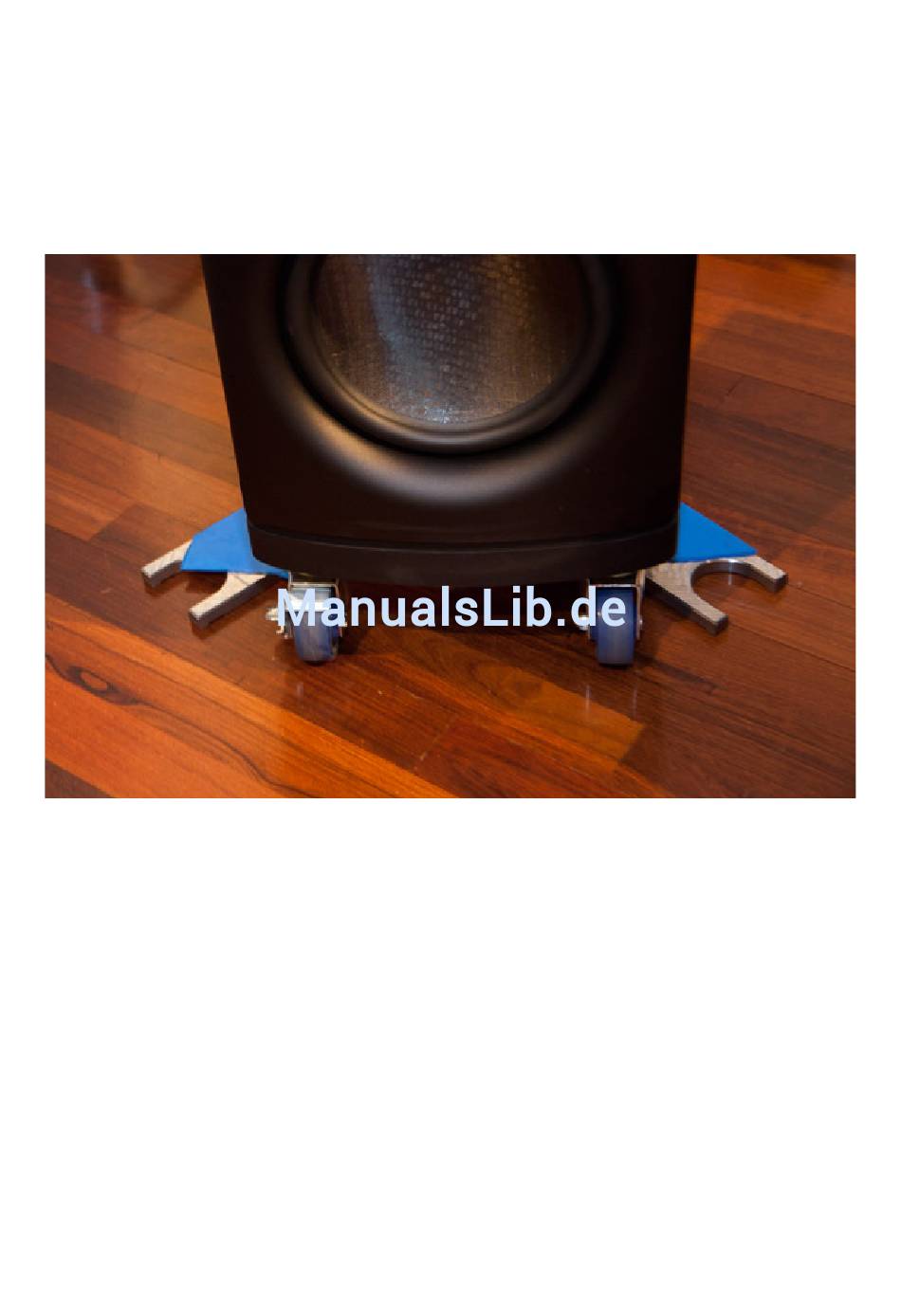

STEP 4:
Seat the (3) Q7 lift foot brackets at the end of each of the (3) lift extensions.
Make certain that the bolt heads of the Q7 foot brackets, on the front lift extensions, are
of approximate equal distance from the side of the cabinet. Once the lift plate is seated,
make sure that the brackets are also securely seated in the notches of the lift plate and
that they are perpendicular to each other, with the bolts being perpendicular to the floor
as well. Incorrectly angled placement of the brackets can put both the speaker and the
installer in harm's way.
STEP 5:
One person man each of the lift extensions/foot brackets with a 3/8" drive
socket wrench and 15mm 12 point bit. Work together to counting out sets of 10 x 180 de-
gree cranks. This is to ensure that the loud-speaker cabinet is lifted on a level plane. Al-
ways make sure that as lift is being cranked that the bearing is moving in concert with the
bolt. Always make sure that the foot is not turning with the bearing, as this will damage
the foot and the floor.
NOTE:
It is important to take a step back after every (3) sets of
Seite 13 von 20
