Assembly

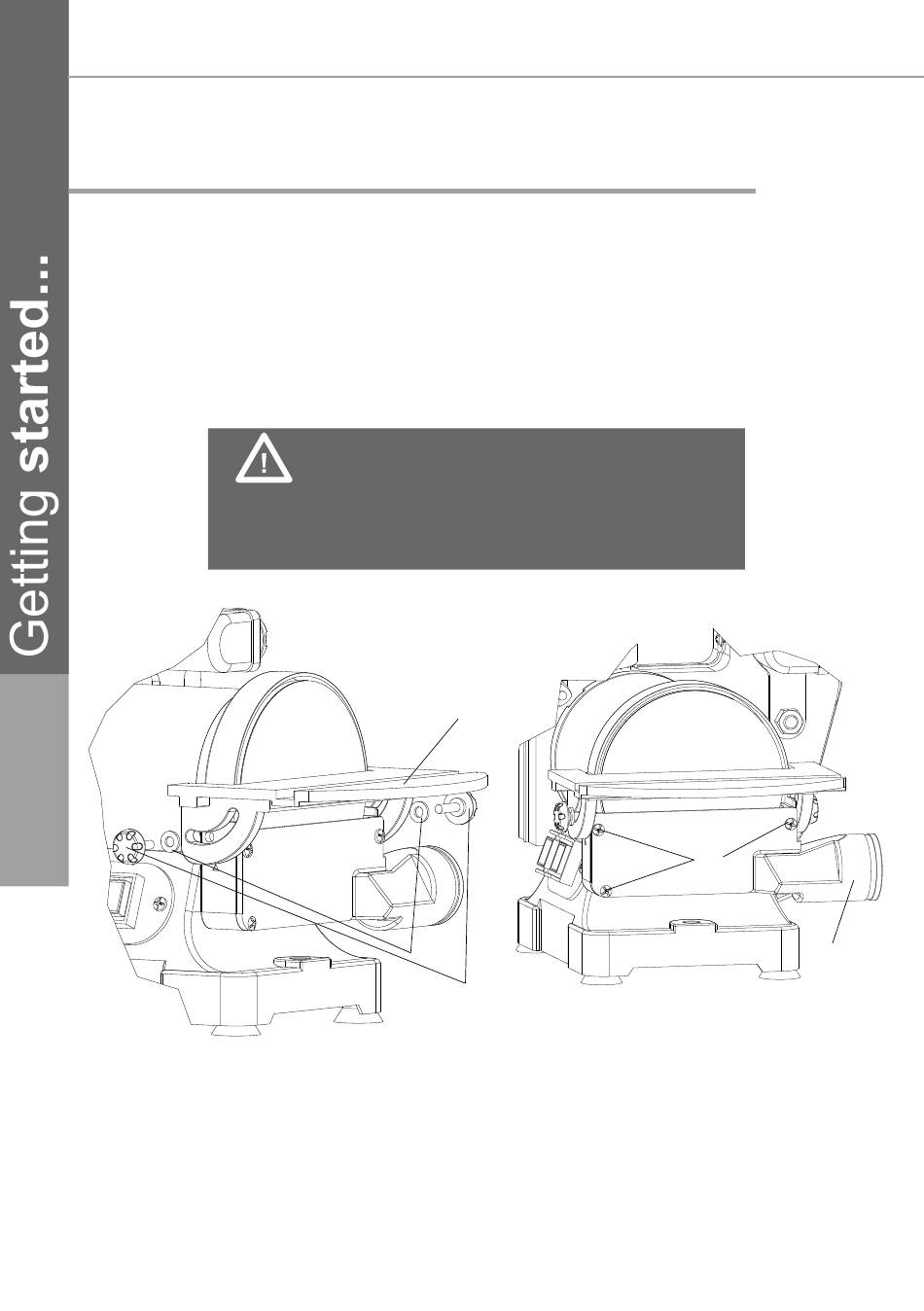

Assembly the grinding table adjustable (Fig. 3)
1. Slide the grinding belt table (5) so the lugs fit into the notch on the machine
and press the table up until the drilled holes match.
2. Secure the grinding table adjustable with the locking screws and washers
(5a and 5b) on both sides.
Fig. 3
Mounting the vacuum connector (Fig. 4)
1. Mount the vacuum connector (10) to the machine using the slotted screws
and washers (10a and 10b).
24
Attention!
To prevent fingers from being squeezed
between the plate and table a minimum
separation of 2,0 mm has to be maintained
between the table and grinding plate.
5
5b
5a
Fig. 4
Assembly
10a
10b
10
