Shuttle NC50N Serie Kurzanleitung

NC50N Series Quick Guide
More information on this product can be found at: https://bit.ly/NC50N_series
更多本產品資訊，請蒞臨：https://bit.ly/NC50N_series
Weitere Informationen zu diesem Produkt finden Sie unter: https://bit.ly/NC50N_series
Pour plus d'informations sur ce produit, visitez: https://bit.ly/NC50N_series

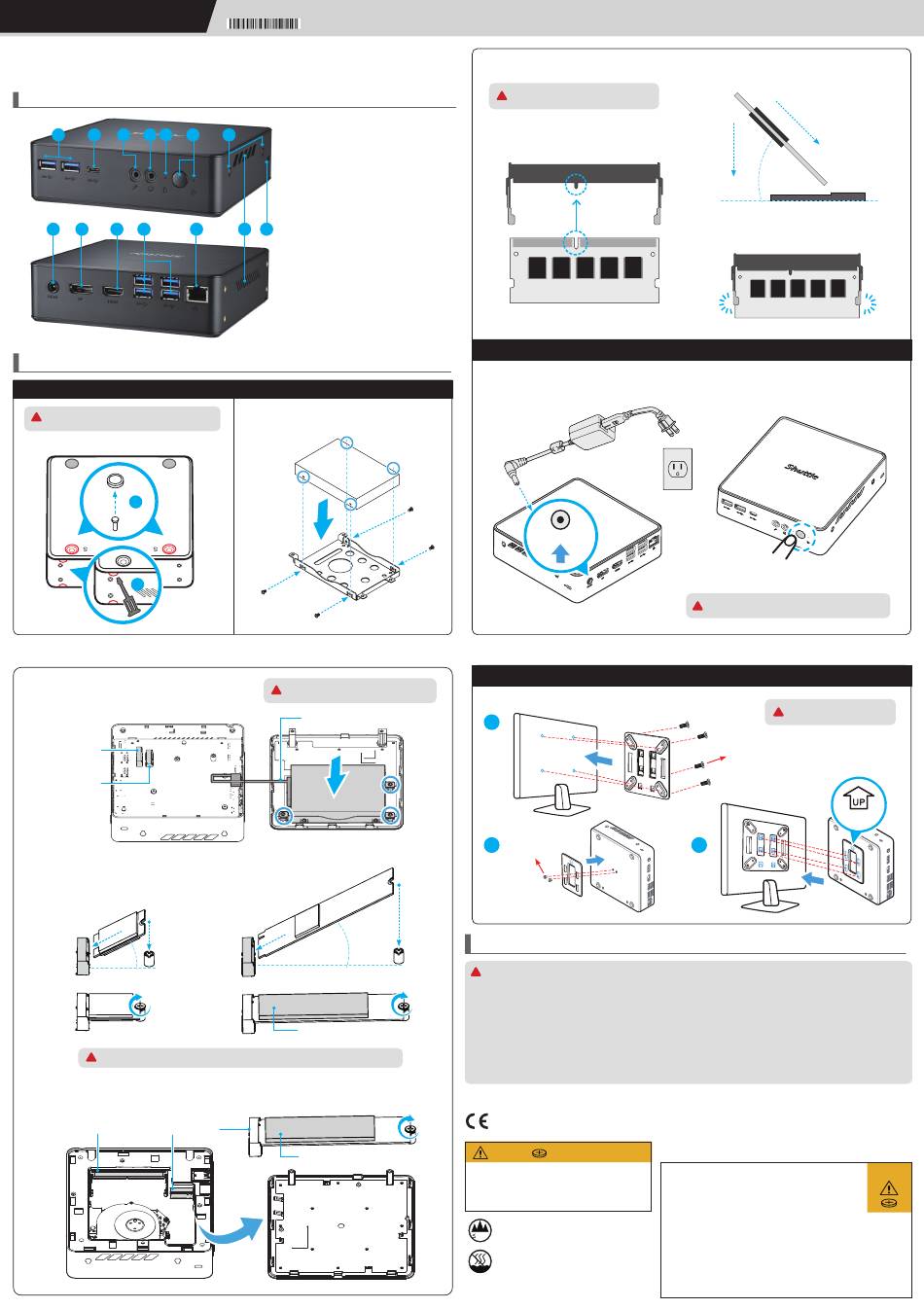

Product Overview
產品外觀 \ Produktübersicht \ Présentation du produit \ Resumen del producto \ 製品概要 \ Обзор продукта \ 产品外观
1 2 3 4 5
10 11 12
1
硬體安裝 \ Hardware Installation \ Installation du matériel \ Instalación de hardware
Hardware Installation
ハードウェアのインストール \ Установка оборудования \硬件安装
A. Begin Installation
For safety reasons, please ensure that the power
!
cord is disconnected before opening the case.
1. Unscrew two screws of the back cover and remove it.
(x2)
1
(x2)
2
The product's colour and specifications may vary from the actually shipped product.
L
2. Put the rack back into the back cover and refasten the screw.
Connect the Serial ATA and power cable to the HDD or SSD.
M.2 2280 M key slot
M.2 2230 E Key slot
3. Locate the M.2 key slots on the motherboard.
Install the M.2 device into the M.2 slot and secure with the screw.
 M.2 2230 E Key slot
a
b
Slope angle
c
M3*4 screw
!
Pasting the supplied thermal pad on the M.2 SSD can effectively reduce its temperature.
4. Replace the back cover. Turn your NC50N upside down and remove the other cover.
5. Please install device into the M.2 slot on top side by steps B3. if you need.
DDR5 SO-DIMM slot M.2 2280 M key slot
53R-NC50N3-2001
快速安裝指南 Kurzanleitung Guide rapide Guía rápida クイックガイド Kраткое руководство 快速安装指南
Puede encontrar más información sobre este producto en: https://bit.ly/NC50N_series
本製品の詳細な情報については、次のURL より確認頂けます。https://bit.ly/NC50N_series
Для получения дополнительной информации об этом продукте перейдите
по ссылке : https://bit.ly/NC50N_series
更多本产品信息，请访问：https://bit.ly/NC50N_series
1. USB 3.2 Gen1 Type-A ports
6 7
2. USB 3.2 Gen1 Type-C Port
3. MIC-in
4. Headphones
5. Hard disk drive LED
6. Power switch / Power LED
7. Perforation for optional WLAN
13
8 9
8. Ventilation Hole
9. Kensington ® Lock Hole
10. Power Jack (DC IN)
11. DisplayPort
12. HDMI 2.0 Port
13. LAN Port
B. Component Installation
1. Place an HDD or SSD in the rack and secure with the
four screws from the sides.
a
b
This model supports 2.5" SATA HDDs and
!
SSDs up to a thickness of 15mm.
Serial ATA and power cable
c
a
 M.2 2280 M key slot
a
Slope angle
Thermal Pad (8 mm)
Thermal Pad (10 mm)
4
6. Locate the SO-DIMM slot on the motherboard.
This motherboard does only support
!
1.1 V DDR5 SO-DIMM memory module.
7. Align the notch of the memory module with the
one of the relevant memory slot.
Notch
Cutout
C. Connecting to Power
1. Please replace and affix the case cover with
two screws, then connect the power cord.
a
DC-IN
Installation of VESA Mount
Follow the steps 1-3 to install the VESA mount.

1
b
2
M2.5*L3
b
Safety Information
Incorrectly replacing the battery may damage this computer. Replace
!
only with the same or equivalent as recommended by Shuttle.
Dispose of used batteries in accordance with the laws of your country.
更換電池方式錯誤可能會損壞本電腦以及引發爆炸、火災或其他危險。
c
僅能依 Shuttle的建議,以相同或同等的電池更換。
請根據您所在國家/地區的法律規定處理廢電池。
Das unkorrekte Austauschen der Batterie kann diesen Computer
beschädigen. Ersetzen Sie die Batterie nur durch den gleichen Typ
M3*4 screw
oder ein gleichwertiges, von Shuttle empfohlenes Modell. Entsorgen Sie
gebrauchte Batterien gemäß den gesetzlichen Vorschriften in Ihrem Land.
Ne pas replacer correctement la pile peut endommager l'ordinateur.
Remplacez-la uniquement par un modèle identique ou un équivalent
comme recommandé par Shuttle. Éliminez les piles usagées
conformément à la législation en vigueur dans votre pays.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This device meets the requirements for the EU conformity in accordance to the currently valid EU directives.
Dieses Produkt erfüllt die Anforderungen für die EU-Konformität entsprechend der aktuell geltenden EU-Richtlinien.
Ce produit répond aux exigences de la conformité UE suivant les directives européennes actuellement en vigueur.
THIS PRODUCT CONTAINS
WARNING
M3*4 screw
If swallowed, a lithium button battery can cause severe
or fatal injuries within 2 hours.
Keep batteries out of reach of children.
If you think batteries may have been swallowed or placed
inside any part of the body, seek immediate medical attention.
注意: 仅适用于海拔 2000m 以下安全使用,
在海拔 2000m 以上使用时, 可能有安全隐患。
2000m
注意: 仅适用于在非热带气候条件下安全使用,
在热带气候条件下使用时, 可能有安全隐患。
注意: 允许产品使用的最高环境温度为 40℃。
* The equipment was evaluated for use in a
maximum air ambient temperature of 40 ºC.
產品宣告最大適用環境溫度為 40 ºC。
8. Gently insert the module into the slot
in a 45-degree angle.
b
SO-DIMM slot
9. Carefully push down the memory module
until it snaps into the locking mechanism.
Latch
2. Complete.
b
c
Please press the "Del" key while booting to enter
!
BIOS. Here, please load the optimised BIOS settings.
M4*L10
3
安全資訊 \ Sicherheitshinweise \ Informations de sécurité \ Información de seguridad
安全に関する情報 \ Информация о безопасности \ 安全信息
La sustitución incorrecta de la batería puede dañar este equipo.
Sustituya la batería únicamente por una igual o equivalente recomendada
por Shuttle. Elimine las pilas usadas de acuerdo con los requisitos legales
de su país.
バッテリを間違ってセットすると、このコンピュータが損傷する原因とな
ります。交換する際は、Shuttle が推奨するバッテリと同じものまたは同等
のものだけを使用するようにしてください。使用済みのバッテリーは、お
住みの国の法律に従って処分してください。
Неправильная замена батареи может привести к повреждению комп
ьютера. Батарея должна соответствовать стандарту производителя
Shuttle или быть идентичной предыдущей. Утилизируйте использованн
ые батареи в соответствии с законодательством вашей страны.
更换电池方式错误可能会损坏本电脑。仅能依 Shuttle 的建议, 以相同或同等
的电池更换。请根据您所在国家/地区的法律规定处理废电池。
All bundled parts, power cord included, shall not be used without this product.
電源ケーブル等、すべての付属品は本機以外ではご使用になれません。
A BUTTON BATTERY
The product contains non-replaceable batteries
The statement "remove and immediately recycle or dispose of used
batteries according to local regulations and keep away from children.
Do NOT dispose of batteries in household trash or incinerate."
(a) Remove and immediately recycle or dispose of used batteries
according to local regulations and keep away from children.
Do NOT dispose of batteries in household trash or incinerate.
(b) Even used batteries may cause severe injury or death.
(c) Call a local poison control center for treatment information.
(d) Indicating the compatible battery type CR2032.
(e) Indicating the nominal battery voltage.
(f) Non-rechargeable batteries are not to be recharged.
(g) Do not force discharge, recharge, disassemble, heat above (manufacturer's
specified temperature rating) or incinerate. Doing so may result in injury due to
venting, leakage or explosion resulting in chemical burns.
a
45-degree
angle
Latch
d
Supports 75x75mm and
!
100x100mm VESA standard.
This side UP!
WARNING
