ENGLISH
IP Camera

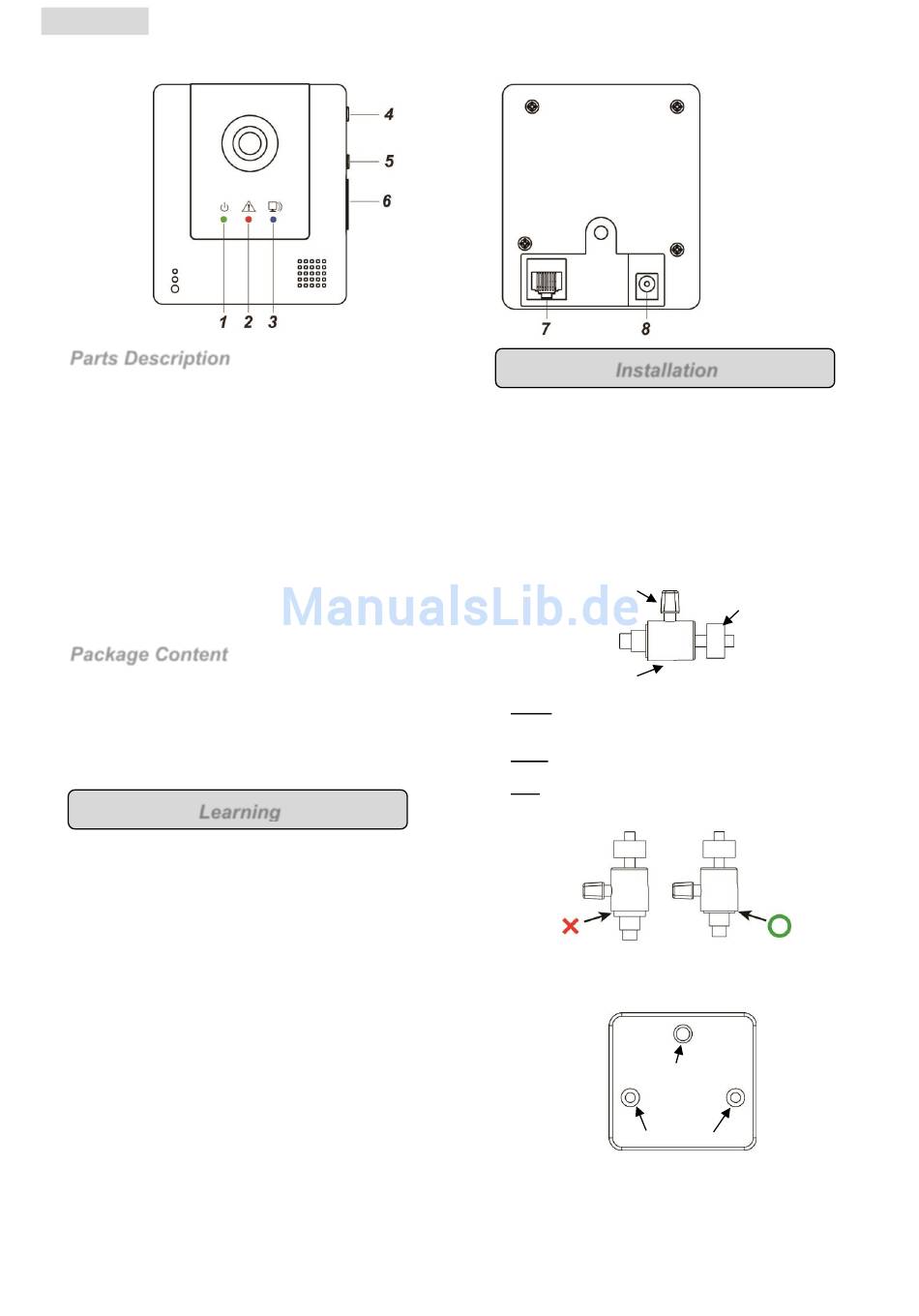

Parts Description
1. Power LED (Green)
2. Status LED (Red)
3. Network LED (Blue)
4. WPS Button
Press and hold for 2 seconds to activate WPS protocol
5. Learning / Privacy Button
Press and hold for 2 seconds to enter/exit privacy mode
Press and hold for 10 seconds to enter learning mode
Press and hold for 6 seconds to exit learning mod
6. Micro SD Card Slot
7. Ethernet Port
8. DC Jack
Package Content
1 x IP Camera
1 x Camera Stand
2 x Wall plugs, washer and screws
1 x AC/DC 5V 2A Power Adaptor
1 x Ethernet Cable
Learning
The IP Camera must be learnt into Control Panel to serve as part
of the alarm system.
1. Connect the Ethernet port to the same router as your alarm
system Control Panel.
2. Plug in the AC adaptor to power on.
3. After Blue Network LED lights up, put the Control Panel into
learning mode.
4. Press and hold the Learn button for 10 seconds. Ignore the 2
Red Status LED flash at the 2
when the Blue Network LED begins to flash.
5. The Control Panel should display IP Camera info. Refer to
Control Panel manual to complete learning process.
6. If the Control Panel does not display IP Camera info, press and
hold the Learn button for 6 seconds to stop the Blue Network
LED flashing. Then restart from Step 4.
nd
second and release the button

Installation

The IP Camera records video when an alarm is activated by other
sensors in the alarm system. It is recommended to deploy the IP
Camera at locations protected by other intrusion detection
sensors to capture video of intruders after an alarm is activated.
For example, deploy the camera to point at door/window
protected by Door Contact, or to cover an area protected by PIR
Sensor.
A camera stand is provided in the package for IP Camera
installation.
 The camera stand is made of the base, shaft and head.
 The camera head includes following part:
Knob
Cap
Collar: When the IP Camera is installed on the mounting screw,
turn the collar counter-clockwise to loosen or clockwise to
tighten the mounting screw into IP Camera.
Knob: Turn the Knob counter-clockwise to loosen the mounting
screw and adjust camera angle, then clockwise to tighten.
Cap: When adjusting the camera angle, make sure the bottom of
the cap should fit around the stand and does not leave any gap.
1. Use the mounting holes on the base as template to mark
mounting location on the wall.
Camera Stand Hole
Mounting Holes
2. Drill holes on the wall and insert wall plug if required.
3. Screw the base into the mounting location.
4. Connect the camera stand head, shaft and base.
Collar
