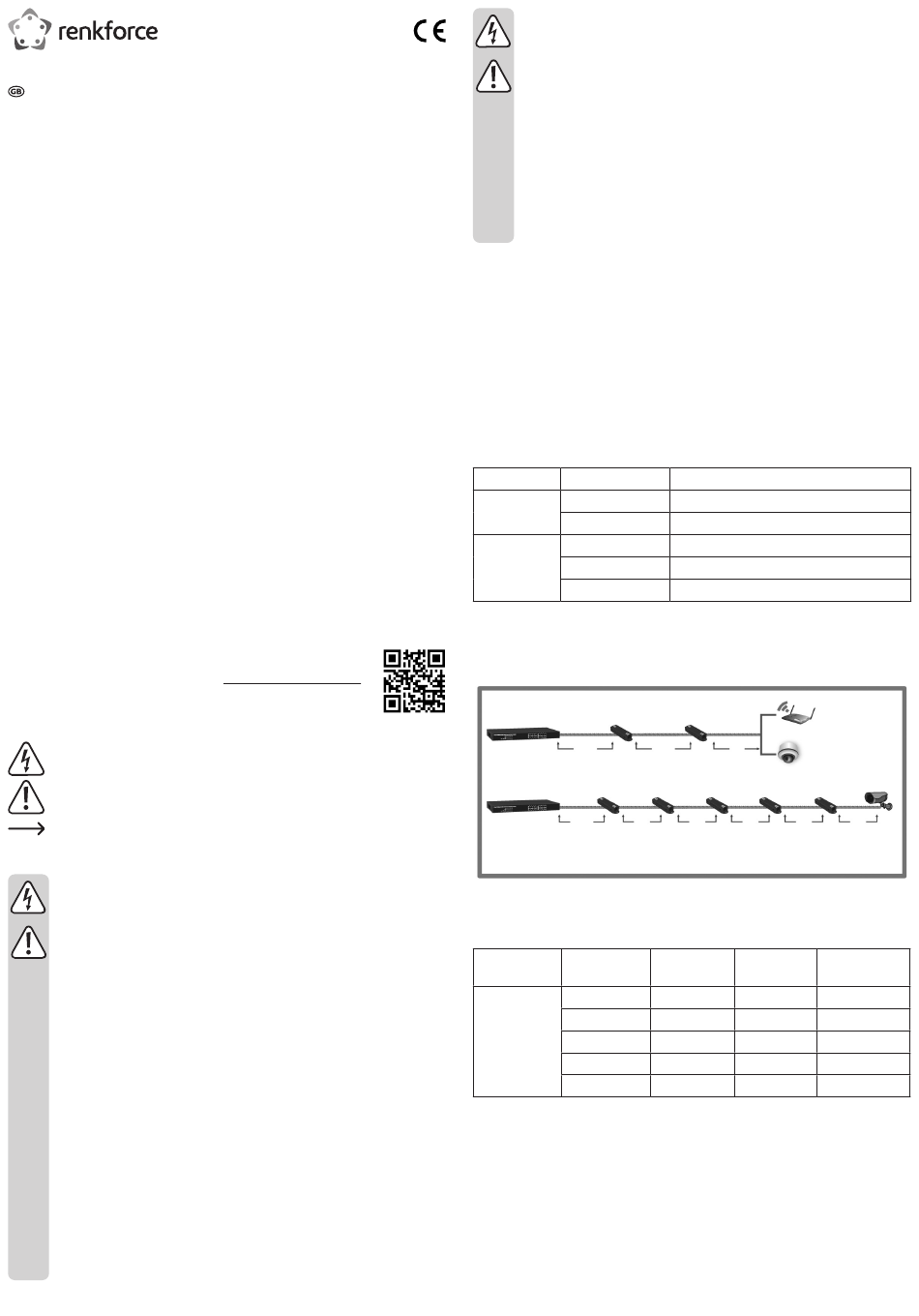

Operating Instructions
Gigabit PoE Extender, 2 connection
Item No. 2300495
Intended use
This product is designed to extend a network up to 100 m and can be used with other extenders
to cascade a network over longer distances.
The product is intended for indoor use only. Do not use it outdoors. Contact with moisture,
e.g. in bathrooms, must be avoided under all circumstances.
For safety and approval purposes, you must not rebuild and/or modify this product. If you use
the product for purposes other than those described, the product may be damaged. In addition,
improper use can result in short circuits, fires, electric shocks or other hazards. Read the
instructions carefully and store them in a safe place. Make this product available to third parties
only together with its operating instructions.
This product complies with the statutory national and European requirements. All company
names and product names are trademarks of their respective owners. All rights reserved.
FCC Warning
This device has been tested and found to comply with limits for a Class A digital device and
pursuant to Part 15B of FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.
This equipment generates and radiates radiofrequency energy. If it is not installed and used
in accordance with the user's manual, it may cause interference. In this event, the user will be
required to correct the interference at their own expense.
CE Warning
This is a Class A product. In a domestic environment, this product may cause radio interference,
in which case the user may be required to take adequate measures.
Delivery content
• Gigabit PoE extender
• Wall mounting set (screws x 2, dowels x 2)
• Operating instructions
Up-to-date operating instructions
Download the latest operating instructions at www.conrad.com/downloads or
scan the QR code shown. Follow the instructions on the website.
Explanation of symbols
The symbol with the lightning in the triangle is used if there is a risk to your health,
e.g. due to an electric shock.
The symbol with the exclamation mark in the triangle is used to indicate important
information in these operating instructions. Always read this information carefully.
The arrow symbol indicates special information and advice on operation.
Safety instructions
Read the operating instructions carefully and especially observe the safety
information. If you do not follow the safety instructions and information
on proper handling in this manual, we assume no liability for any resulting
personal injury or damage to property. Such cases will invalidate the warranty/
guarantee.
a) General information
• The device is not a toy. Keep it out of the reach of children and pets.
• Do not leave packaging material lying around carelessly. This may become
dangerous playing material for children.
• Protect the appliance from extreme temperatures, direct sunlight, strong jolts,
high humidity, moisture, flammable gases, steam and solvents.
• Do not place the product under any mechanical stress.
• If it is no longer possible to operate the product safely, take it out of operation and
protect it from any accidental use. Safe operation can no longer be guaranteed
if the product:
- is visibly damaged,
- is no longer working properly,
- has been stored for extended periods in poor ambient conditions or
- has been subjected to any serious transport-related stresses.
• Please handle the product carefully. Jolts, impacts or a fall even from a low height
can damage the product.
• Consult an expert when in doubt about the operation, safety or connection of
the appliance.
• Maintenance, modifications and repairs must only be completed by a technician
or an authorised repair centre.
• If you have questions which remain unanswered by these operating instructions,
contact our technical support service or other technical personnel.
Caution:
• To avoid damaging the components, do not attempt to open or repair the PCB
without professional guidance.
• The operating range may be affected by environmental factors and nearby
sources of interference.
• Proper use helps to prolong the lifespan of the product.
b) Connected devices
• Also observe the safety and operating instructions of any other devices which are
connected to the product.
Operation
a) Key Features
• 2-port PoE+ extender:
- 10/100/1000 PoE In (data + power in) RJ45 port. This port supports IEEE 802.3at
Powered Device (PD) and gets its power from other PSE.
- 10/100/1000 PoE Out (data + power out) RK 45 port, compliant with IEEE 802 10BaseT,
IEEE 802.3u 100BaseTX, IEEE 802.3ab 1000BaseT and IEEE 802.3at PoE. This port
supports IEEE 802.3at Powered Device (PD) and provides a power source to other PDs.
• Dedicated full-duplex 2000 Mbps bandwidth.
• Smart plug & play.
b) Front Panel LED indicators
LED Status
PoE On
Off
Data On
Off
Flashing
c) Connections
1. PSE/PD to 2-Port PoE Extender connection
• This POE extender provides automatic crossover detection functionality. It can be connected
to other PSE/PD via a twisted pair cable.
100 m
PoE Switch
PoE
Extender
100 m 100 m
PoE Switch
PoE
Extender
2. Power and extended distance connections
• Power is supplied through Cat. 5e/6 cables from other PSE and can be extended up to
100 m through this device. Refer to the table below for longer distance connections.
Number of
PoE Source
RF-PEE-300
1
2
802.3at PoE
3
switch
4
5
Note: All values listed here are the maximum values from tests based on a PoE switch with
a 56 V output performed in laboratory conditions. The actual value may be different due to the
network conditions and cable quality.
Description
PoE function ON
PoE function OFF or no connection
Port is connected
No connection
Data is transmitting or receiving
Wireless AP
100 m 100 m
PoE
IP Cam
Extender
100 m 100 m 100 m
PoE PoE PoE
Extender Extender Extender Extender
PD voltage PD max power
Distance (m)
(V) (W)
200 42.4 24.592
300 38.0 17.9
400 33.7 16.176
500 31.4 12.56
600 30.8 8.624
100 m
IP Cam
PoE
