TEAM 7 filigno Montagehandbuch Seite 177

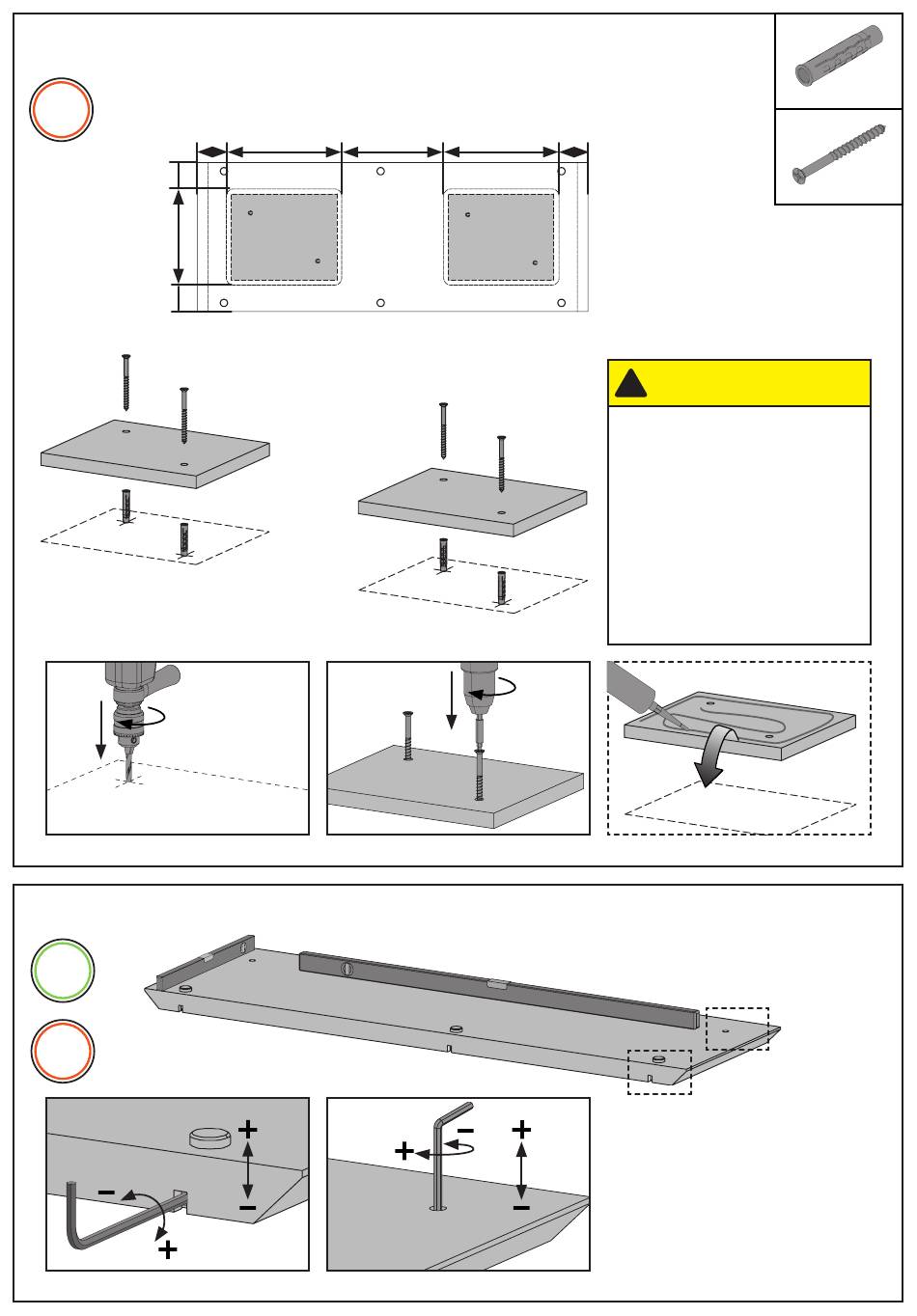

6.1 Floor fastening to prevent tipping
.2
RT
=
200
=
Ø 8
6.1 Aligning the skirting board
.3
WR
RT
SW 4
12/48
60 240
SW 4
240 60
!
ATTENTION
-
The anti-tilt device must be
fitted! If fixing with plugs and
screws is not possible, a
suitable mounting adhesive
must be used.
-
The substrate for fastening
must be checked by a spe-
cialist!
All dimensions in millimetres
