Wireless Remote Keypad with Proximity Tags (KPT-R1)
EN Wireless Remote Keypad with Proximity Tags (KPT-RI)
0000
8
101010 0
9
10
0000

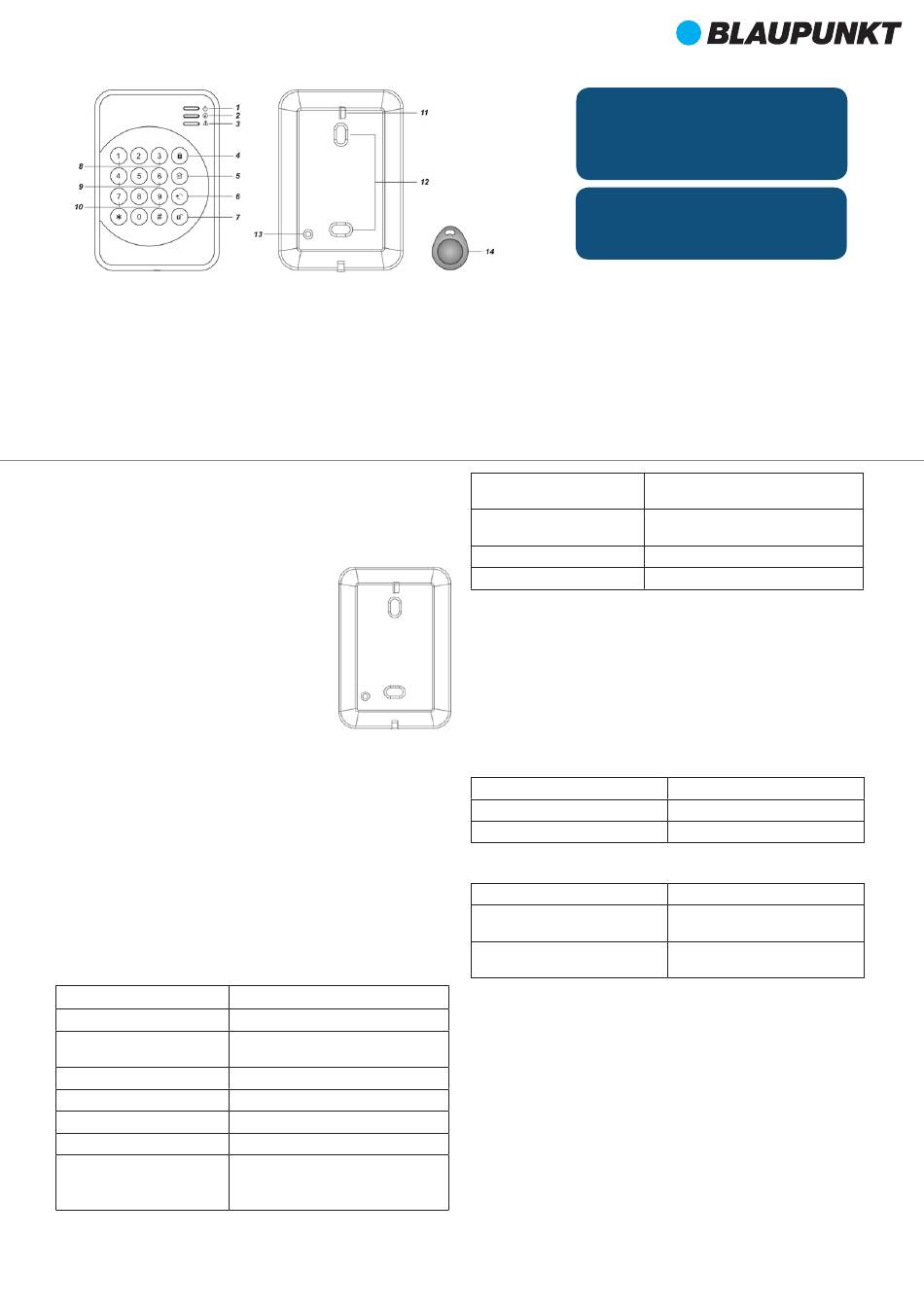

Parts Description
Parts Description
1. Active LED (Blue/Orange)
I. Active LED(Blue/Orange)
2. Status LED (Blue/Red)
2. Status LED (Blue/Red)
3. Fault LED (Orange)
3. Fault LED(Orange)
4. Away Arm Key
4. Away Arm Key
5. Home Arm Switch
5. Home Arm Switch
6. Status Key
6. Status Key
7. Disarm Key
7. Disarm Key
8. Panic Alarm
8. Panic Alarm
Press both 1 and 3 key to trigger Panic alarm
Pressboth I and 3 keyto trigger Panicalarm
1. Learning
I. Learning
For learning the Remote Keypad:
For learningthe Remote Keypad:
1. Put the Control Panel into learning mode.
1.Put the Control Panelinto learning mode.
2. Press both # and * keys to transmit learn code
2.Pressboth # and * keysto transmit learn code
3. Refer to Control Manual to complete the learning process.
3. Refer to Control Manual to complete the learning process.
2. Installation
2. Installation
The Remote Keypad has 2 knockouts on the back
The Remote Keypadhas 2 knockouts on the back
where plastic is thinner for wall mounting.
where plastic isthinner for wall mounting.
1. Use the two knockouts on the back to mark
I. Use the two knockouts on the back to mark
position on the wall at chest height. Open the back
position on the wall at chest height. Open the back
cover.
cover.
2. Drill holes into the wall using the knockouts as
2.Drill holes into the wall using the knockouts as
template.
template.
3. Fix the keypad base onto the wall with the screw
3.Fixthe keypad baseonto the wall with the screw
and plugs provided.
and plugs provided.
4. Replace the keypad cover onto the base.
4. Replacethe keypad coveronto the base.
3. Operation
3. Operation
Standby Mode
Standby Mode
The Remote Keypad features a power saving feature. When no key is pressed
The Remote Keypad features a power saving feature. When no key is pressed
for 5 seconds, the Remote Keypad will turn off automatically to conserve
for 5 seconds,the Remote Keypadwill turn off automatically to conserve
power. When any key is pressed, the Remote Keypad will wake up and turn on
power. When any key is pressed, the Remote Keypad will wake up and turn on
Active LED to indicate it is now under normal operation.
Active LEDto indicate it is now under normal operation.
Keypad Settings
Keypad Settings
The Remote Keypad features a Test (programming) mode for you to customize
The Remote Keypadfeatures aTest(programming) mode for you to customize
its setting. Before you start using the Remote Keypad, you should first finish its setting. Beforeyou start using the Remote Keypad,you should first finish
configuration setting.
configuration setting.
The Remote Keypad also feature a Keypad PIN code which is used to access the
The Remote Keypadalsofeature a Keypad PINcode which is usedto accessthe
Test mode, To enter Test Mode, Enter 0000 (Default Keypad PIN code) + * key,
Testmode,To enter TestMode, Enter0000 (Default KeypadPINcode) + * key,
the Active Orange LED will light up.
the Active Orange LED will light up.
Under Test Mode, the following functions include:
UnderTestMode, the following functions include:
Key
Key
* + 1
* + 7
* + 2
* + 3
* + 4
* + 5
*+5
* + 6
2
3
4
5
6
7
Mounting
Mounting
Knockouts
Knockouts
x 2
Function
Function
Tag Management
Tag Management
Transmit learn code (same as pressing
Transmit learn code (same as pressing
both # and * keys under normal mode)
both # and * keysunder normal mode)
Enable dual key Panic Alarm function Enabledual key PanicAlarm function
Enable dual key Fire Alarm function
Enable dual key Fire Alarm function
Enable dual key Medical Alarm function
Enable dual key Medical Alarm function
Disable all dual key functions
Disableall dual keyfunctions
Change Keypad PIN Code:
Change Keypad PIN Code:
1. Enter old code + Status Key
1.Enterold code + Status Key
2. Enter new 4-digit code + "#" key
2. Enter new 4-digit code + "#" key
Package Content
Package Content
11
1 x Remote Keypad
I x Remote Keypad
2 x wall plugs and screws 2 x wall plugs and screws
2 x RFID Tags
2 x RFIDTags
1 x 3V lithium batteries (pre-installed)
1 x 3V lithium batteries (pre-installed)
12
NOTE: This device works with a genuine Rolling
NOTE:This device works with a genuine Rolling
Code encryption. Please only use it with a control
Code encryption. Please only use it with a control
panel with Rolling Code, otherwise won't be panelwith RollingCode,otherwise won't be
possible to pair the device.
possibleto pair the device.
14
9. Fire Alarm
9. Fire Alarm
Press both 4 and 6 key to trigger Fire alarm
Pressboth 4 and 6 key to trigger Fire alarm
10. Emergency Alarm
10. EmergencyAlarm
Press both 7 and 9 key to trigger Emergency alarm
Press both 7 and 9 keyto trigger Emergencyalarm
11. Battery Insulator
11. BatteryInsulator
12. Mounting Knockouts
12. Mounting Knockouts
13. Tamper Switch
13. Tamper Switch
The Tamper switch protects the PIR from unauthorized cover opening.
TheTamperswitch protects the PIR from unauthorized cover opening.
14. RFID TAG
14. RFIDTAG
* + 8
*+8
* + 9
* + 0
Disarm twice
Disarm twice
RFID TAG Management
RFID TAG Management
The Keypad can function with the RFID tags included in the package. By
The Keypadcan function with the RFID tags included in the package.By
assigning User PIN Code to a Tag, you can use the Tag to Arm/Home/Disarm the
assigning UserPINCode to aTag,you can usethe Tagto Arm/Home/Disarm the
Control Panel with a simple swipe. Control Panelwith a simple swipe.
Up to 6 tags can be stored in the Keypadand assignedto UserPINCodesfor Up to 6 tags can be stored in the Keypad and assigned to User PIN Codes for
panel control:
panel control:
Add New Tag:
Add New Tag:
1. Enter Keypad Test Mode.
1. Enter Keypad Test Mode.
2. Enter * + 1 for Tag Management. Red Status LED will light up.
2. Enter* + 1 for TagManagement. RedStatusLEDwill light up.
3. Enter a 4-digit Control Panel User PIN Code + # key.
3. Entera 4-digit Control Panel User PIN Code + # key.
Status RED LED flashes Status RED LED flashes
Status Blue LED flashes with 4 beeps
Status Blue LEDflashes with 4 beeps
Status Red LED flashes with 4 beep
StatusRedLEDflasheswith 4 beep
4. Put the TAG close to the Keypad when Status Red LED is flashing.
4. Putthe TAGcloseto the Keypadwhen StatusRedLEDisflashing.
Status RED LED On with 2 beeps
StatusREDLEDOn with 2 beeps
Status Red LED On with 1 bee
Status Red LED On with I bee
Status Red LED On with 4 beeps
StatusRedLEDOn with 4 beeps
5. After finish adding new Tag, press Disarm key to exit Tag Management.
5.After finish adding new Tag,pressDisarm keyto exitTag Management.
Remove Existing Tag:
Remove Existing Tag:
1. Enter Keypad Test Mode.
1.EnterKeypadTestMode.
2. Enter * + 1 for Tag Management. Red Status LED will light up.
2. Enter* + I for TagManagement. RedStatusLEDwill light up.
3. Enter the User PIN Code of the Tag you want to remove, then press the
3. Enter the User PIN Code of the Tag you want to remove, then press the
Status key.
Statuskey.
4. The Keypad will emit a long beep, the Tag info is removed.
4. The Keypadwill emit a long beep, the Taginfo is removed.
BLAUPUNKT
Enable Arming without Use PIN code
EnableArming without UsePINcode
function
function
Enable Arm with User PIN code function
Enable Arm with User PIN code function
(Default)
(Default)
Enable Arming with KP PIN code function
EnableArming with KPPINcode function
To leave Test Mode
To leave Test Mode
Success
Success
Error: Wrong PIN Code length
Error:Wrong PIN Code length
Error: Keypad already stored 6 Tags
Error:Keypadalreadystored 6 Tags
Success
Success
Same PIN Code already assigned to
Same PINCode alreadyassignedto
this Tag
this Tag
Error: Tag already assigned to ano-
Error:Tagalreadyassignedto ano-
ther User PIN Code
ther User PIN Code
