DoorBird Module 50 Installation Seite 3

Fingerprint Reader Module

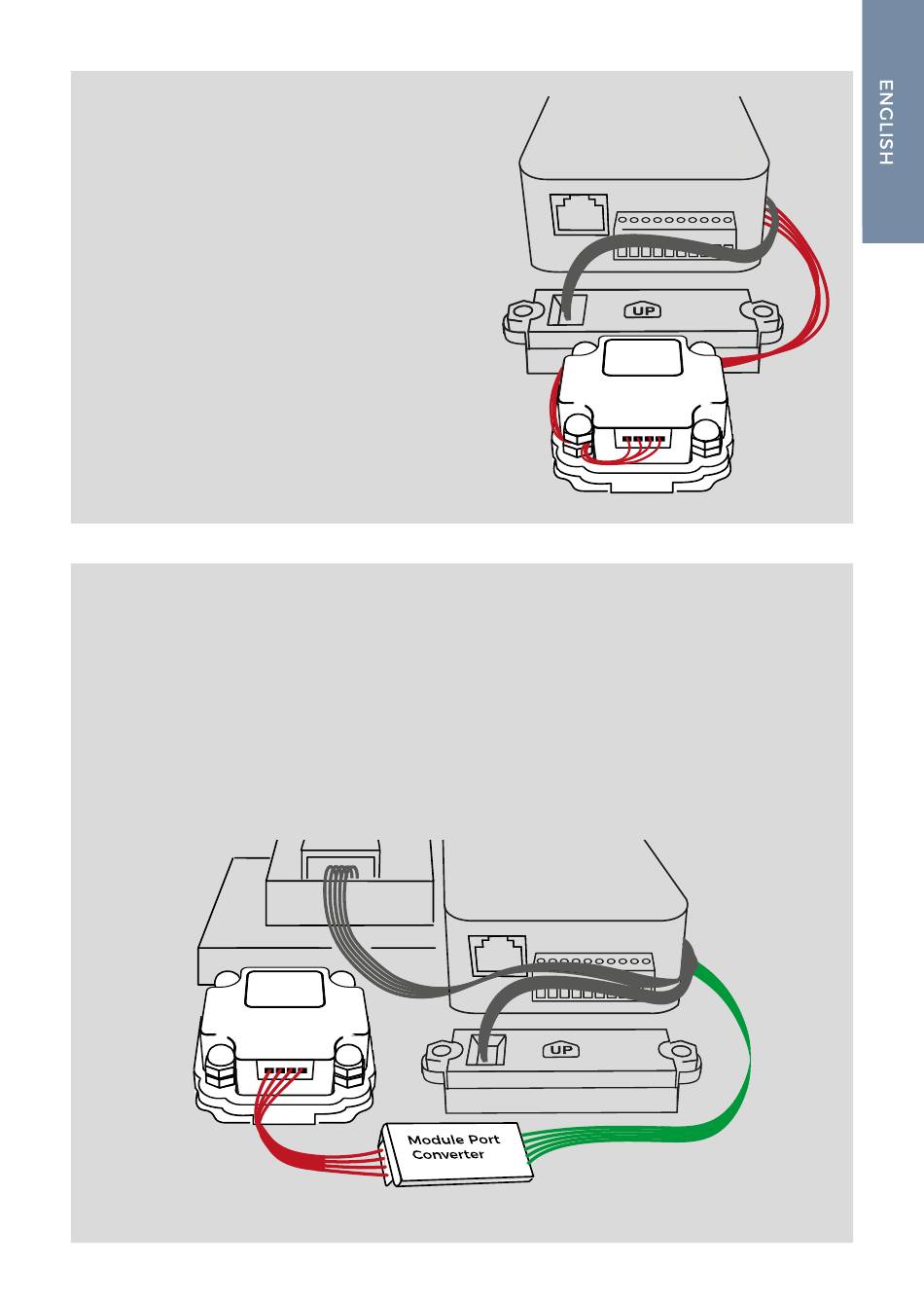

50 as a single input module
Connect the red cable of the
main unit to the Fingerprint
Reader Module.
Fingerprint Reader Module 50 + additional input module
Connect the green cable of the main unit to the Module
Port Converter MPCOID21X. Then, connect the Fingerprint
Reader Module to the red cable of the Module Port
Converter MPCOID21X.
DOORBIRD D21x DOORBIRD D21x
DOORBIRD D21x DOORBIRD D21x
3 3
