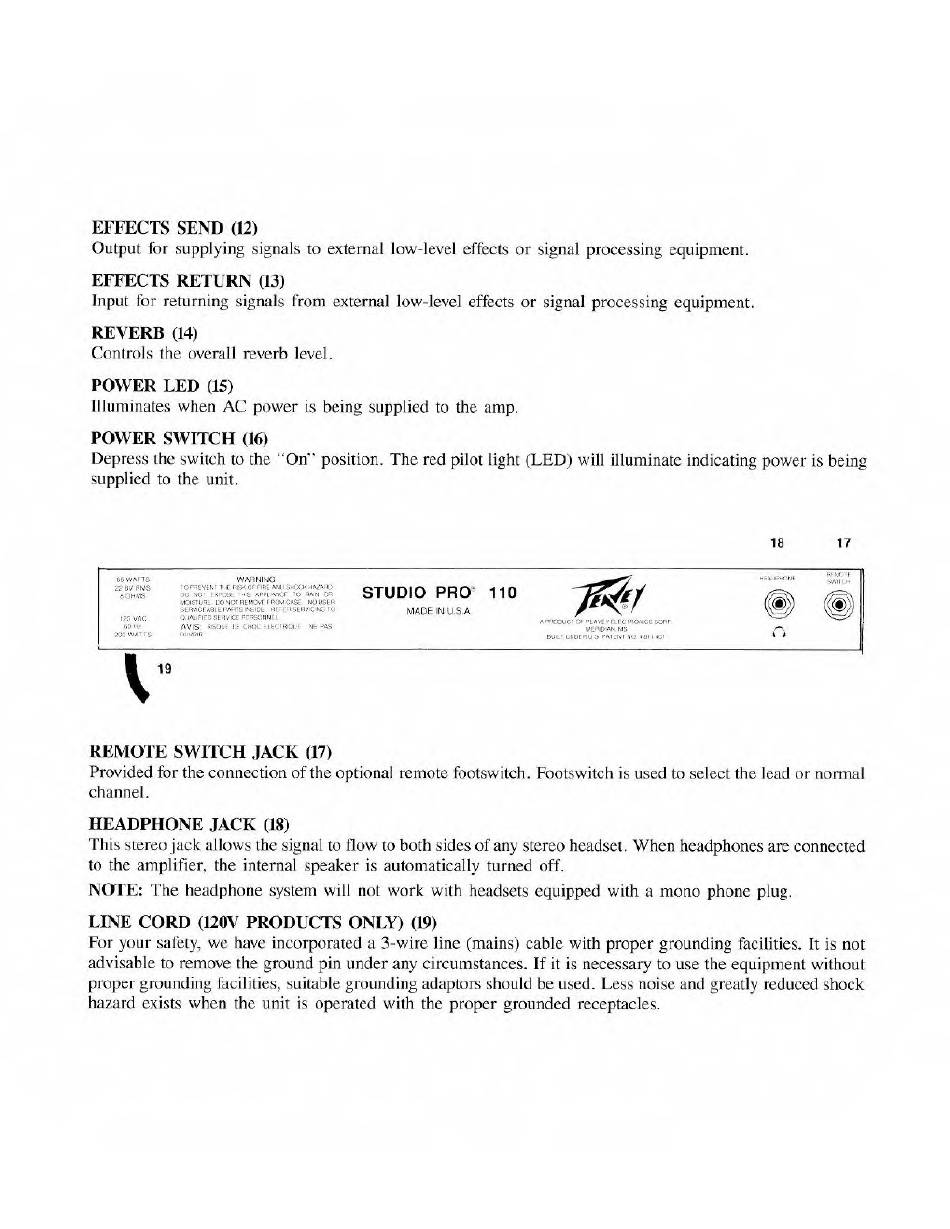

Peavey Studio Pro 110 Betriebsanleitung Seite 4

EFFECTS SEND (12)
Output for supplying signals to exiernal low-levcl effects or signal prcx:cssing equipment.
EFFECTS RETURN (13)
Input for returning signals from external low-level effects or signal processing equipment.
REVERB (14)
C<mtn>is the overall re\'erb level.
POWER LED (15)
llluminales when AC power is being supplied to the amp.
POWER SWITCH (16)
Depress the switch to the "On*' position. The red pilot light (LED) will illuminate indicating power is being
supplied to the unit.
18 17
iJ' i/flC
t: I-
T
REMOTE SWITCH JACK (17)
ProN'ided for the connection of the optional remote foots witch. Foots witch is used U) select the lead or normal
channel.
HEADPHONE JACK (18)
This stereo jack allows the signal to flow to both sides of any stereo headset. When headphones are connected
to the amplifier, the internal speaker is automatically turned off.
NOTE: The headphone system will not work with headsets equipped with a mono phone plug.
LINE CORD (120\' PRODUCTS ONI.Y) (19)
For your safety, wc have incorporated a 3-wire line (mains) cable with proper grounding facilities. It is not
advisable to remove the ground pin under any cii'cumstanccs. If it is necessary to use the equipment without
pixipcr grounding facilities, suitable grounding adaptors should be used. Less noise and greatly reduced shock
hazard exists when the unit is operated with the proper grounded receptacles.
