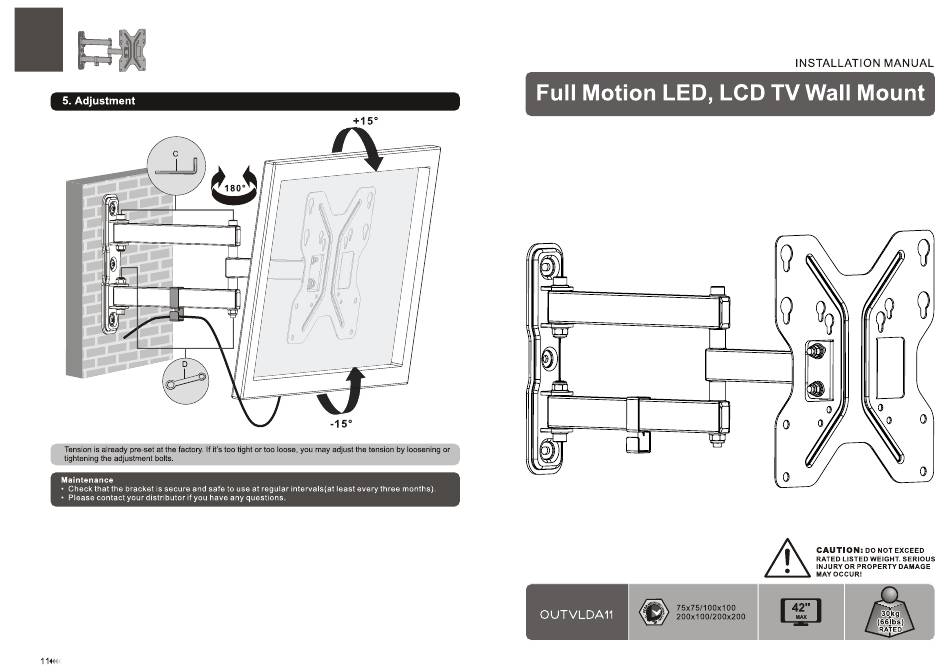

5. Adjustment
1800
Tension is already pre-set at the factory. If it's too tight or too loose, you may adjust the tension by loosening or
tightening the adjustment
bolts.
Maintenance
• Check that the bracket
is secure
and safe to use at regular
• Please
contact
your distributor
if you have any questions.
+150
intervals(at
least every three months)
LED, LCD TV Wall Mount
Full
Motion
75x75/100x100
OUTVLDAII
INSTALLATION
MANUAL
CAUTION:
DO NOT EXCEED
RATED
LISTED
WEIGHT.
SERIOUS
INJURY
OR PROPERTY
DAMAGE
MAY OCCUR!
5(661bs)
RATED
loading

Verwandte Anleitungen für Omega OUTVLDA11

Inhaltszusammenfassung für Omega OUTVLDA11

  • Seite 1 INSTALLATION MANUAL LED, LCD TV Wall Mount Full Motion 5. Adjustment +150 1800 Tension is already pre-set at the factory. If it's too tight or too loose, you may adjust the tension by loosening or tightening the adjustment bolts. Maintenance •...

  • Seite 2: Checklist

    NOTE: Read the entire instruction manual before you start installation and assembly. Component Checklist IMPORTANT: Ensurethat you havereceivedall parts accordingto the componentchecklist prior to installation. f any parts are missing or faulty, telephone your local distributor for a replacement. A WARNING •...
  • Seite 3 1b. For Solid Brick and Concrete Mounting la. For Wood Stud Wall Mounting 55mm 60mm 2.4" ø 4 5mm (ø 3/16") ø 3/8") Mark exact location mounting holes Find mark exact location mounting holes 2 0 00 Drill pilot holes Drill pilot holes 0 00 Screw...
  • Seite 4 2. Installing the Cable Clip 3. Hanging the TV onto the Wall Mount -sop Note: Screws M4/M5 only fit into VESA 75x75 IOOx100 mounting hole patterns. Note: Screws M6/M8 only fit into VESA 200x100 200x200 mounting hole patterns Install both screws into the upper mounting holes on the TV and tighten screws leaving a 2mm space from the TV I spacers.
  • Seite 5 For VESA200x100 200x200 ower firml into place. Lift your TV and fit the screws into the mounting holes on the mount. Install both remaining screws through the lower mounting holes in the mount into the TV. Note: Keep your hand on the TV until all the screws are installed. Tighten all screws at this time...

  • Seite 6: Cable Management

    For VESA75x75 VI-A ift your TV and make the screws on the V fit into the mounting holes on the mount Install both remaining screws through the lower mounting holes in the mount into the TV. Note: Keep your hand on the TV until all the screws are installed. Tighten all screws at this time...
  • Seite 7 nnec,o USER MAUAL FULL MOTION MOUNT OUTVLDAII PRZECZYTAJUWA2ENlE INSTRUKCJ<ZANIMPRZYSTAPISZDO NOTE: READ ENTIRE INSTRUCTION MANUAL BEFORE BITTE, LESEN SIE DIE HINWEISE BEVOR SIE ZU DEM INSTALATION START INSTALLATION ASSEMBLY. STALACJI. BEIZUTRETEN. Rozpocznij instalacjq tylko po uwa2nym zapoznaniu Siq z instrukcjq. Beginnen Sie die Installation nur nach sorgfältigem Lesen der aedienung- Do not begin the installation until you have read and understood all the W przypadku dodatkowych pytafi skonsu tuj Sie z dystrybutorem.
