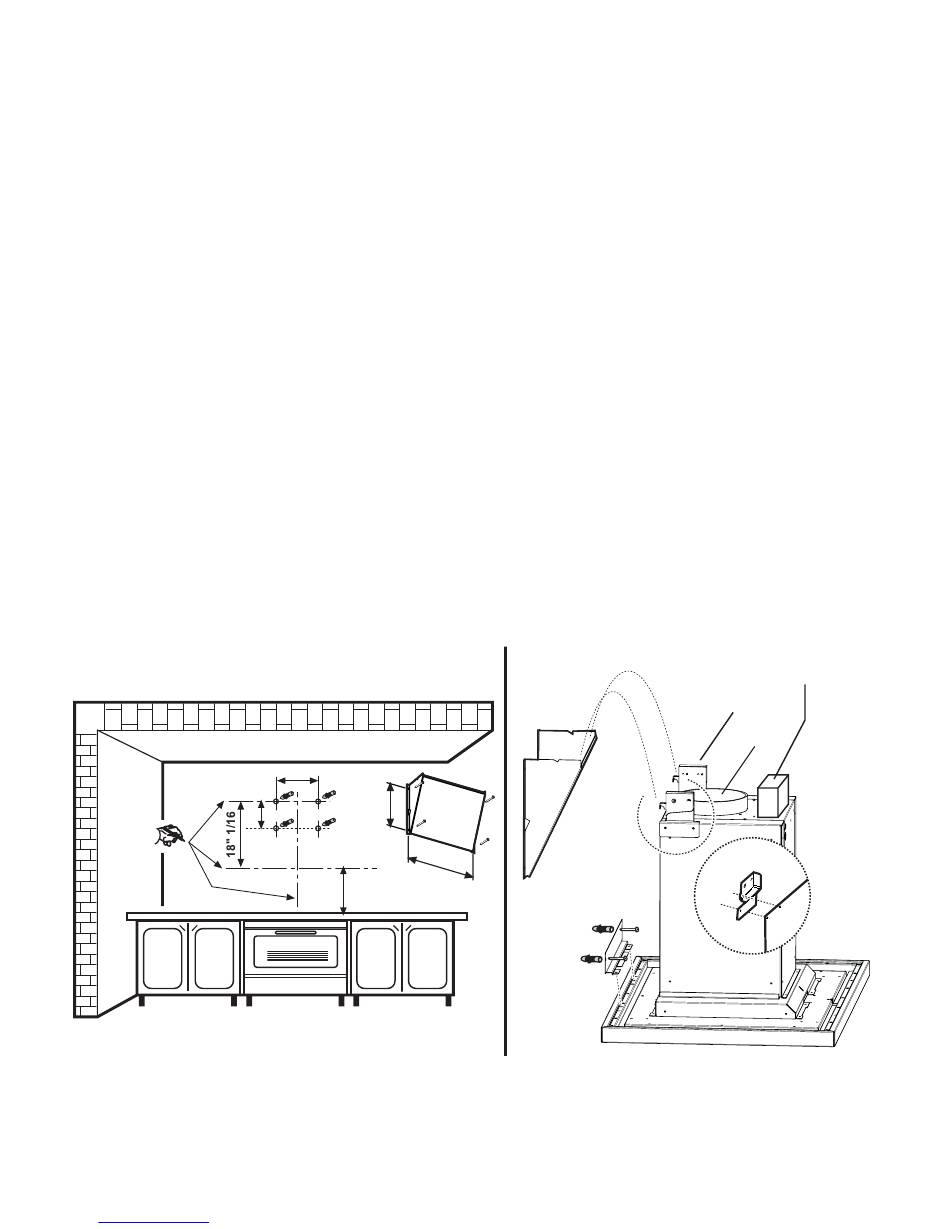

3. Fix the lower bracket on the hood using two
screws (already in place).
4. Fix the supplied hooks on both side of the
motor housing (use two screws each hooks)
5. Hang the hood on the upper bracket.
6. Adjust the distance of the hood from the wall
(use hooks).
7. Adjust the horizontal position of the hood
(use hooks).
8. sing a pencil mark the cooker hood perma-
nent drill holes on the lower bracket.
9. n-hook the hood.
10.Drill at the points marked (Ø8mm).
11.Insert 2 wall plugs
12.Hook the hood again.
13.Fix the hood into its final position on the
wall through the lower bracket with two
screws.
14.Connect a pipe (pipe and pipe clamps not
provided, to be purchased separately) for
discharge of fumes to the connection ring
located over the suction motor unit.
1
Downloaded from www.Manualslib.com
Z
Y
Y
min. 30"
manuals search engine
If the hood is to be used in ducting version,
the other end of the pipe must be connected
to a device expelling the fumes to the outside.
15.Make the electrical connections:
iring the HOOD with an Integral
Ventilator:
Warning: Turn off electricity at the service
panel before wiring the unit.
a. If necessary remove the top cover to easy the
access to junction box.
b. Remove the j-box cover
c. Install 1/2” conduit connector in j-box.
d. Run black, white, and green wires (#14 AWG)
in 1/2” conduit from power supply to j-box.
e. Connect black, white, and green wires from
power supply to black, white, and green/
yellow wires in j-box respectively.
f. Close j-box cover.
Replace the grease filter and the vapour screen
(snap into place) and check that the hood is
operating correctly.
