Retrofitting Instructions
7.2

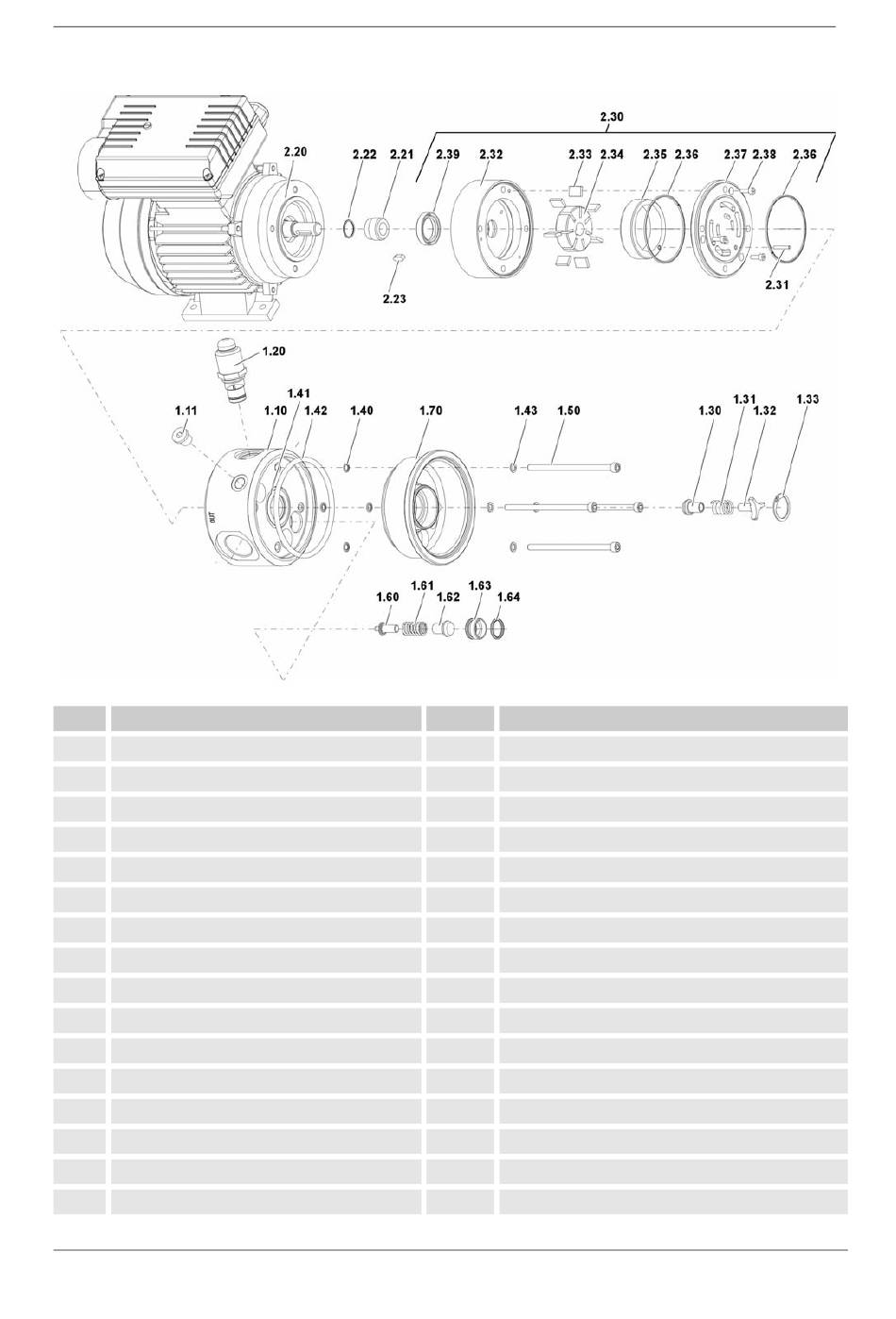

Vane pump

Item Description
1.10 Adaptor
1.11 Screw plug
1.20 Clogging indicator
1.30 Cone
1.31 Compression spring
1.32 Guide
1.33 Circlip
1.40 O-ring
1.41 O-ring
1.42 O-ring
1.43 Seal
1.50 Allen-head screw
1.60 Guide
1.61 Compression spring
1.62 cone
1.63 Valve seat
HYDAC Filtertechnik GmbH
UA OLFC 3226669-01c en.doc
Item Description
1.64 O-ring
1.70 Adaptor
2.20 E-Motor
2.21 Bushing
2.22 O-ring
2.23 Parallel key
2.30 Vane pump, complete.
2.31 Pin
2.32 Pump body
2.33 Vane
2.34 Rotor
2.35 Inner ring
2.36 O-ring
2.37 Control disk
2.38 Allen-head screw
2.39 Shaft seal
en
OLF Compact
Page 62
