IMPORTANT ROCOMMENDATIONS!
• Read the assembly instructions very
carefully before assembly and check the
product to see if it has been damaged
during transport or is defective, as we
cannot assume any liability for damage
toproducts which have already been
assembled.
• We shall not be liable for damage
arising as a result of improper transport or
storage. Read the storage instructions on
the packaging!
• Before installing the product, check to
make sure the type, dimensions and
colour all conform to each other.
• There shall be no warranty claim on parts
subject to wear and tear after the statutory
warranty period has expired.
• Use only the cleaning agents
recommended by retailers to clean the
parts (no abrasives or solvents).
• The shower column may only be used for
the stipulated purpose, otherwise all
product liability will lapse!
• All of our products are subjected to a
complete functional test before they leave
our factory. For this reason the system
may still contain residual water. Any
visible residues are due to this.
• We retain the right to change the
design.en.
DESCALING THE NOZZLES
The nozzles must be regarded as parts
subject to wear and tear. However, correct
functioning and service life can be
increased by regular
(at least every 6 months).
1. Unscrew the front chrome ring (01).
2. Remove the silicone seal (02) and
nozzle (03).
3. Steep the body of the nozzle for several
hours (or even better, overnight)
in a standard descaling agent or in
diluted vinegar. Then rinse out with clear
water.
4. Lightly grease the silicon seal with tap
grease (available in the sanitary trade).
5. Screw on the chrome ring again (tighten
by hand). Make sure that the seal
is correctly positioned.
6. For nozzles that are hard to adjust,
repeat steps 01-03.

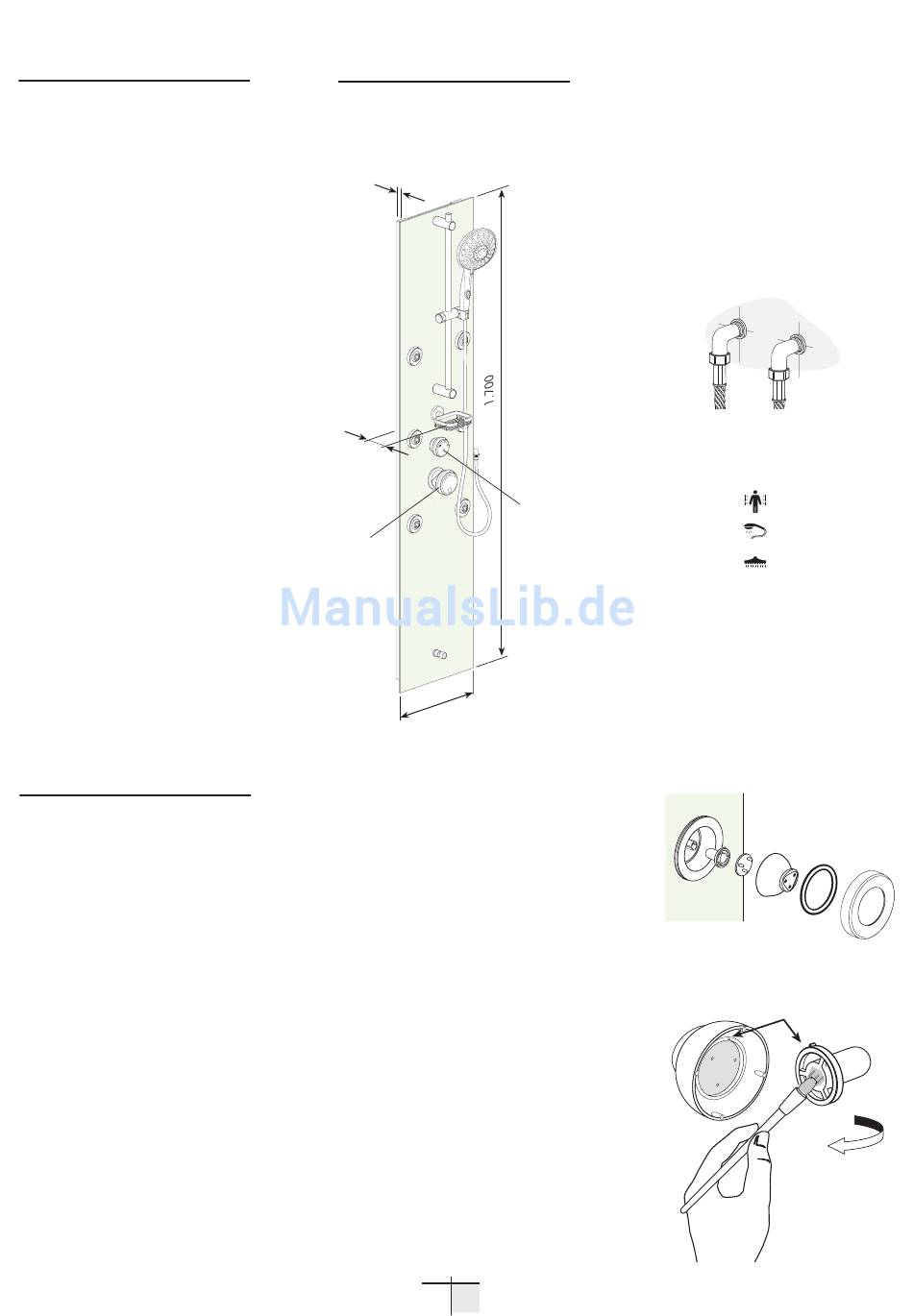

TECHNICAL DATA

Dimensions:
Overall height: approx. 1.700 mm
Width: approx. 350 mm
Depth: approx. 180 mm
1 8 0
2
Cold water supply:
Min. flow pressure: approx. 2.5 bar
Max. flow pressure: 6 bar
descaling
6 0
1
3 5 0
3
Seite
Installation:
• Wall installation
• Installation on tiles
• Water connection via 2 flexible
connecting tubes 1/2", DIN 8 incl.
wall connection bend (supplied as
accessory)
• Connect metal tubes to existing warm
and cold water supply.
System description
Selector 1
Massage:
Hand spray:
Head spray:
Selector 2
Temperature of choice can be set.
02.
03.
Vaseline
01.
