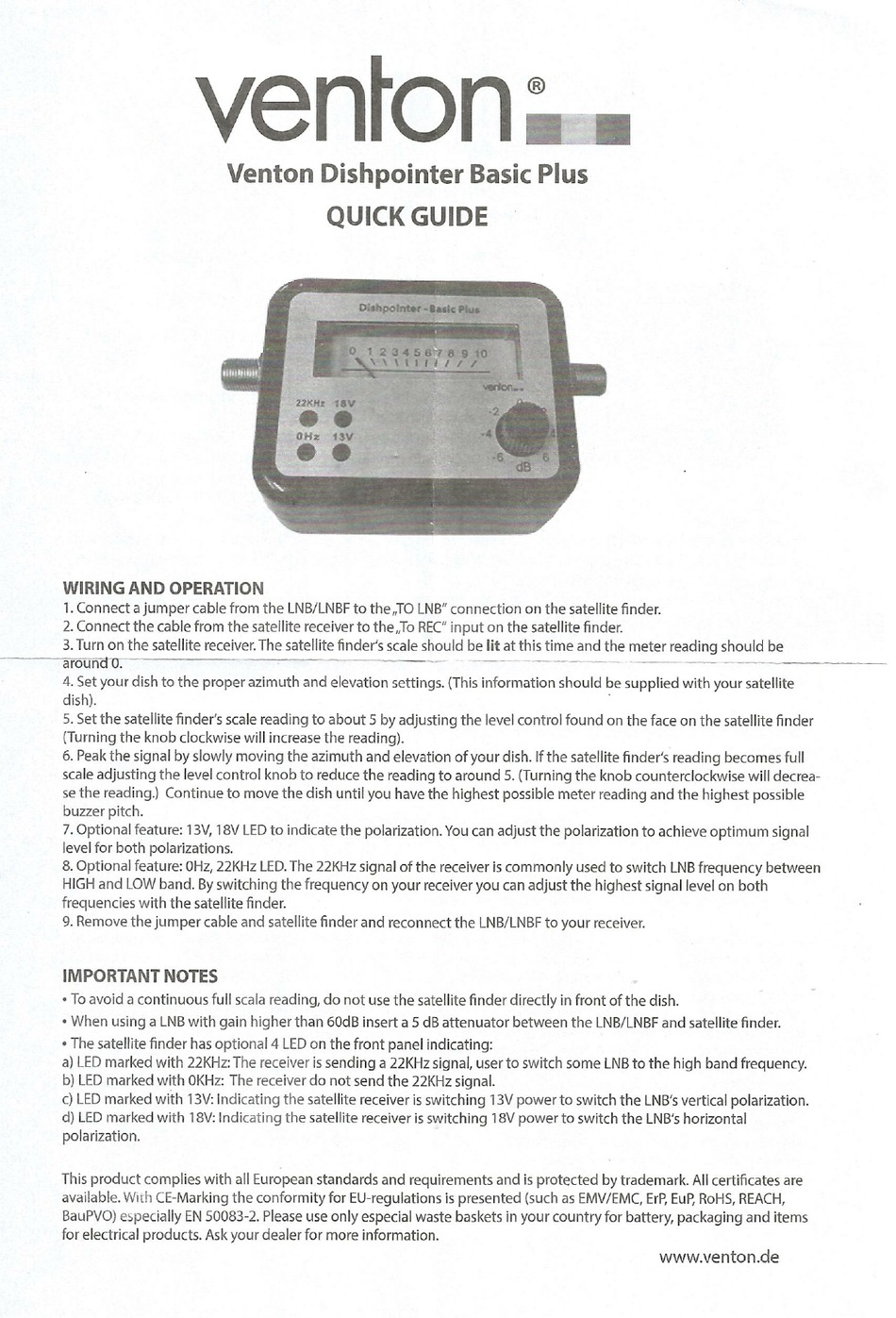

Venton Dishpointer Basic Plus
QUICK GUIDE
WIRING AND OPERATION
1. Connect a jumper cable from the LNB/LNBF to the ‚TO LNB" connection on the satellite finder.
2. Connect the cable from the satellite receiver to the,To REC' input on the satellite finder.
3. Turn on the satellite receiver. The satellite finder's scale should be lit at this time and the meter reading should be
around 0 . SR = =
4. Set your dish to the proper azimuth and elevation settings. (This information should be supplied with your satellite
dish). j
5. Set the satellite finder's scale reading to about 5 by adjusting the level control found on the face on the satellite finder
(Turning the knob clockwise will increase the reading).
6. Peak the signal by slowly moving the azimuth and elevation of your dish. If the satellite finder's reading becomes full
scale adjusting the level control knob to reduce the reading to around 5. (Turning the knob counterclockwise will decrea-
se the reading.) Continue to move the dish until you have the highest possible meter reading and the highest possible
buzzer pitch.
7. Optional feature: 13V, 18V LED to indicate the polarization. You can adjust the polarization to achieve optimum signal
level for both polarizations.
8. Optional feature: OHz, 22KHz LED. The 22KHz signal of the receiver is commonly used to switch LNB frequency between
HIGH and LOW band. By switching the frequency on your receiver you can adjust the highest signal level on both
frequencies with the satellite finder.
9. Remove the jumper cable and satellite finder and reconnect the LNB/LNBF to your receiver.
IMPORTANT NOTES
« To avoid a continuous full scala reading, do not use the satellite finder directly in front of the dish.
* When using a LNB with gain higher than 60dB insert a 5 dB attenuator between the LNB/LNBF and satellite finder.
« The satellite finder has optional 4 LED on the front panel indicating:
a) LED marked with 22KHz: The receiver is sending a 22KHz signal, user to switch some LNB to the high band frequency.
b) LED marked with OKHz: The receiver do not send the 22KHz signal.
©) LED marked with 13V: Indicating the satellite receiver is switching 13V power to switch the LNB's vertical polarization.
d) LED marked with 18V: Indicating the satellite receiver is switching 18V power to switch the LNB's horizontal
polarization.
This product complies with all European standards and requirements and is protected by trademark. All certificates are
available. With CE-Marking the conformity for EU-regulations is presented (such as EMV/EMC, ErP, EuP, RoHS, REACH,
BauPVO) especially EN 50083-2. Please use only especial waste baskets in your country for battery, packaging and items
for electrical products. Ask your dealer for more information.
www.venton.de
