BGS technic 8715 Schnellstartanleitung Seite 2

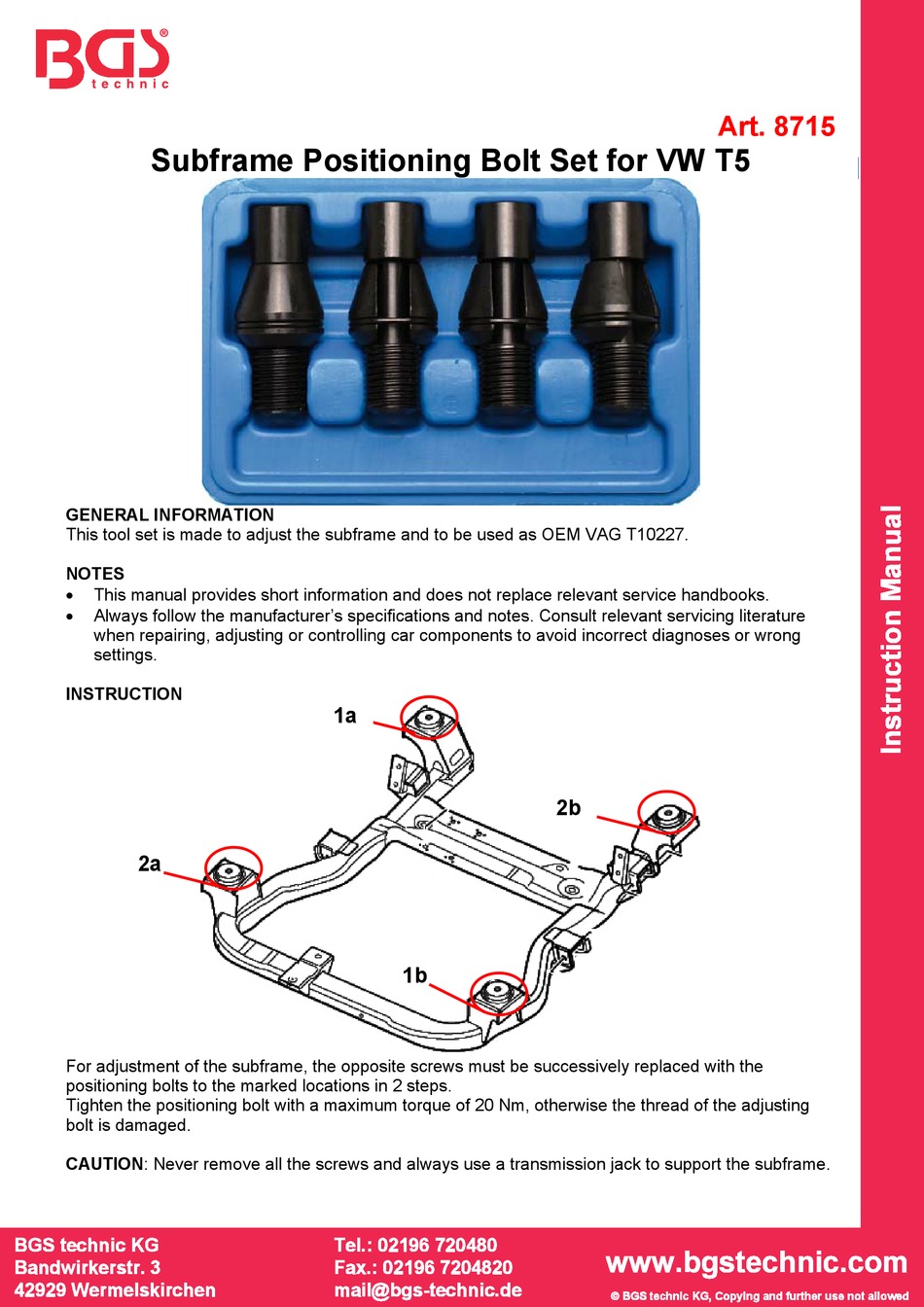

Subframe Positioning Bolt Set for VW T5
GENERAL INFORMATION
This tool set is made to adjust the subframe and to be used as OEM VAG T10227.
NOTES

This manual provides short information and does not replace relevant service handbooks.

Always follow the manufacturer's specifications and notes. Consult relevant servicing literature
when repairing, adjusting or controlling car components to avoid incorrect diagnoses or wrong
settings.
INSTRUCTION
2a
For adjustment of the subframe, the opposite screws must be successively replaced with the
positioning bolts to the marked locations in 2 steps.
Tighten the positioning bolt with a maximum torque of 20 Nm, otherwise the thread of the adjusting
bolt is damaged.
CAUTION: Never remove all the screws and always use a transmission jack to support the subframe.
