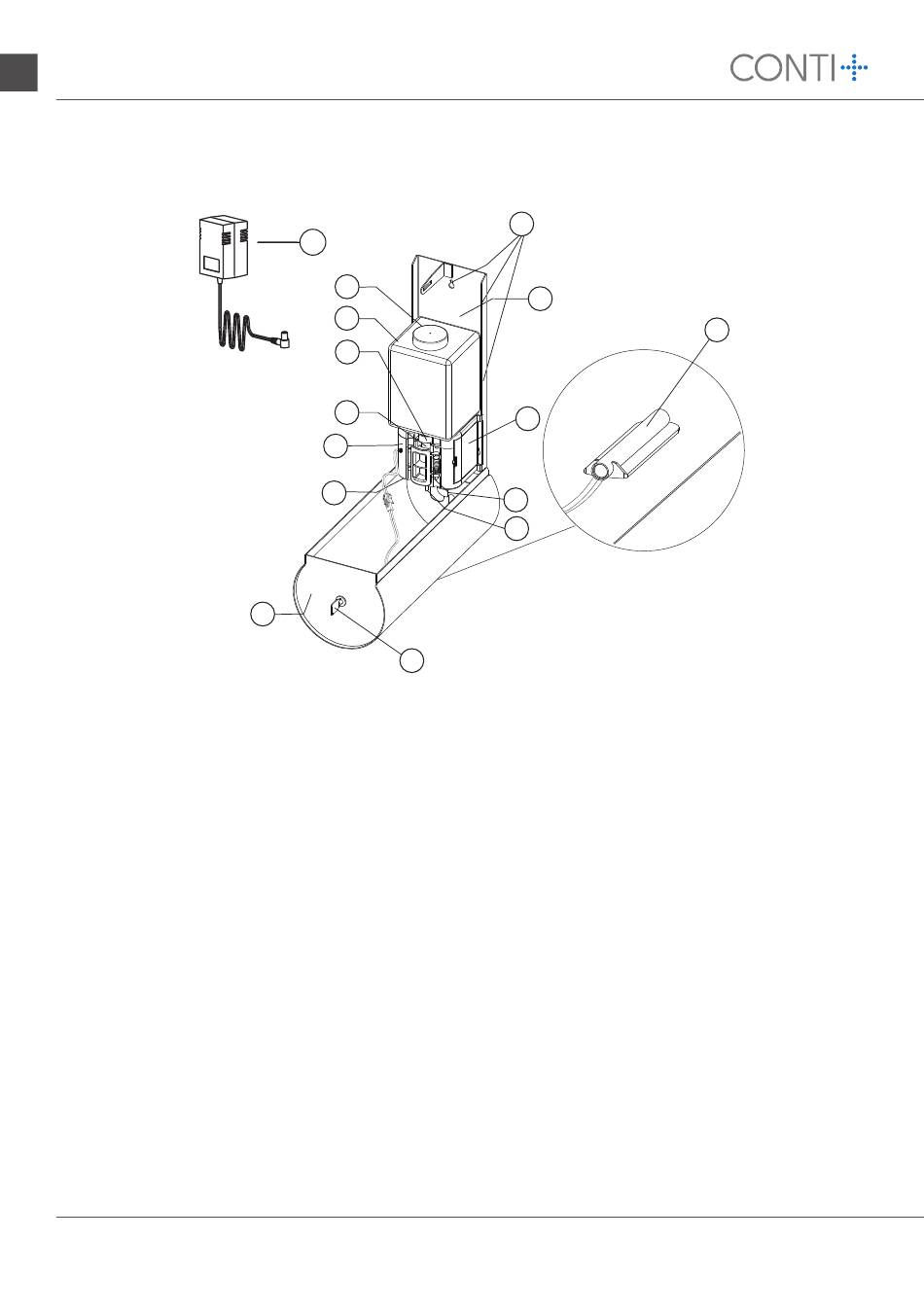

System overview

Not included as standard
component
Parts overview
1. Special key
2. Switch (the dispenser automatically
deactivates when the housing (part
no. 6) is opened)
3. Sensor unit
4. Signal lamp for display of dosages
and battery status
5. Battery unit
6. Housing
Soap container
7. Cover
8. Soap container
9. Collecting sleeve between silicone
tube and soap container
10. Silicone hose
11. Dosing nozzle
12. Control box
CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Deutschland | Tel. +49 641 98221 0 | Fax: +49 641 98221 50 | info@conti.plus
www.conti.plus | Druckfehler und Irrtümer sowie technische und maßliche Änderungen vorbehalten. | Errors and technical changes remain reserved.
KONSTRUKTIONSDIAGRAMM
15
7
8
9
10
12
3
6
13
14
5
2
11
1
For mounting
13. Three holes (for wall mounting)
14. Mounting plate
15. 6 VDC transformer (for connection
to 230 VAC)
4
