Hera Dynamic-Controller 24V
Recessed Radio Telecontrol 75W
Intended use
Dynamic-Controller to connect to electronic safety isolating converter LED 24/...W with recessed radio
telecontrol; this product is for indoor use only.
1. Disconnect from the mains supply before attempting to mount/ dismount the lighting fixture.
2. Faulty parts should only be replaced with original parts.
3. Always fully insert all plug connections.
4. Only approved for connection to Hera LED transformers 24V with a maximum output power of
200 W.
5. Hera grants no warranty when other LED converters as the prescribed converters are used.
6. The total load may not exceed the nominal load of the converter.
7. The specified installation distances of the converter must be maintained.

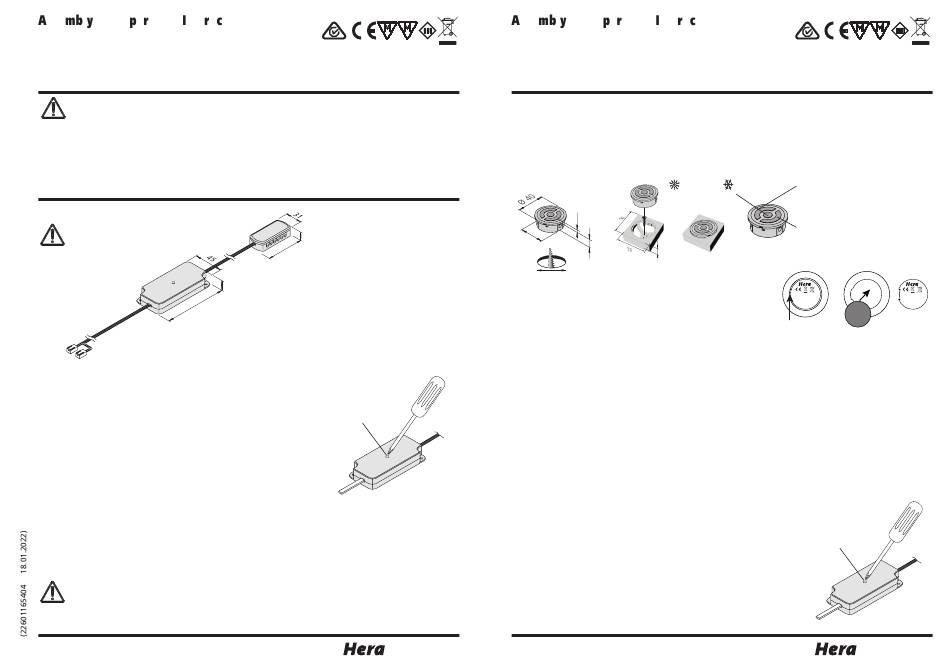

Assembly dimensions
both LED 24 plugs must be inserted
in the 12-way distributor of the
converter
9 6
to the previous 12-way distributor of converter LED 24/...W
Assembly
1. Connect the LED converter to the mains.
2. Connect the Dynamic-Controller to the distributor of the converter.
Point 3 - 6 are only necessary to adjust further Dynamic-Controller to
the same recessed radio telecontrol:
3. Push the „Study Button" in the receiver with a sharpen object such
as screwdriver or refill for a ballpoint pen. The indicator lamp turns
on blue.
4. Press the „dim up" and „dim down" push buttons one after the
other. The indicator lamp of the Dynamic-Controller turns off.
5. After finish above steps, the indicator lamp is still on. It means
learning is failed. Please repeat the process again.
6. The Dynamic LED luminaires can now be controlled with the re-
cessed radio telecontrol.
A permanent flashing of the indicator lamp has no influence on the normal operation.
Reproduction of this document in whole or part is forbidden.
5
1 6 ,
7 0
1 6
Study Button
Hera GmbH & Co. KG
®
Dieselstraße 9
32130 Enger / Germany
sse l and o e ating nst u tions
Hera Dynamic-Controller 24V
Recessed Radio Telecontrol 75W
Intended use
Dynamic-Controller to connect to electronic safety isolating converter LED 24/...W with recessed radio
telecontrol; this product is for indoor use only.
Recessed Radio Telecontrol
The remote control has a remote distance of max. 15m. The Dynamic-Controller has a memory function of the
performance before a disconnection from the mains. After reestablish the mains connection the Dynamic LED
luminaires operate in the performance before the power failure.
Central push button
short keystroke: on / off
permanent keystroke: Free adjustable
colour appearance between
2700K and
3 , 3
Ø 3
5
1 2
1 6
ø35 mm
surface mounting
ring
1. Open the battery compartment on the back of the radio
telecontrol and insert the enclosed Lithium Battery
CR2032 3V.
2. Push radio telecontrol into drill hole or surface mounting ring. Observe marking on the back (Hera-Logo
face upwards).
Multiway switching
It is possible to program up to 7 remote controls to one or more controllers.
When using the multiway switching it could be possible to press the button of the remote control twice. This
is no failure!
A combination of several Hera remote controls (mounting, recessed, 4-Channel, Flush-mounted)
is possible.
Reset-function
Press the study button three times (within 1 sec.) to delete all
programmed remote controls.
