Temperature inquiry

The temperature display mask is called up for 10 seconds by pressing the
button (5) with the function display "Temperature Inquiry" (12).
28
29

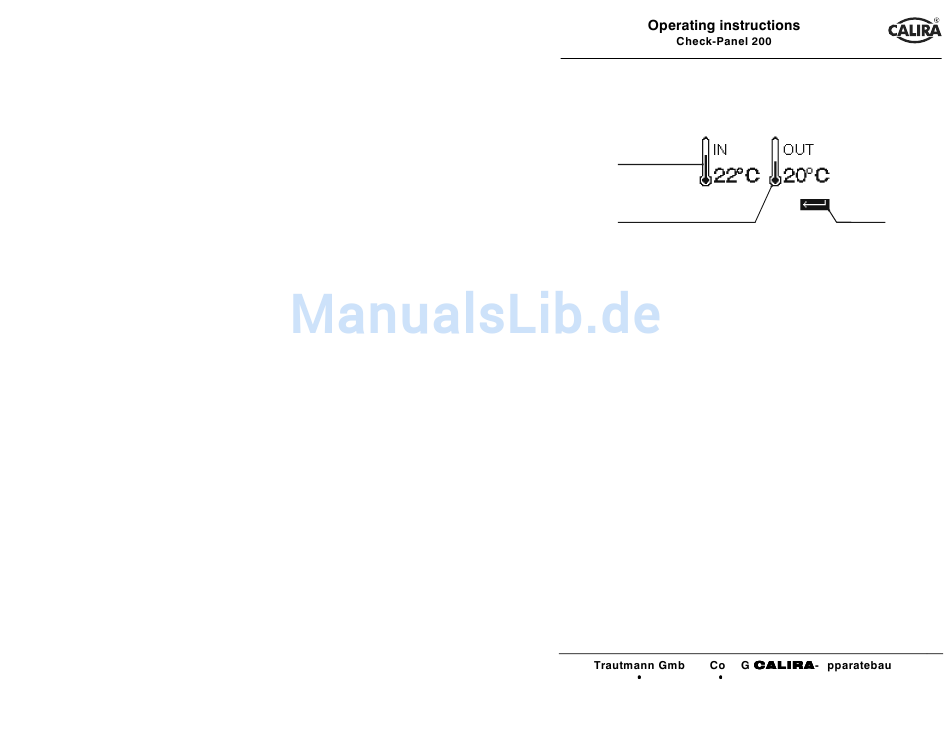

Fig. 6: Temperature display mask
28 Display for inside temperature in °C.
29 Display for outside temperature in °C.
30 Button function display "Exit temperature display". By pressing
button (5) marked with this symbol, the temperature display can be
ended before the 10 seconds are complete and the standby mask
(Fig. 2) can be called up.
Parallel operation display, starter and supply battery
As soon as the starter and supply battery are switched into parallel operation by
the cut-off relay in the fuse-junction box ,power supply (EVS) or a CALIRA
charging device the parallel operation display symbol (13) appears in the
display.

Spare gas bottle display

The spare gas bottle display symbol (14) appears in the display as soon as the
gas supply has been taken over by the spare bottle. It is necessary to have the
gas supply system transmit a corresponding control signal to a suitable fuse-
junction box or power supply (EVS) in order to carry this out.

Mains charging display

The mains charging symbol (15) appears in the display when the supply battery
is charged from the 230V mains.
! " #
