Active shunt connections

Pin 1
51 52

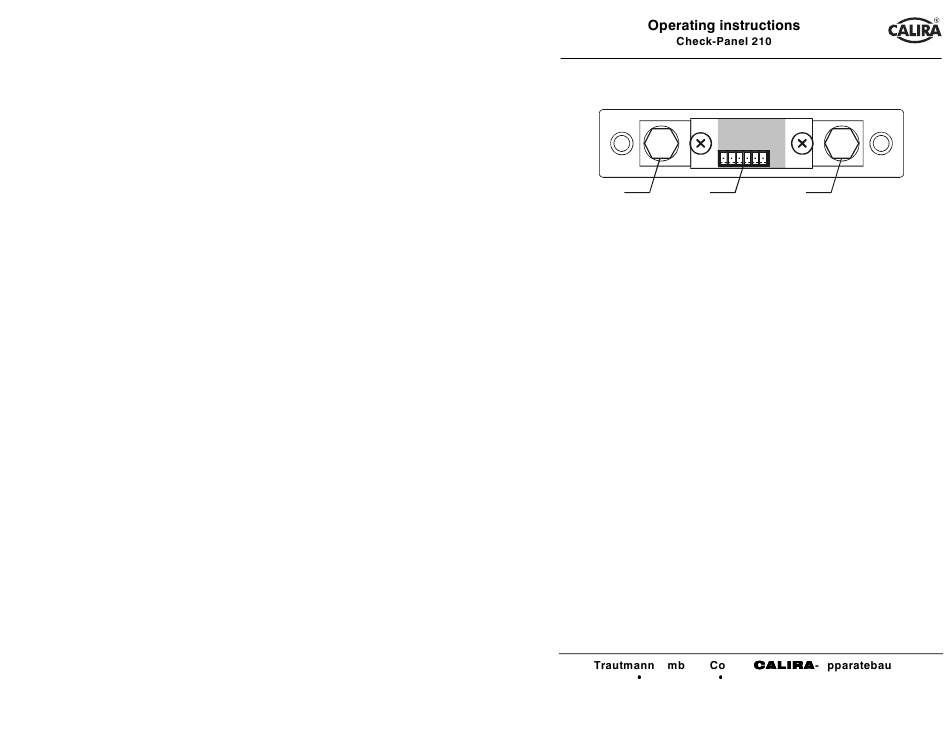

Fig. 10: Active shunt connections
51 Screw connection V- (minus consumer).
52 Connector 6 pole, connection cable active shunt – CP 210 (Pin 1-4),
+12V voltage supply to active shunt (Pin 6), Pin 5 not used.
53 Screw connection B- (minus battery).
! " # $
