Changing Lights
Occasionally, the lights inside the car may need to be replaced. To replace the
lamps follow the disassembly instructions on the following illustrations.
Replacement lamps can be obtained directly through MTH Electric Trains (Order
online: www.mthtrains.com, e-mail: parts@mth-railking.com,Fax: 410-423-0009,
Phone: 410-381-2580, Mail: 7020 Columbia Gateway Drive, Columbia MD 21046-
1532, ).

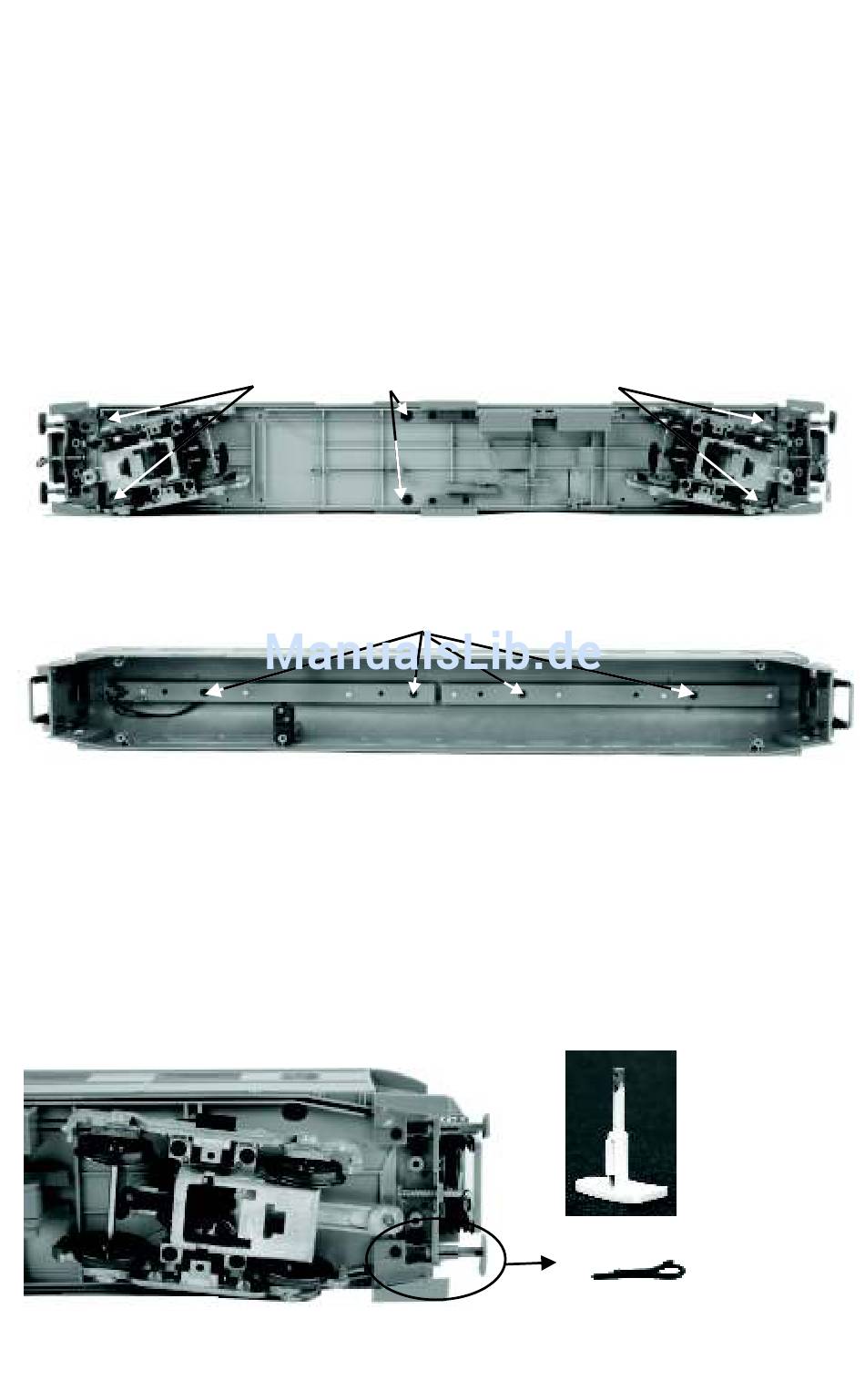

First you will need to remove the 6 body mounting screws from the undercarriage.
Then Gently remove the car body from the undercarriage.
Body Mounting Screws
Body Mounting Screws
Once the body is removed you will see the two light boards. Remove the 4 screws
and lower the boards out. Replace with new light boards and reassemble in reverse
order.
Remove Screws
Changing Buffers
For your convenience MTH has included extra buffers with this set. If your buffers
become damaged and you wish to change them follow the steps below.
Remove the cotter pin and pull out the old buffer (be careful not to loose the
spring). To replace simply slide the new buffer into place and attach with a new pin.
Once the new pin is in place bend out the pin to secure it.
Buffer
Pull out
Cotter Pin
Premier French SNCF Passenger Car
6
