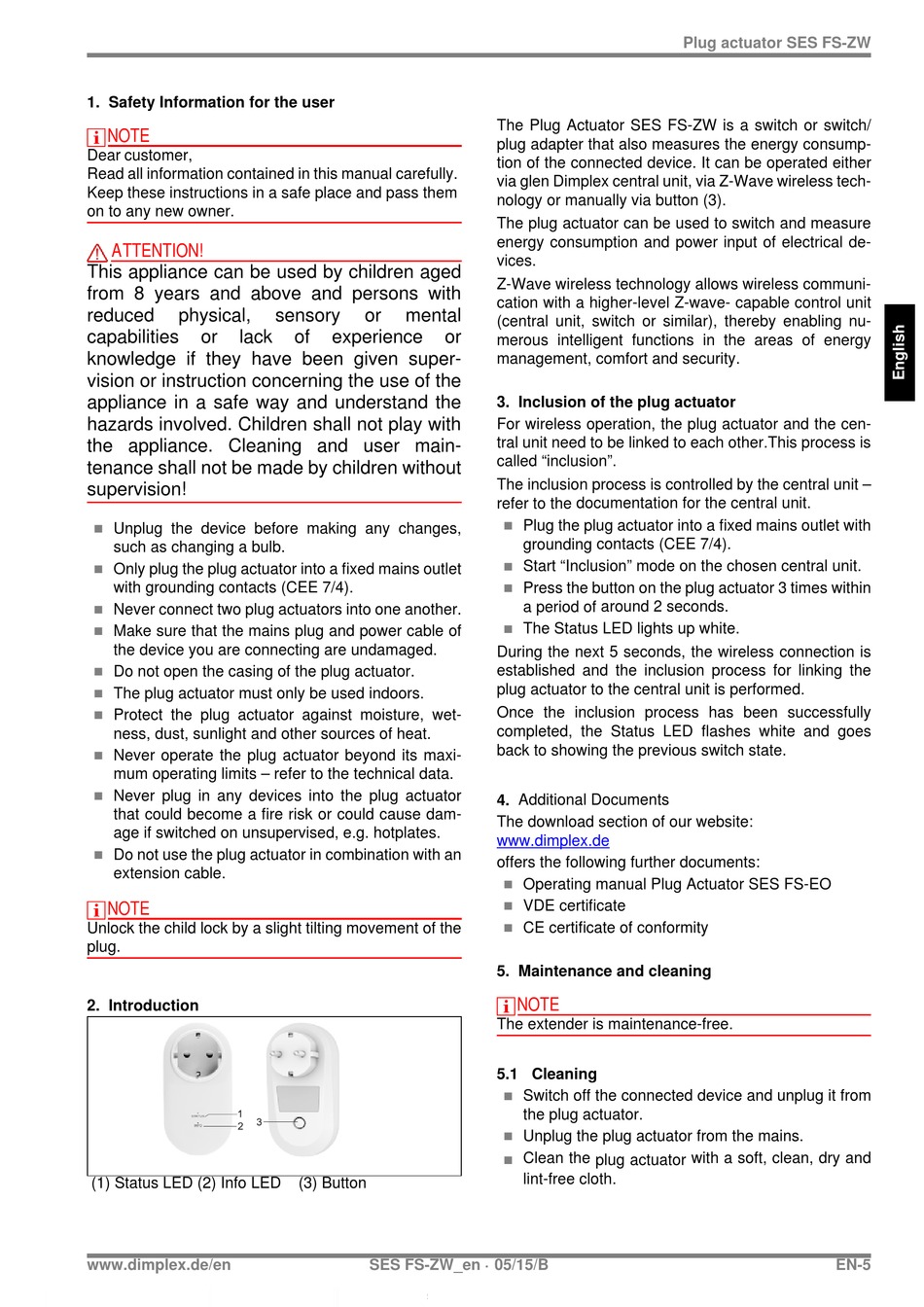

1. Safety Information for the user
NOTE NOTE
Dear customer,
Read all information contained in this manual carefully.
Keep these instructions in a safe place and pass them
on to any new owner.
ATTENTION!
This appliance can be used by children aged
from 8 years and above and persons with
reduced physical,
capabilities or lack
knowledge if they have been given super-
vision or instruction concerning the use of the
appliance in a safe way and understand the
hazards involved. Children shall not play with
the appliance. Cleaning and user main-
tenance shall not be made by children without
supervision!
 Unplug the device before making any changes,
such as changing a bulb.

Only plug the plug actuator into a fixed mains outlet
with grounding contacts (CEE 7/4).

Never connect two plug actuators into one another.

Make sure that the mains plug and power cable of
the device you are connecting are undamaged.

Do not open the casing of the plug actuator.
 The plug actuator must only be used indoors.

Protect the plug actuator against moisture, wet-
ness, dust, sunlight and other sources of heat.
 Never operate the plug actuator beyond its maxi-
mum operating limits – refer to the technical data.

Never plug in any devices into the plug actuator
that could become a fire risk or could cause dam-
age if switched on unsupervised, e.g. hotplates.
 Do not use the plug actuator in combination with an
extension cable.
NOTE NOTE
Unlock the child lock by a slight tilting movement of the
plug.
2. Introduction
(1) Status LED (2) Info LED
www.dimplex.de/en
sensory or mental
of experience or
(3) Button
SES FS-ZW_en · 05/15/B
The Plug Actuator SES FS-ZW is a switch or switch/
plug adapter that also measures the energy consump-
tion of the connected device. It can be operated either
via glen Dimplex central unit, via Z-Wave wireless tech-
nology or manually via button (3).
The plug actuator can be used to switch and measure
energy consumption and power input of electrical de-
vices.
Z-Wave wireless technology allows wireless communi-
cation with a higher-level Z-wave- capable control unit
(central unit, switch or similar), thereby enabling nu-
merous intelligent functions in the areas of energy
management, comfort and security.
3. Inclusion of the plug actuator
For wireless operation, the plug actuator and the cen-
tral unit need to be linked to each other.This process is
called "inclusion".
The inclusion process is controlled by the central unit –
refer to the documentation for the central unit.

Plug the plug actuator into a fixed mains outlet with
grounding contacts (CEE 7/4).

Start "Inclusion" mode on the chosen central unit.
 Press the button on the plug actuator 3 times within
a period of around 2 seconds.
 The Status LED lights up white.
During the next 5 seconds, the wireless connection is
established and the inclusion process for linking the
plug actuator to the central unit is performed.
Once the inclusion process has been successfully
completed, the Status LED flashes white and goes
back to showing the previous switch state.
4. Additional Documents
The download section of our website:
www.dimplex.de
offers the following further documents:
 Operating manual Plug Actuator SES FS-EO

VDE certificate

CE certificate of conformity
5. Maintenance and cleaning
NOTE NOTE
The extender is maintenance-free.
5.1 Cleaning

Switch off the connected device and unplug it from
the plug actuator.

Unplug the plug actuator from the mains.
Clean the plug actuator with a soft, clean, dry and

lint-free cloth.
Plug actuator SES FS-ZW
EN-5
