Kingspan FPW Montageanleitung Seite 37

24
26
2x
25
2x

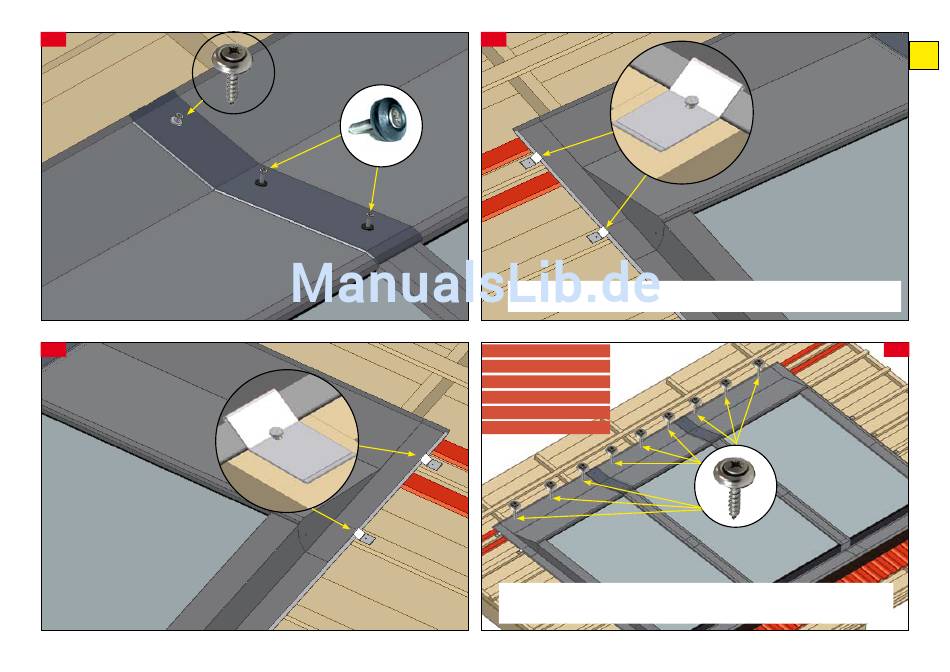

After fixing the coveryplates the left and the right backparts must be fixed on
the sides with 2 fixationclips and nails (2 left and 2 right)
3 Schrauben pro Kollektor
3 screws per collector
3 vis par collecteur
3 pijas por colector
3 viti per colletore
her kollektor icim 3 civata
The backparts have to be fixed finaly with 3 screws through every backpart
and the roofbattens as in the picture showed. The holes for this fixation must
be drilled through the backparts.
10
27
3x
