Rayson SD-1201 Anweisung

I
*Metric(mm) *Imperial(inch)
*Métrico(mm) *Imperial(Pulgada)
*Metrico(mm) *Imperiale(Pollici)
*Métrique(mm) *Impérial(Pouce)
*Metrisch(mm) *Kaiserliche(Zoll)
6
8
10
12
14
16
19
22
25
28 1-1/8
32 1-1/4
38 1-1/2
45 1-3/4
51
：
II
Drehung
4mm
5mm
6mm
*Binding Capacity(sheets)
*Capacidad de encuadernación(Hojas)
*Capacità di rilegatura(Foglia)
*Capacité de Reliure(Feuilles)
*Bindekapazität(Blatt)
1/4 2~20
5/16 21~35
3/8 36~45
1/2 46~80
9/16 84~100
5/8 101~120
3/4 121~140
7/8 141~170
1 171~200
201~225
226~250
251~310
311~360
2 361~410
(20 lb / 80 g)

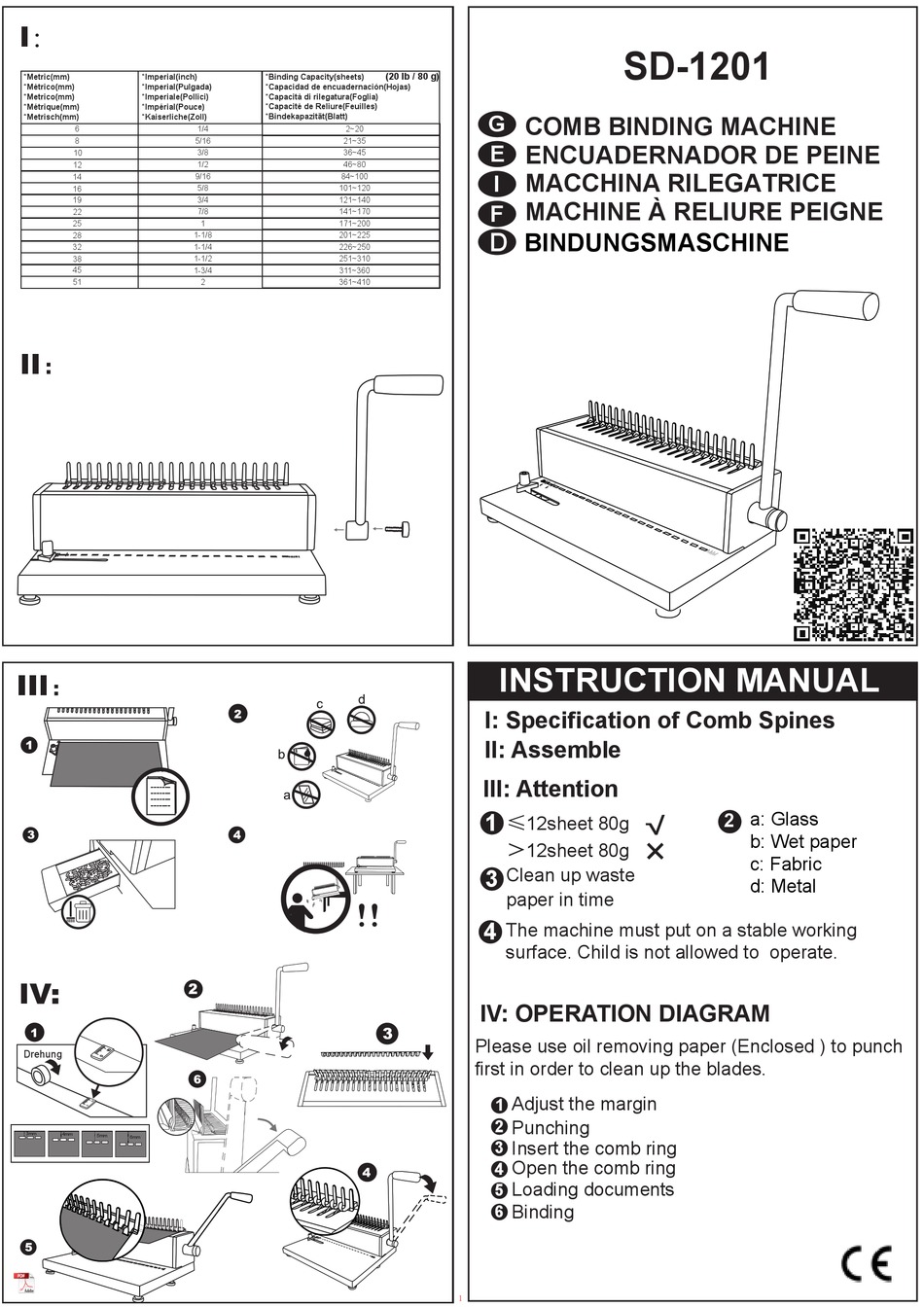

COMB BINDING MACHINE
G
ENCUADERNADOR DE PEINE
E
MACCHINA RILEGATRICE
I
MACHINE À RELIURE PEIGNE
F
BINDUNGSMASCHINE
D
INSTRUCTION MANUAL
I: Specification of Comb Spines
II: Assemble
III: Attention
≤
1
12sheet 80g
＞
12sheet 80g
Clean up waste
3
paper in time
4 The machine must put on a stable working
surface. Child is not allowed to operate.
IV: OPERATION DIAGRAM
Please use oil removing paper (Enclosed ) to punch
first in order to clean up the blades.
Adjust the margin
1
2 Punching
3 Insert the comb ring
Open the comb ring
4
Loading documents
5
Binding
6
SD-1201
a: Glass
2
b: Wet paper
c: Fabric
d: Metal
