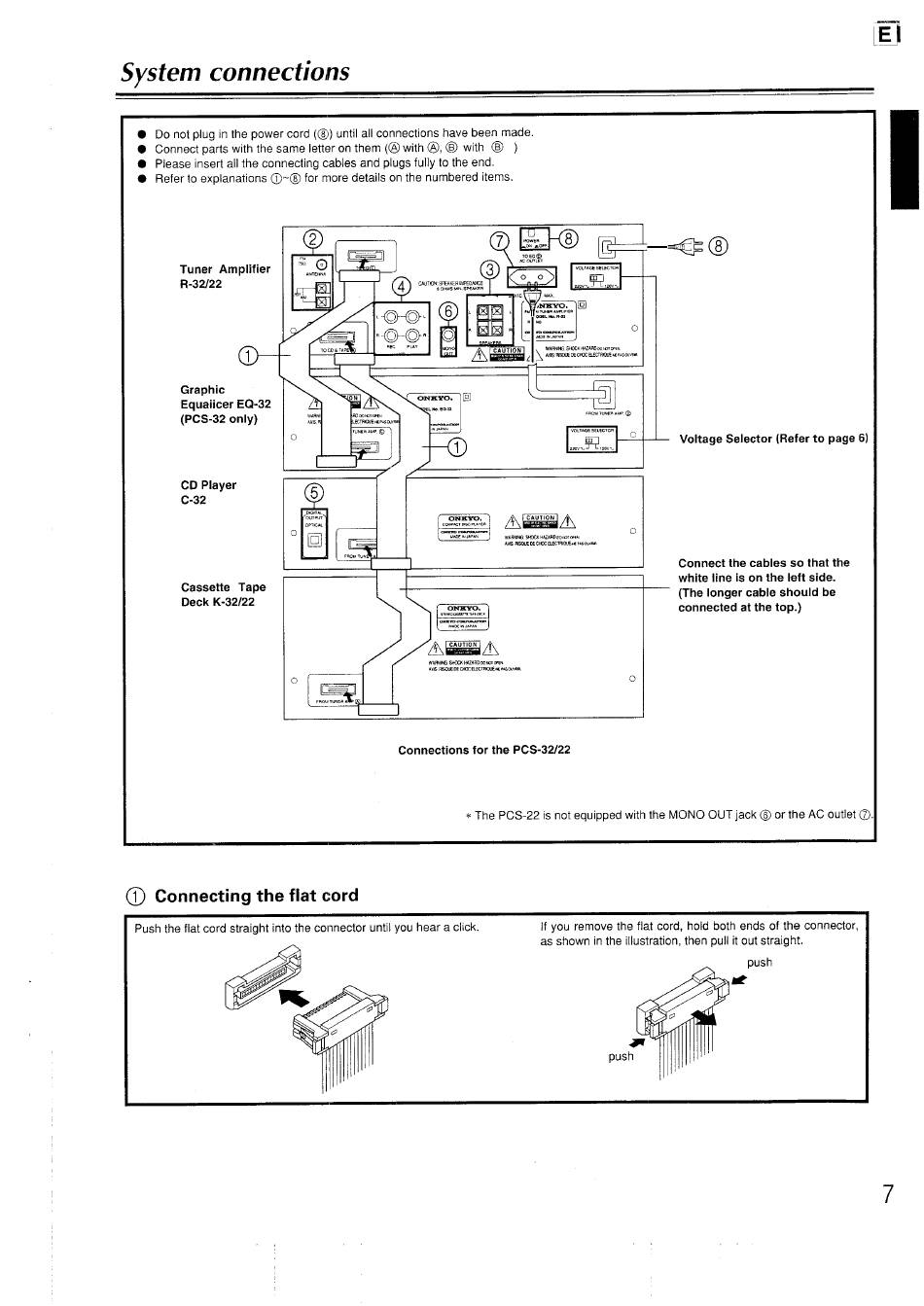

System connections

Do not plug in the powercord (@) until all connectionshave beenmade.
Connect p artswith thesameletteronthem(@with0, @ with @ )
Pleaseinsert all the connectingcablesand plugs fully to the end.
Referto explanations0-6) for moredetailson the numbereditems.
Tuner Amplifier
R-32/22
1
Graphic
Equaiicer EQ-32
(PCS-32 only)
CD Player
C-32
Cassette Tape
Deck K-32/22
O
Connecting the flat cord
Push the flat cord straight into the connector until you hear a click.
2
6
1
5
Connections for the PCS-32/22
* The PCS-22 is not equipped with the MONO OUT jack@ or the AC outlet O.
4
3
If you remove the flat cord, hold both ends Of the connector,
as shown in the illustration, then pull it out straight.
push
Voltage Selector (Refer to page 6)
Connect the cables so that the
white line is on the left side.
(The longer cable should be
connected at the top.)
push
