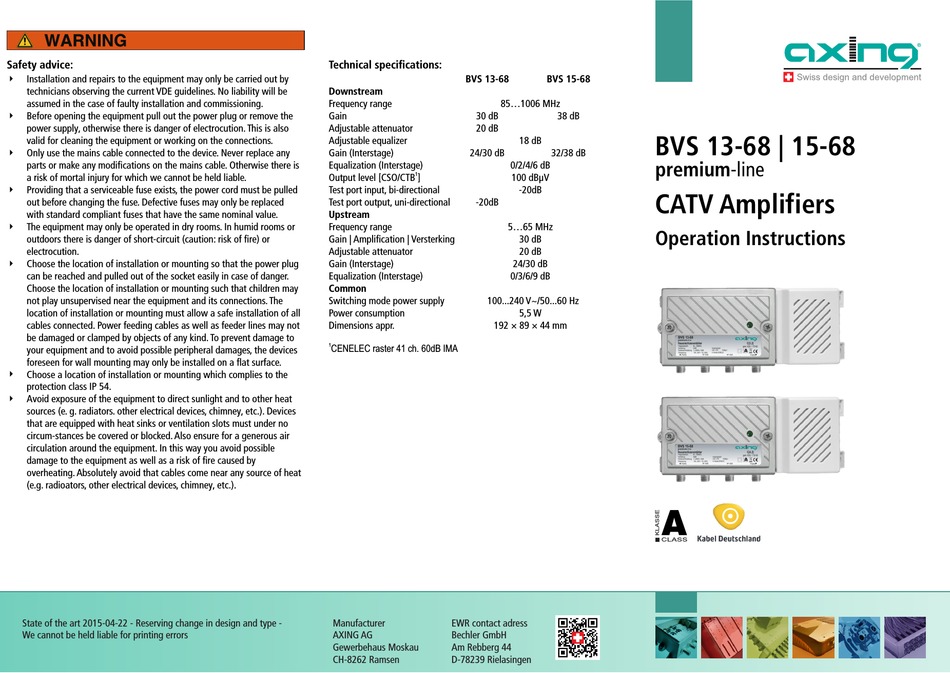

axing BVS 13-68 Betriebsanleitung Seite 3

Safety advice:
4 Installation and repairs to the equipment may only be carried out by
technicians observing the current VDE guidelines. No liability will be
assumed in the case of faulty installation and commissioning.
4 Before opening the equipment pull out the power plug or remove the
power supply, otherwise there is danger of electrocution. This is also
valid for cleaning the equipment or working on the connections.
4 Only use the mains cable connected to the device. Never replace any
parts or make any modifications on the mains cable. Otherwise there is
a risk of mortal injury for which we cannot be held liable.
4 Providing that a serviceable fuse exists, the power cord must be pulled
out before changing the fuse. Defective fuses may only be replaced
with standard compliant fuses that have the same nominal value.
4
The equipment may only be operated in dry rooms. In humid rooms or
outdoors there is danger of short-circuit (caution: risk of fire) or
electrocution.
4
Choose the location of installation or mounting so that the power plug
can be reached and pulled out of the socket easily in case of danger.
Choose the location of installation or mounting such that children may
not play unsupervised near the equipment and its connections. The
location of installation or mounting must allow a safe installation of all
cables connected. Power feeding cables as well as feeder lines may not
be damaged or clamped by objects of any kind. To prevent damage to
your equipment and to avoid possible peripheral damages, the devices
foreseen for wall mounting may only be installed on a flat surface.
4 Choose a location of installation or mounting which complies to the
protection class IP 54.
4 Avoid exposure of the equipment to direct sunlight and to other heat
sources (e. g. radiators. other electrical devices, chimney, etc.). Devices
that are equipped with heat sinks or ventilation slots must under no
circum-stances be covered or blocked. Also ensure for a generous air
circulation around the equipment. In this way you avoid possible
damage to the equipment as well as a risk of fire caused by
overheating. Absolutely avoid that cables come near any source of heat
(e.g. radioators, other electrical devices, chimney, etc.).
State of the art 2015-04-22 - Reserving change in design and type -
We cannot be held liable for printing errors
Technical specifications:
BVS 13-68
Downstream
Frequency range 85...1006 MHz
Gain 30 dB
Adjustable attenuator 20 dB
Adjustable equalizer
Gain (Interstage) 24/30 dB
Equalization (Interstage)
1
Output level [CSO/CTB ]
Test port input, bi-directional
Test port output, uni-directional -20dB
Upstream
Frequency range 5...65 MHz
Gain | Amplification | Versterking
Adjustable attenuator
Gain (Interstage)
Equalization (Interstage)
Common
Switching mode power supply 100...240 V~/50...60 Hz
Power consumption
Dimensions appr. 192 × 89 × 44 mm
1
CENELEC raster 41 ch. 60dB IMA
Manufacturer EWR contact adress
AXING AG Bechler GmbH
Gewerbehaus Moskau Am Rebberg 44
CH-8262 Ramsen D-78239 Rielasingen
BVS 15-68
38 dB
BVS 13-68 | 15-68
18 dB
32/38 dB
0/2/4/6 dB premium-line
100 dBµV
-20dB
CATV Amplifiers
Operation Instructions
30 dB
20 dB
24/30 dB
0/3/6/9 dB
5,5 W
