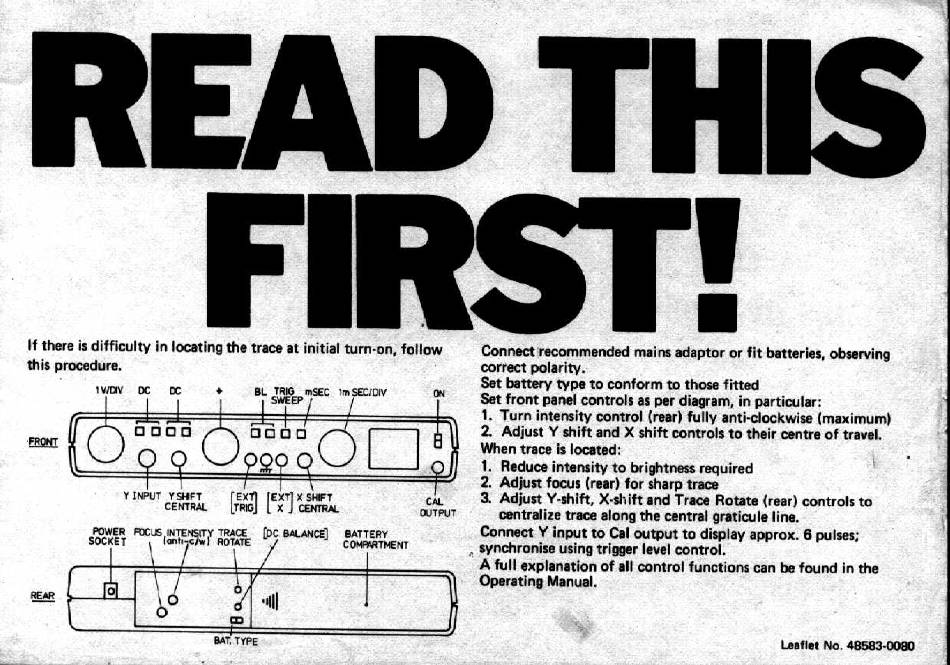

READ THIS
FIRST!
If thereisdifficulty in locating thetraceat initialturn-on, f ollow
this procedure.
Iwav DC DC
ooaa
Y*FT
CENTRAL
R POWE nc1S
BL TRIG 1m
SWEEP
OOO
[DC BALANCE)BATTERY
BAT,TYPE
Connectrecommended m ainsadaptoror fit batteries, o bserving
correct polarity.
Set battery type to conform to those fitted
Set front panelcontrols asper diagram,in particular:
I. Turn intensitycontrol (rear)fully anti•clockwise (maximum)
2. Adjust Y shift and X shift controls to their centre of travel.
When trace is located:
1. Reduceintensity to brightnessrequired
2. Adjust focus (rear) for sharptrace
3. Adjust Y-shift, *shift and Trace Rotate (rear) controls to
a.JTPUT centralizetrace along the central graticule line.
ConnectY input to Caloutput to displayapprox.6 pulses;
synchronise using trigger level control.
A full explanation of all control functions can befound in the
Operating Manual.
Leaflet No. 48583-0080
