Exor MicroEdge Plug-in LTE/4G Installationsanleitung

MANXMP011U001 V.1.01 07.07.2025
MicroEdge Plug-in
LTE/4G
Installation guide
Installationsanleitung
Notice d`installation
Guía de instalación
Guida di installazione

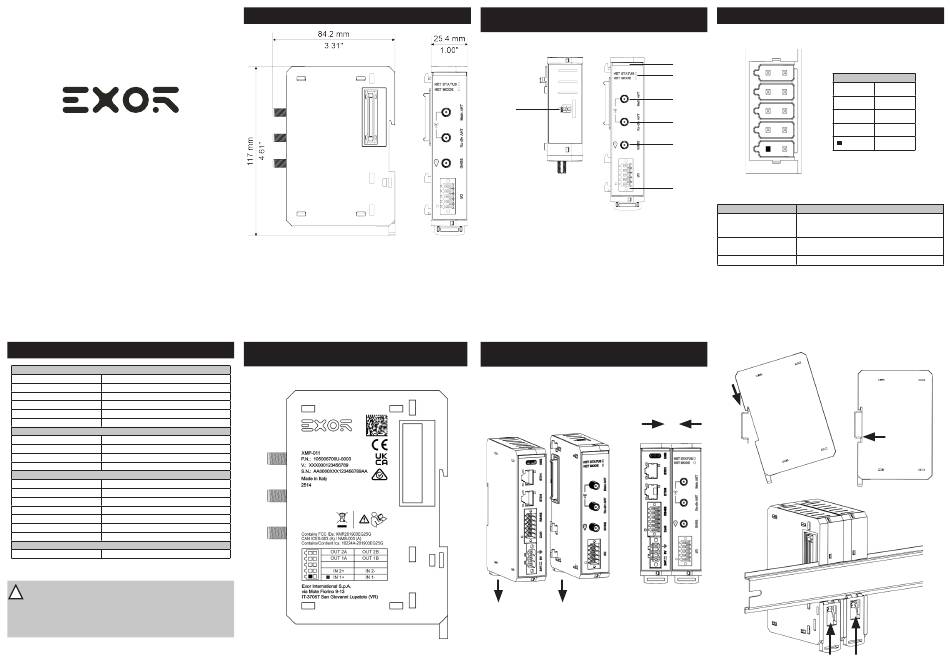

4 TECHNICAL DATA/ TECHNISCHE DATEN/ DONNÉES TECHNIQUES/
DATOS TÉCNICOS/ DATI TECNICI
Interface
Antenna 50Ω, SMA and RP-SMA Female connectors
Digital input 2 (24Vdc with optical isolation)
Digital output 2 (SSR with optical isolation)
LED 1 RGB, 2 green (net status)
SIM slot microSIM
GNSS GPS, GLONASS, BeiDou/Compass, Galileo, QZSS
Antenna LTE/4G
Impedance 50-ohm
Frequency 700-960MHz / 1700-2700MHz
Max Gain (*) 2.0dBi
Connector SMA
Environment Conditions
Operating Temperature -20°C to +60°C
Storage Temperature -30°C to +70°C
Altitude 2000m
Operating / Storage Humidity 5 - 85% RH, non condensing
Pollution Degree 2
Overvoltage Category II
Protection Class IP20 (not UL evaluated)
Weight
Weight 0.140 Kg
(*) Antennas with equal or lower gain are allowed.
The position of the antenna must always respect the minimum distance of 20 cm
!
from the human body for the protection of human health / Die Position der Antenne
muss stets einen Mindestabstand von 20 cm zum menschlichen Körper einhalten,
um die Gesundheit des Menschen zu schützen / La position de l'antenne doit
toujours respecter une distance minimale de 20 cm par rapport au corps humain
pour protéger la santé humaine / La posición de la antena debe respetar siempre
una distancia mínima de 20 cm del cuerpo humano para la protección de la salud
humana / La posizione dell'antenna deve sempre rispettare la distanza minima di
20 cm dal corpo umano per la protezione della salute.
1 DIMENSION/ ABMESSUNGEN/ DIMENSION/
DIMENSIONES/ DIMENSIONI
5 PRODUCT IDENTIFICATION/ PRODUKT IDENTIFIKATION/
IDENTIFICATION DU PRODUIT/
IDENTIFICACIÓN DE PRODUCTO/ IDENTIFICAZIONE PRODOTTO
2 FRONT AND TOP VIEW / VORDER- UND DRAUFSICHT / VUE DE FACE
ET VUE DE DESSUS / VISTA FRONTAL Y VISTA SUPERIOR / VISTA
FRONTALE E VISTA DALL' ALTO
7
1. Device status LED
2. Net status / Net mode
3. LTE Main Antenna
4. LTE RX Diversity Antenna
5. GNSS Antenna
6. Inputs / Outputs
7. MicroSIM Slot
6 INSTALLATION PROCEDURE/ INSTALLATIONSVERFAHREN/
PROCÉDURE D'INSTALLATION/ PROCEDIMIENTO DE INSTALACIÓN/
PROCEDURA D'INSTALLAZIONE
The CPU+PLUGIN coupling can only take place with the clamp lowered.
Die CPU+PLUGIN-Kopplung kann nur bei abgesenkter Klemme erfolgen.
Le couplage CPU+PLUGIN ne peut s'effectuer qu'avec la pince abaissée.
El acoplamiento CPU+PLUGIN sólo se puede realizar con la abrazadera bajada.
L'accoppiamento CPU+PLUGIN può avvenire solo con il morsetto abbassato.
1 2
3 CONNECTIONS / ANSCHLÜSSE / CONNEXIONS / CONEXIONES /
COLLEGAMENTI
1
9 10
2
OUT 2A
3
OUT 1A
4
IN 2+
5
IN 1+
2
1
6
Description
2 digital optoisolated (industrial standard) source active
Input channels (IN 1 & 2) high (+24VDC) inputs. Input voltage range 12÷30VDC
(min 3mA), 35VDC max for 500 ms.
2 digital optoisolated SSR type outputs, 2 contacts each.
Output channels (OUT 1 & 2)
Max load voltage 30VDC, Max load current 0.5A.
Connector type DFMC 0,5/ 4-ST-2,54-RF Phoenix Contact.
4
3
6
Pinout I/O Port
OUT 2B
OUT 1B
IN 2-
IN 1-
Specifications
5
7
