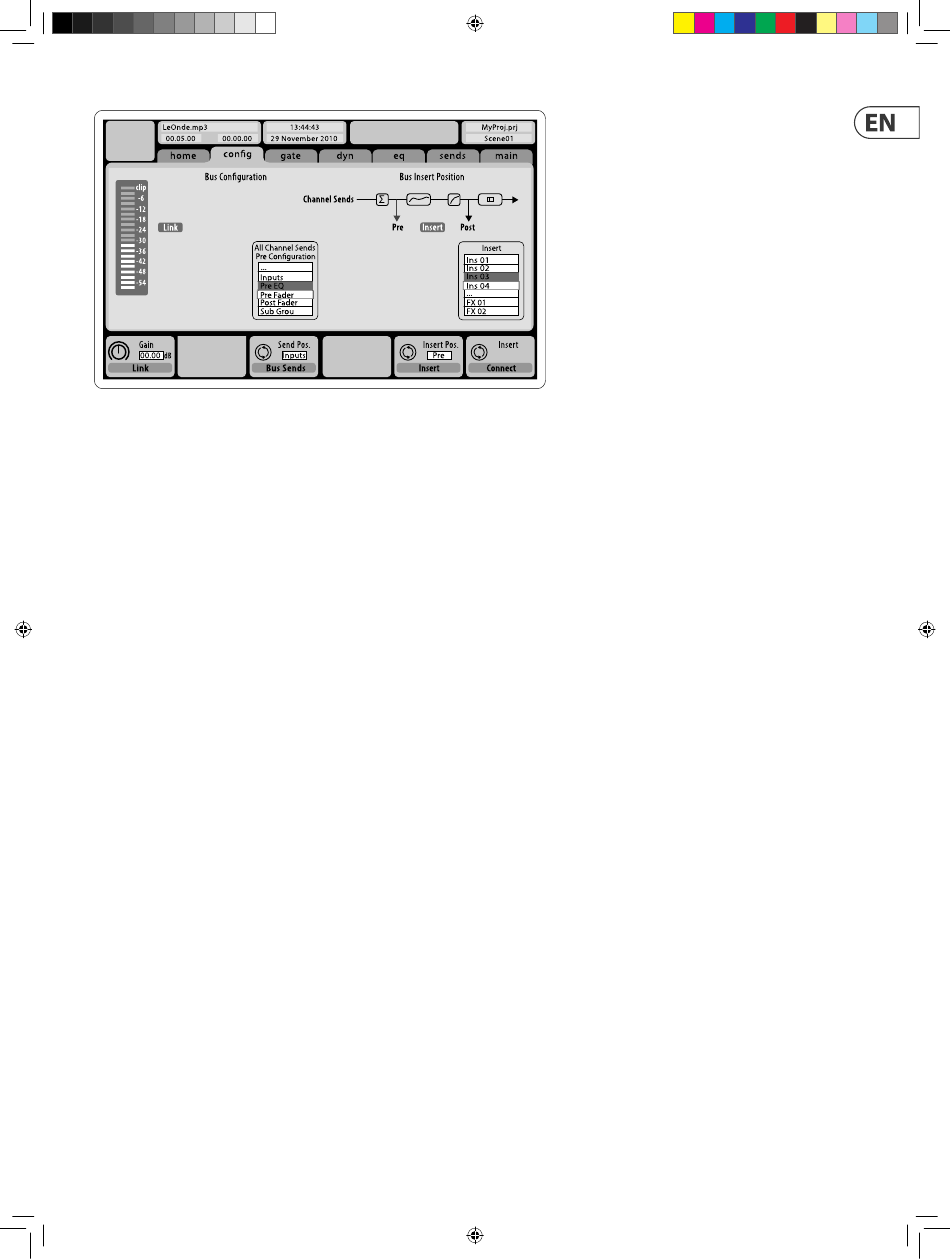

The configuration of Mix Bus Channels 1-16 can
be pre-set (in the Setup/Global page) or can also
be configured on an individual, per-channel basis.
The bus processing includes (in this order):
• Insert point (swappable between post-EQ and
pre-EQ operation)
• 6-band fully parametric EQ
• Compressor/expander (swappable between
post-EQ and pre-EQ operation)
• Bus sends to 6 matrices
• Main LR panning
• Mono/Center level
Main Bus Channels LR/C are always available and
independent from Mix Buses. The processing steps
for this signal path include (in this order):
• Insert point (swappable between post-EQ and
pre-EQ operation)
• 6-band fully parametric EQ
• Compressor/expander (swappable between
post-EQ and pre-EQ operation)
• Bus sends to 6 matrices
Matrix Channels 1-6 are fed exclusively by
MAIN LRC and Mix Bus 1-16 signals. The processing
steps include (in this order):
• Insert point (swappable between post-EQ and
pre-EQ operation)
• 6-band fully parametric EQ
• Compressor/expander (swappable between
post-EQ and pre-EQ operation)
Effects Processing 1-8
The X32 PRODUCER console contains eight
true-stereo internal effects engines.
• FX 1-4 can be configured as side chain or insert
effects, while FX 5-8 can only be used in insert
points of channels or buses
• The returns of side chain FX 1-4 can always be
controlled using the 6th bank (layer) of the input
channels - Effects Returns. Note that the return
signals of FX 1-4 have separate faders for left
and right
• The FX Home screen allows selection of the
FX 1-4 input sources and selecting the effects
type/algorithm for each of the 8 FX slots of the
virtual rack
• The subsequent tabs FX 1-FX 8 of the FX screen
allow editing all parameters of the chosen
effects processor
Quick Start Guide
iPad App for X32 PRODUCER
Many functions of the X32 PRODUCER console
can be remotely controlled by a dedicated iPad
app. Details about the app's download, setup and
operation are included in a separate user manual
available for download from the X32 PRODUCER
product page.
The app's User Interface is optimized for the
touchscreen nature of the iPad device and provides
many useful remote features of the console. Using
the app, you can perform functions such as adjusting
monitor mixes from the stage while interacting with
musicians, or adjusting the front-of-house mix from
the audience, while hearing the mix exactly as the
audience does.
Windows-based application and Linux/
OS X application for X32 PRODUCER
Also offered is a separate remote editor running
on host computers that will allow for complete
editing control of the X32 PRODUCER via Ethernet.
Details of the remote editor's download, setup and
operation are included in a separate user manual
available for download from the X32 PRODUCER
product page. Check out behringer.com for
more information.
Tip: The X32 PRODUCER remote communication is
OSC-based (open sound control) and we will share
the protocol on our website, allowing developers
to design their own control software. Stay tuned to
behringer.com for details on the OSC protocol.
X-USB card
The X-USB card allows transmission of up to
32 channels to and from a connected computer.
Please download the X-USB drivers and Quick Start
Guide from behringer.com before connecting the
mixer to your computer.
