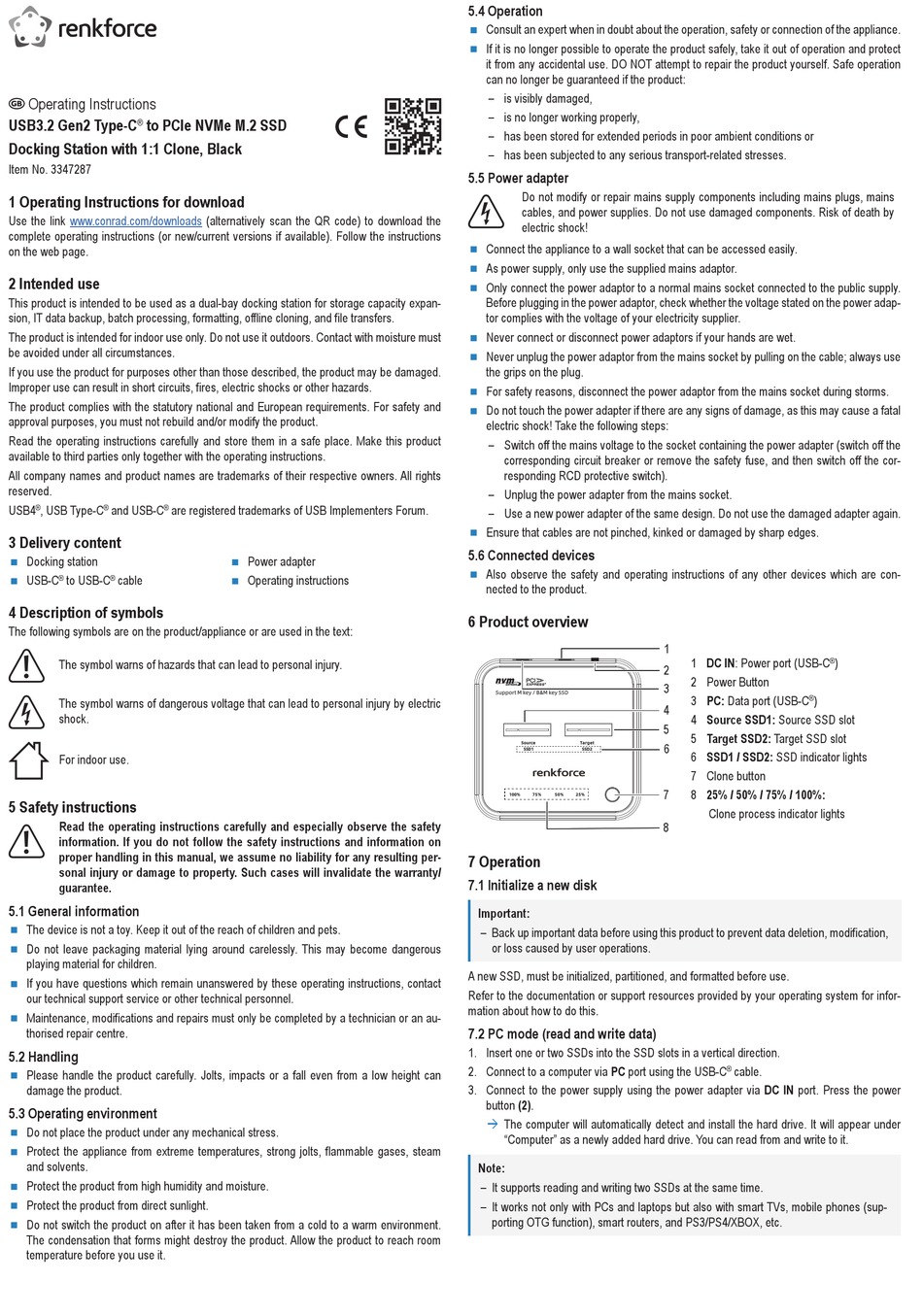

Renkforce RF-TPCD-300 Bedienungsanleitung Seite 3

Operating Instructions
USB3.2 Gen2 Type-C to PCIe NVMe M.2 SSD
®
Docking Station with 1:1 Clone, Black
Item No. 3347287
1 Operating Instructions for download
Use the link www.conrad.com/downloads
complete operating instructions (or new/current versions if available). Follow the instructions
on the web page.
2 Intended use
This product is intended to be used as a dual-bay docking station for storage capacity expan-
sion, IT data backup, batch processing, formatting, offline cloning, and file transfers.
The product is intended for indoor use only. Do not use it outdoors. Contact with moisture must
be avoided under all circumstances.
If you use the product for purposes other than those described, the product may be damaged.
Improper use can result in short circuits, fires, electric shocks or other hazards.
The product complies with the statutory national and European requirements. For safety and
approval purposes, you must not rebuild and/or modify the product.
Read the operating instructions carefully and store them in a safe place. Make this product
available to third parties only together with the operating instructions.
All company names and product names are trademarks of their respective owners. All rights
reserved.
USB4 , USB Type-C and USB-C are registered trademarks of USB Implementers Forum.
® ® ®
3 Delivery content
Docking station
USB-C to USB-C cable
® ®
4 Description of symbols
The following symbols are on the product/appliance or are used in the text:
The symbol warns of hazards that can lead to personal injury.
The symbol warns of dangerous voltage that can lead to personal injury by electric
shock.
For indoor use.
5 Safety instructions
Read the operating instructions carefully and especially observe the safety
information. If you do not follow the safety instructions and information on
proper handling in this manual, we assume no liability for any resulting per-
sonal injury or damage to property. Such cases will invalidate the warranty/
guarantee.
5.1 General information
The device is not a toy. Keep it out of the reach of children and pets.
Do not leave packaging material lying around carelessly. This may become dangerous
playing material for children.
If you have questions which remain unanswered by these operating instructions, contact
our technical support service or other technical personnel.
Maintenance, modifications and repairs must only be completed by a technician or an au-
thorised repair centre.
5.2 Handling
Please handle the product carefully. Jolts, impacts or a fall even from a low height can
damage the product.
5.3 Operating environment
Do not place the product under any mechanical stress.
Protect the appliance from extreme temperatures, strong jolts, flammable gases, steam
and solvents.
Protect the product from high humidity and moisture.
Protect the product from direct sunlight.
Do not switch the product on after it has been taken from a cold to a warm environment.
The condensation that forms might destroy the product. Allow the product to reach room
temperature before you use it.
(alternatively scan the QR code) to download the
Power adapter
Operating instructions
5.4 Operation
Consult an expert when in doubt about the operation, safety or connection of the appliance.
If it is no longer possible to operate the product safely, take it out of operation and protect
it from any accidental use. DO NOT attempt to repair the product yourself. Safe operation
can no longer be guaranteed if the product:
– is visibly damaged,
– is no longer working properly,
– has been stored for extended periods in poor ambient conditions or
– has been subjected to any serious transport-related stresses.
5.5 Power adapter
Do not modify or repair mains supply components including mains plugs, mains
cables, and power supplies. Do not use damaged components. Risk of death by
electric shock!
Connect the appliance to a wall socket that can be accessed easily.
As power supply, only use the supplied mains adaptor.
Only connect the power adaptor to a normal mains socket connected to the public supply.
Before plugging in the power adaptor, check whether the voltage stated on the power adap-
tor complies with the voltage of your electricity supplier.
Never connect or disconnect power adaptors if your hands are wet.
Never unplug the power adaptor from the mains socket by pulling on the cable; always use
the grips on the plug.
For safety reasons, disconnect the power adaptor from the mains socket during storms.
Do not touch the power adapter if there are any signs of damage, as this may cause a fatal
electric shock! Take the following steps:
– Switch off the mains voltage to the socket containing the power adapter (switch off the
corresponding circuit breaker or remove the safety fuse, and then switch off the cor-
responding RCD protective switch).
– Unplug the power adapter from the mains socket.
– Use a new power adapter of the same design. Do not use the damaged adapter again.
Ensure that cables are not pinched, kinked or damaged by sharp edges.
5.6 Connected devices
Also observe the safety and operating instructions of any other devices which are con-
nected to the product.
6 Product overview
7 Operation
7.1 Initialize a new disk
Important:
– Back up important data before using this product to prevent data deletion, modification,
or loss caused by user operations.
A new SSD, must be initialized, partitioned, and formatted before use.
Refer to the documentation or support resources provided by your operating system for infor-
mation about how to do this.
7.2 PC mode (read and write data)
1. Insert one or two SSDs into the SSD slots in a vertical direction.
2. Connect to a computer via PC port using the USB-C
3. Connect to the power supply using the power adapter via DC IN port. Press the power
button (2).
The computer will automatically detect and install the hard drive. It will appear under
Æ
"Computer" as a newly added hard drive. You can read from and write to it.
Note:
– It supports reading and writing two SSDs at the same time.
– It works not only with PCs and laptops but also with smart TVs, mobile phones (sup-
porting OTG function), smart routers, and PS3/PS4/XBOX, etc.
1
1 DC IN: Power port (USB-C )
®
2
2 Power Button
3
3 PC: Data port (USB-C
)
®
4
4 Source SSD1: Source SSD slot
5
5 Target SSD2: Target SSD slot
6
6 SSD1 / SSD2: SSD indicator lights
7 Clone button
7 8 25% / 50% / 75% / 100%:
Clone process indicator lights
8
cable.
®
