EASYMOUNT
®
TRUSS SUSPENSION BRACKET FOR EASYMOUNT
SAFETY INFORMATION
1. Please read these instructions carefully before you start installation and assembly.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.
5. Be attentive when mounting the product and protect yourself from injury.
6. This product is intended for indoor use only. Using it outdoors could lead to product failure and personal injury.
7. Do not modify this equipment.
8. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate plastic
and paper/cardboard.
9. Plastic bags must be kept out of reach of children.
10. If you have any questions refering to this instruction or any warnings, please contact your local distributor.
MANUFACTURER'S WARRANTY & LIMITATION OF LIABILITY
You can find our current warranty conditions and limitation of liability at:
https://cdn-shop.adamhall.com/media/pdf/MANUFACTURERS-DECLARATIONS_LD_SYSTEMS.pdf
To request warranty service for a product, please contact Adam Hall GmbH, Adam-Hall-Str. 1,
61267 Neu Anspach / Email Info@adamhall.com / 49 (0) 6081 / 9419-0
PROPER DISPOSAL OF THIS PRODUCT
(WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT)
(Valid in the European Union and other European countries with waste separation)
This symbol on the product, or the documents accompanying the product, indicates that this appliance may not be
treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled waste
disposal. Please dispose of this product separately from other waste and have it recycled to promote sustainable
economic activity.
Household users should contact either the retailer where they purchased this product, or their local government office,
for details on where and how they can recycle this item in an environmentally friendly manner.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product
should not be mixed with other commercial wastes for disposal
CE CONFORMITY
Adam Hall GmbH hereby confirm that this product meets the following guidelines (where applicable):
R&TTE (1999/5/EC) or RED (2014/53/EU) from June 2017 / Low-voltage directive (2014/35/EU)
EMC Directive (2014/30/EU) / RoHS (2011/65/EU) / The full declaration of conformity can be found at
www.adamhall.com. You can also request it via info@adamhall.com
SIMPLIFIED UK DECLARATION OF CONFORMITY
Hereby, Adam Hall Ltd. declares that the radio equipment type ( Radio Equipment
Regulations 2017) is in compliance with Directive SI2017/1206. The full text of the UK
declaration of conformity is available at the following internet adress:
www.adamhall.com/compliance/

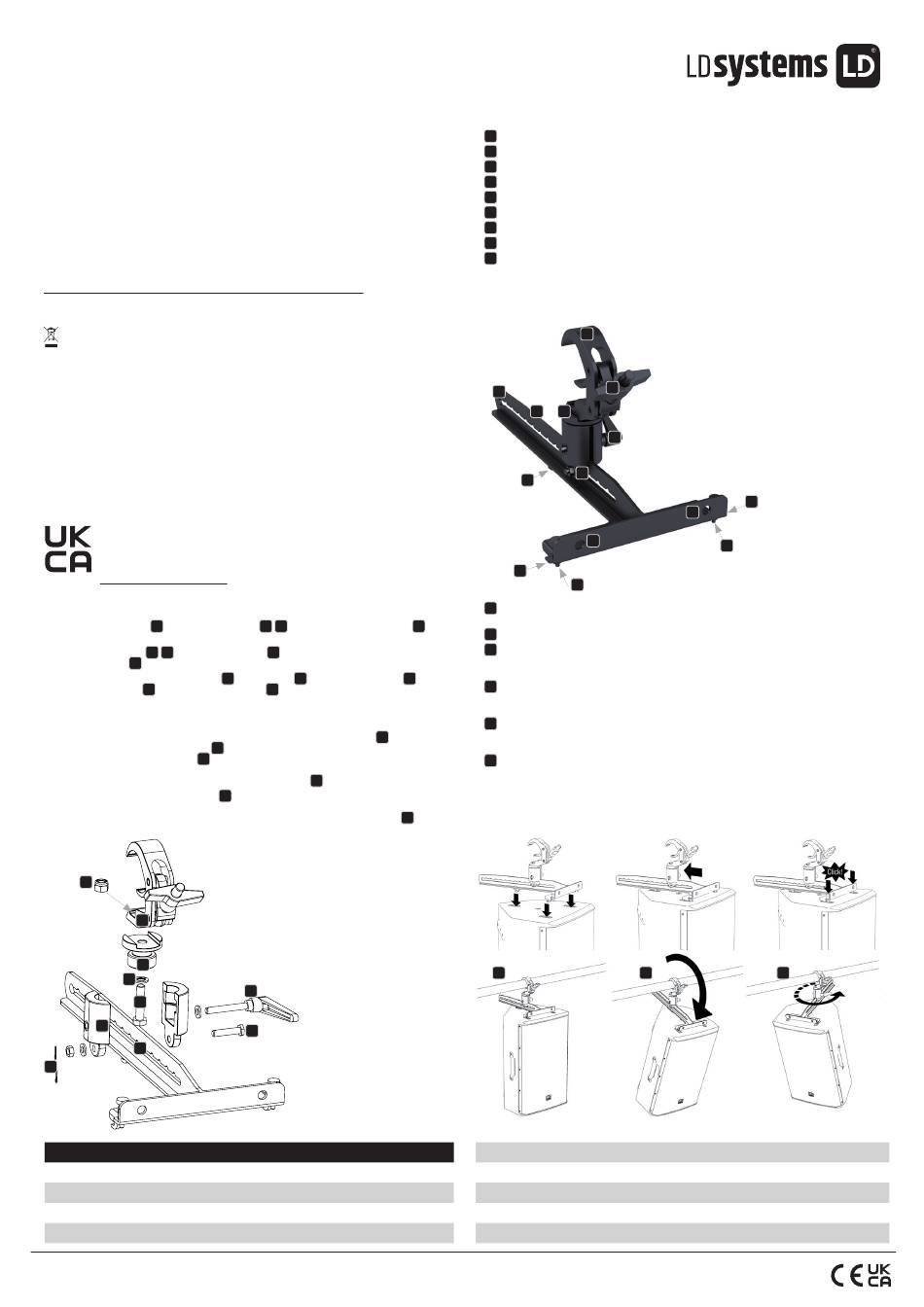

ASSEMBLY OF THE MOUNTING BRACKET AND TRAVERSE CLAMP
1. Release the safety splint
A from the two M8 screws
of the mounting bracket.
2. Unscrew the two screws
from the pivot/tilt head
B C
remove the cast piece E .
3. Now use the parts included – the M10 screw
– to attach the cast piece firmly to the traverse clamp
E
the traverse clamp in the recess of the cast piece and the self-locking nut in the recess of the traverse
clamp and then insert the screw with the spring washer through the cast piece into the traverse clamp
(see illustration).
4. Now place the cast piece with the traverse clamp into one half of the pivot/tilt head
two halves in such a way that the M8 screw C
of the one half, through the support rail J of the mounting bracket and through the installation hole
of the cylindrical pivot/tilt head. Place the previously removed washer on the screw and finger tighten
the M8 nut. Secure the nut using the previously released safety splint
5. Put the M8 washer onto the M8 lever screw
placed in the recess of the appropriate cylinder half of the pivot/tilt head. Insert the lever screw through
the two cylinder halves and tighten. Secure the screw using a previously released safety splint
H
I
E
G
F
D
J
A
Product number LDEBG3TMB
Type PA Loudspeaker Accessories
Part Truss Mount Bracket
Suitable for LDEB122G3, LDEB122AG3, LDEB152G3, LDEB152AG3, LDICOA12APRO, LDICOA15APRO
Material Steel/Zinc
-COMPATIBLE LOUDSPEAKERS
®
B C in the cylindrical pivot/tilt head
, separate the two cylinder halves and
D
, spring washer and self-locking M10 nut
F G
using a 17 mm socket tool. To do so, place
i
D and join the
can be placed through the appropriate installation hole
.
A
B , taking care to ensure that the M8 nut is correctly
B
C
LD Systems
Adam Hall GmbH | Adam-Hall-Str. 1 | 61267 Neu-Anspach | Germany
Phone: +49 6081 9419-0 | adamhall.com
PARTS DESCRIPTION AND INSTALLATION
1 Traverse clamp for mounting on a horizontal traverse.
2 Wing nut for clamping to a traverse.
3
T-screw to lock the horizontal and vertical axes
4
Mounting rail with slots to adjust the vertical dispersion of the speaker.
5 Retaining pin.
6
Rotation mechanism for adjusting the horizontal dispersion of the speaker.
7
Three steel hooks which insert into the retaining sockets on the top of the speaker.
8 Two spring-loaded locking pins to secure the connection.
9
Mounting holes for alternative installation of the speaker with chains.
Important: Before any assembly, check that all mounting bracket components are complete, undamaged
and work correctly (split pins, screws, bolts, nuts, locking pins, steel hooks, retaining sockets in speakers,
etc.). Should any mounting bracket component be damaged, missing or not function properly, the
mounting bracket should not be used.
9
4 6
7
7
10
Insert all three steel hooks of the EasyMount bracket into the corresponding retaining sockets on
the speaker.
D
11
Slide the entire bracket towards the back of the speaker.
12 When installing the mounting bracket, ensure that the spring-loaded locking pins engage fully.
Ensure that locking pins are functioning correctly before every installation. For safety reasons, both
locking pins must be pulled upwards simultaneously to release the connection (two-hand release).
H
13 Before attaching the speaker to a traverse, tighten the T-screw on the mounting bracket No. 3.
Using traverse clamp No.1, suspend the speaker from a horizontal traverse in a suitable position, and
fasten it into place with wing nut No. 2.
14
Loosen T-screw No. 3 slightly (approximately 1 turn). To adjust the vertical dispersion of the speaker,
lift the speaker slightly and slide the notched mounting rail No.4 into the desired tilt position.
Release the speaker to allow the retaining pin No. 5 to engage in the corresponding notch.
15
Turn the speaker until the desired horizontal dispersion is achieved and tighten T-screw No. 3.
.
A
13
Surface
Colour
Max. Load
Dimensions (W x H x D)
Weight
® is a registered brand of the Adam Hall Group
1
2
3
5
9
9
8
8
14
Powder Coated
Black
28 kg
230 mm x 240 mm x 430 mm
2.3 kg
7
15
