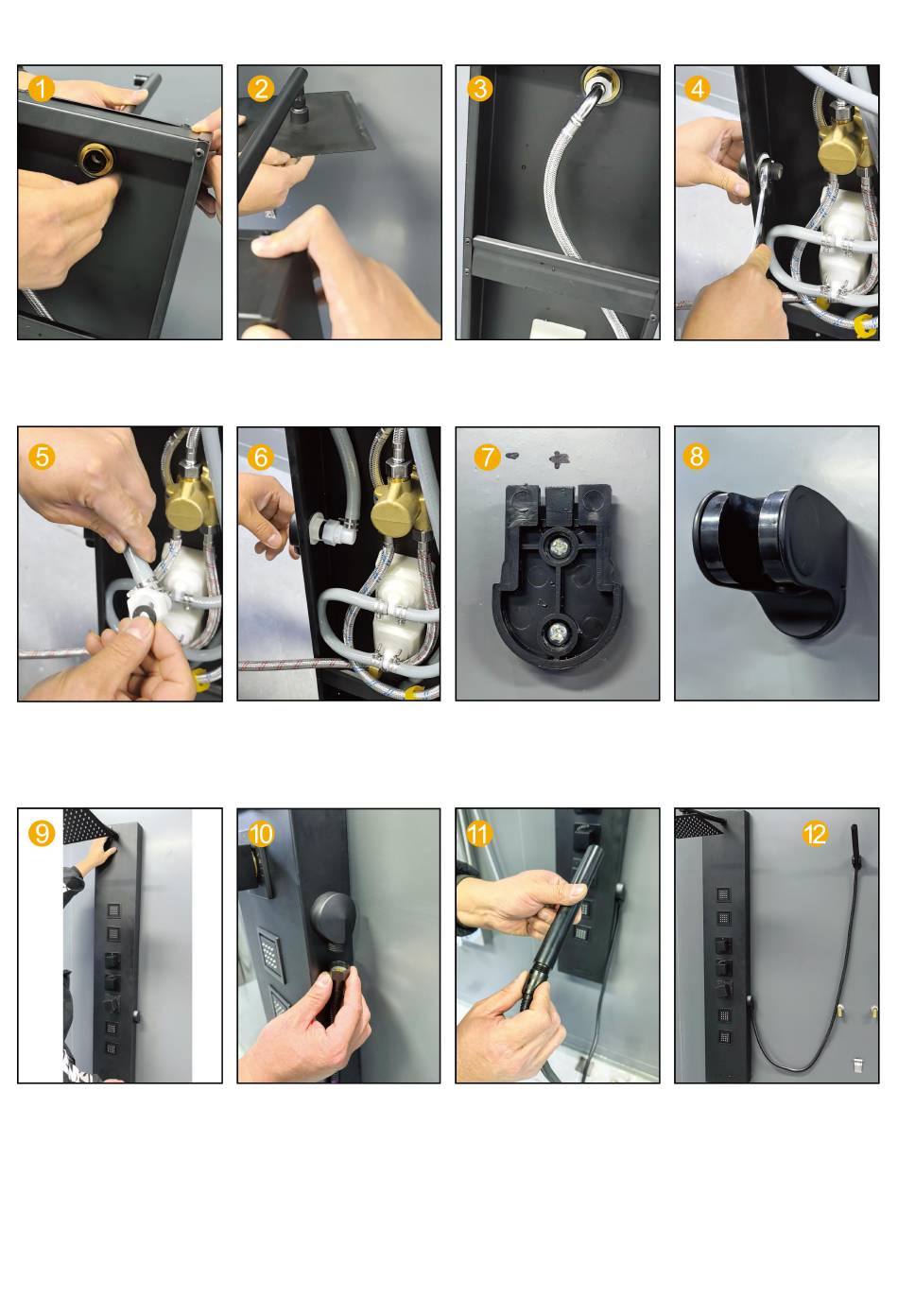

Fix the water outlet arm
to the main board with
nuts and washers.
Put the 4-way rubber
into the shower head
connector.
Fix the panel to the wall
at the appropriate height
with the bracket.
MODEL
Connect the top spray
and the water outlet arm
joint.
Connect the water outlet
connector and the
shower head water
outlet connector.
Connect the handheld
shower head to the
hose.
7015FY
Connect the steel wire
pipe and the shower
arm and tighten it.
Fix the shower head
bracket to the wall at the
appropriate position with
screws and nuts.
Connect to the
handheld shower head.
- 8 -
Fix the shower outlet
connector to the panel
with a nut.
Installation of the
shower head bracket
completed.
Installation completed.
