Commend AFLS 10H HG Kurzanleitung

IP Horn Loudspeaker AFLS 10H HG

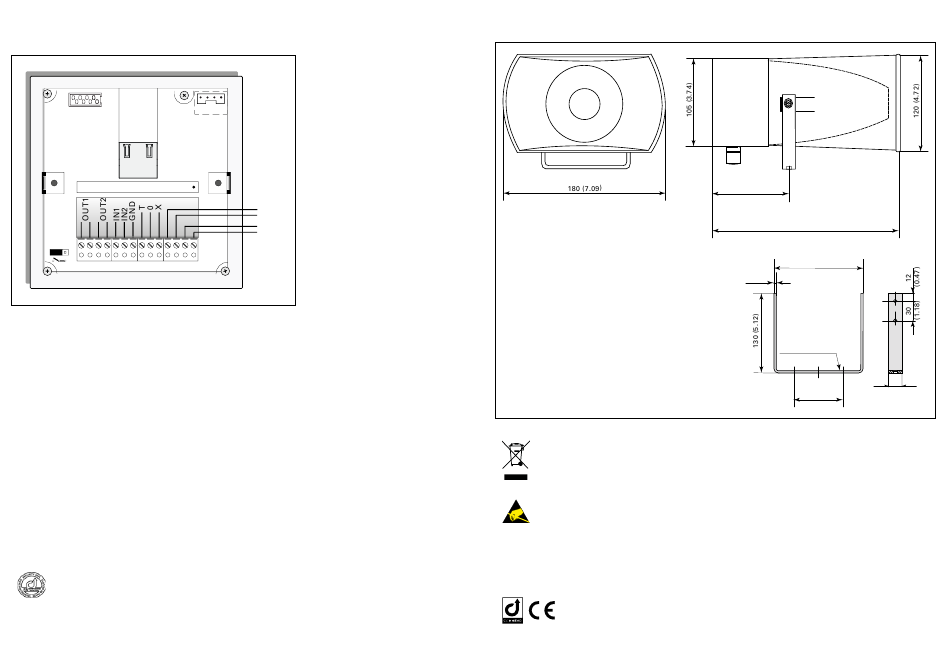

Connection diagram
Rear view
IP Uplink
JP1
– OUT 1 factory adjusted as normally open contact. With the jumper JP1 it can be converted into a
normally closed contact.
– OUT 2 factory adjusted as normally open contact.
– PoE ("Power over Ethernet"): IEEE 802.3af standard
Power consumption of the terminal device: Class 0
Attention
Due to limited space inside the housing (distance between RJ45 jack and housing is 40 mm) only RJ45
crimp connectors up to 30 mm total length shall be used.
The loudspeaker is a hybrid product and can be booted as IoIP device or SIP device. Per factory de-
fault, the boot mode of the device is "SIP" . The boot mode can be changed to "IoIP" via the configura-
tion software IP Station Config (min. Version 4.0.5).
First connection (SIP)
The IP address is assigned directly via the DHCP server. If DHCP is not available in the network, the
default address 192.168.1.200 will be used. The web interface can be accessed via a web browser using
the URL http://<IP address>.
Login
User name: admin
Password: commend
FA: Microphone adjusted ex works. If necessary the
microphone sensitivity should be set via CCT 800 by an
experienced technician.
For technical data and system requirements see the respective datasheet.
Latest software and documentation
For current software and documentation, please visit: www.software-manuals.com
MIC+
MIC–
LS+
LS–
JP1
Measurements
Measurements in mm (inch), not to scale!
Disposal and recycling
Equipment with this symbol shall not be disposed of together with household or
commercial waste.
The directive 2012/19/EU on waste electrical and electronical equipment (WEEE) is
applicable in the European Union member states.
Attention
Observe the precautions for handling of electrostatic sensitive devices!
The device may be only installed by authorised engineers.
Observe the relevant national and local regulations for the installation.
WARNING: In operation as a SIP version, this is a Class A product. In a domestic environ-
ment this product may cause radio interference in which case the user may be required to
take adequate measures.
Manufacturer's reference
This equipment fulfils the requirements of the EU directive 2004/108/EC EMC.
Therefore this equipment is CE-labelled.
Please keep this description in safe custody!
Type: D-BZ-AFLS10HHG, Version: 1.1/1115
www.commend.com
95 (6.10)
235 (9.25)
125 (4.92)
3
(0.12)
3 holes ø 6
(ø 0.24)
25
(0.98)
80 (3.15)
