Commend CLS 6 PW Kurzanleitung

CLS 6 PW / CLS 6 PW70V
Projector loudspeaker
Technical data
Housing: aluminium
Sound pressure level: 93 dB (1 W/1 m)
Max. sound pressure level: 101 dB (1 m)
Loudspeaker frequency range: 70 Hz to 19 kHz (−10 dB)
Loudspeaker transmission angle: 130°
Connections: 4-core cable
Colour: white (RAL 9010)
Dimensions (Ø x D):
144 x 210 mm (5.67 x 8.27 in)
Weight incl. package: approx. 2,135 g (4.7 lbs)
Impedances and transformer matching
Product version: CLS 6 PW
Operating voltage: 100 V
Load rating: 6 W
Loudspeaker impedance: 1.6 kΩ/3.3 kΩ/6.6 kΩ 1.6 kΩ/3.3 kΩ/6.6 kΩ 816 Ω/1.6 kΩ/3.2 kΩ
Transformer matching 6 W/3 W/1.5 W
(grey/brown/black):
Mounting instructions
• Do not install the device on unstable walls or on surfaces which cannot support the device's weight.
• When using dowels, make sure to clean the wall holes properly after drilling.
• This device shall be installed or replaced by trained and qualified personnel only, and only when
the power supply is disconnected.
• Observe the country-specific standards for installation, mounting and configuration.
• Install or store this device out of the reach of children and do not allow persons unfamiliar with the
device and these instructions to handle and operate the device.
• To change the position of the loudspeaker, adjust the bracket as required (by loosening/tightening
the screws).
• Use 3 screws with a diameter from 5 to 5.5 mm. Fastening, screw type and screw length depends
on the mounting ground.
• All connected circuits shall fulfil the requirements for ES1 circuits (cf. SELV acc. IEC/EN 60950-1) and
PS2 (Limited Power Source) as per IEC/EN 62368-1.
Extent of supply
• Projector loudspeaker
• Aluminium mounting bracket
• Connection cable (4-core, 1.5 m / 59 in)
• Screws and wallplugs
• Short reference
CLS 6 PW CLS 6 PW70V
70 V 70 V
3 W 6 W
3 W/1.5 W/0.75 W 6 W/3 W/1.5 W

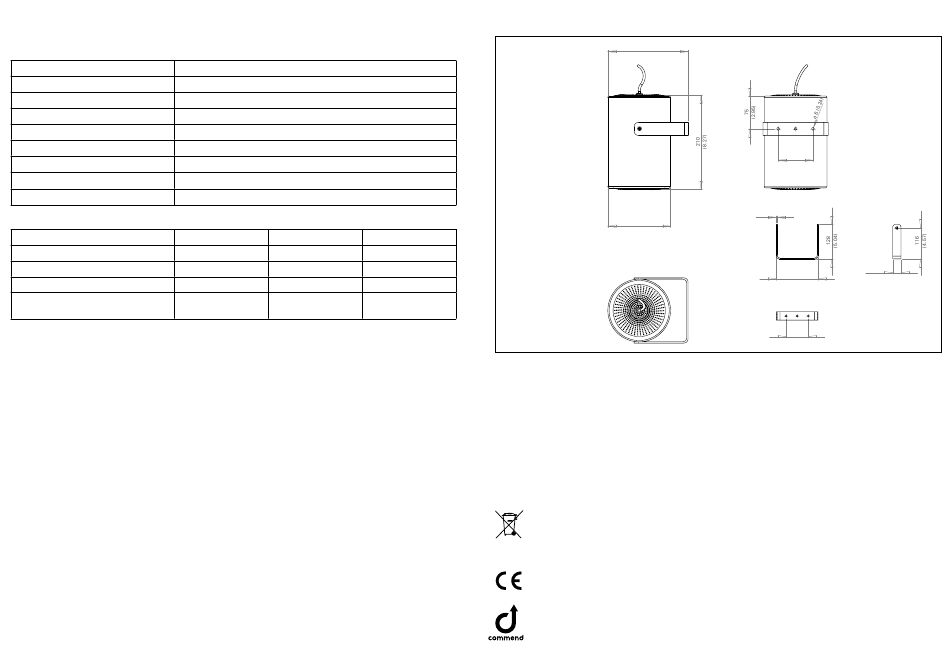

Dimensions
Measuring units in mm (in), not to scale!
193
(7 .6)
ø 144
(5.67)
Safety instructions
• Only use recommended tools when installing the device.
• Do not place the device in areas where it may become wet or damp, and avoid dusty, humid and
high temperature environments.
• Only accessories that comply with the device's technical specifications shall be used.
• Before using the device, ensure all cables are connected correctly and not damaged.
• Allow the device to cool down completely before touching parts inside.
• Do not make any unauthorised modifications to the device.
Handling
Use the original packaging when transporting the device to prevent damage.
Disposal and recycling
Equipment with this symbol shall not be disposed of together with household or commercial
waste.
The directive 2012/19/EU on waste electrical and electronical equipment (WEEE) is applicable
in the European Union member states.
Manufacturer's reference
This device complies with the European directives listed below by fulfilling corresponding
standards:
• The restriction of the use of certain hazardous substances in electrical and electronic
equipment (directive 2011/65/EU)
For technical specifications, see the respective datasheet.
For the latest software and documentation, visit: www.commend.com
Keep this description in safe custody.
Type: D-BZ-CLS6PW, Version: 1.2/0124 Commend International GmbH, Saalachstraße 51, A-5020 Salzburg – www.commend.com
