UNPACKING INSTRUCTION
CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been
received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from
shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be
returned, it is important that the product is returned in the original factory box and packaging. If the device has been exposed to
drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might
damage your device. Leave the device switched off until it has reached room temperature.
POWERSUPPLY
The label on the back/under side of the product indicates the mains voltage to which it must be connected. Check that the mains
voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must
also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.
Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate
electrical ground to avoid the risk of electrocution or fire.

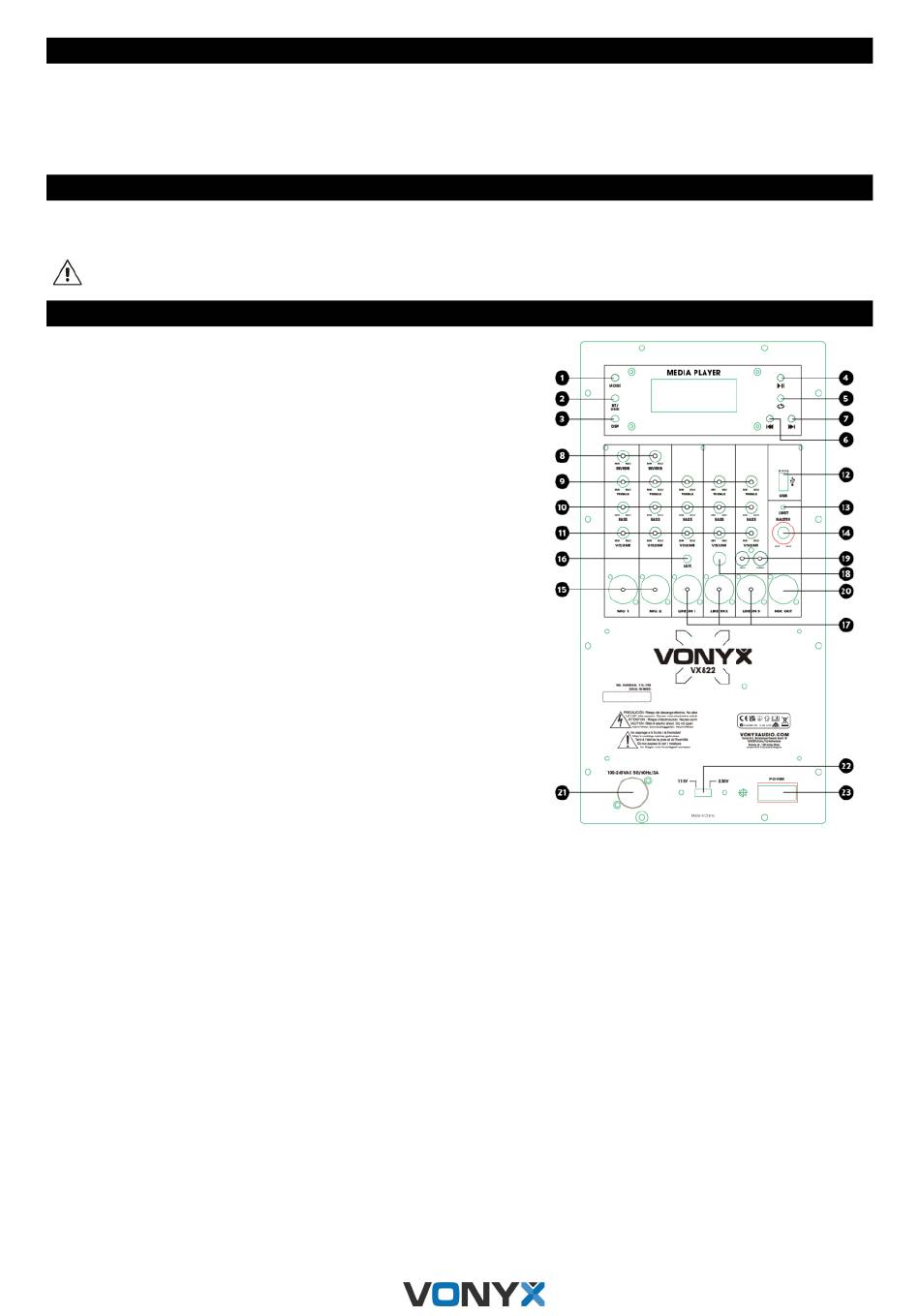

OVERVIEW
1. MODE
Press this button to switch between BT and USB modes
2. BT/LINK
Press this button to connect/disconnect BT
Press and hold this button to set up STEREO LINK function
3. DSP PRESETS
Press to switch between presets (LIVE / DJ / SPEECH / MONITOR)
4. PLAY/PAUSE
Press this button to play/pause (only in USB/BT mode)
5. LOOP PLAYBACK
Press this button to continuously reply (only in USB/BT mode)
6. PREVIOUS
Press this button to play previous track (only in USB/BT mode)
7. NEXT
Press this button to play next track (only in USB/BT mode)
8. REVERB
Microphone REVERB volume adjustment
9. TREBLE
Rotate this knob to adjust the treble (high tones) level of the
corresponding channel
10. BASS
Rotate this knob to adjust the bass (low tones) level of the
corresponding channel
11. VOLUME
Rotate this knob to adjust the volume level of the corresponding
channel
12. USB PORT
Slot to insert USB-stick
13. LIMIT
Limit indicator LED. Lights up when the output limiter is active. The
output limiter will operate in order to protect the speaker and amp,
attenuating the output signal to the amplifier. If this indicator stays lit, lower the level of the input signal
14. MASTER LEVEL
Rotate this knob to adjust the master output level
15. MIC 1 AND 2 INPUT
XLR and 6.3 mm combo jack input connectors for connecting microphones
16. AUX INPUT
3.5 mm auxiliary input jack to connect an external audio device
17. LINE IN 1, 2 AND 3 INPUT
XLR line input sockets to connect an external audio device
18. LINE IN
6,3 mm jack line input to connect an external audio device
19. RCA input
Left and Right RCA stereo input jacks to connect an external audio device
20. MIX OUTPUT
XLR connector for mix signal output
21. POWER CONNECTOR
Socket for plugging in powercord. Use a 3-core power cord with ground wire and rotate Clockwise can lock,
rotate counterclockwise can unlock
22. VOLTAGE SWITCH
Switch the voltage switch (be sure to confirm that the voltage is consistent with the local voltage
23. POWER SWITCH
Press to turn the device on/off
