Assembly instructions

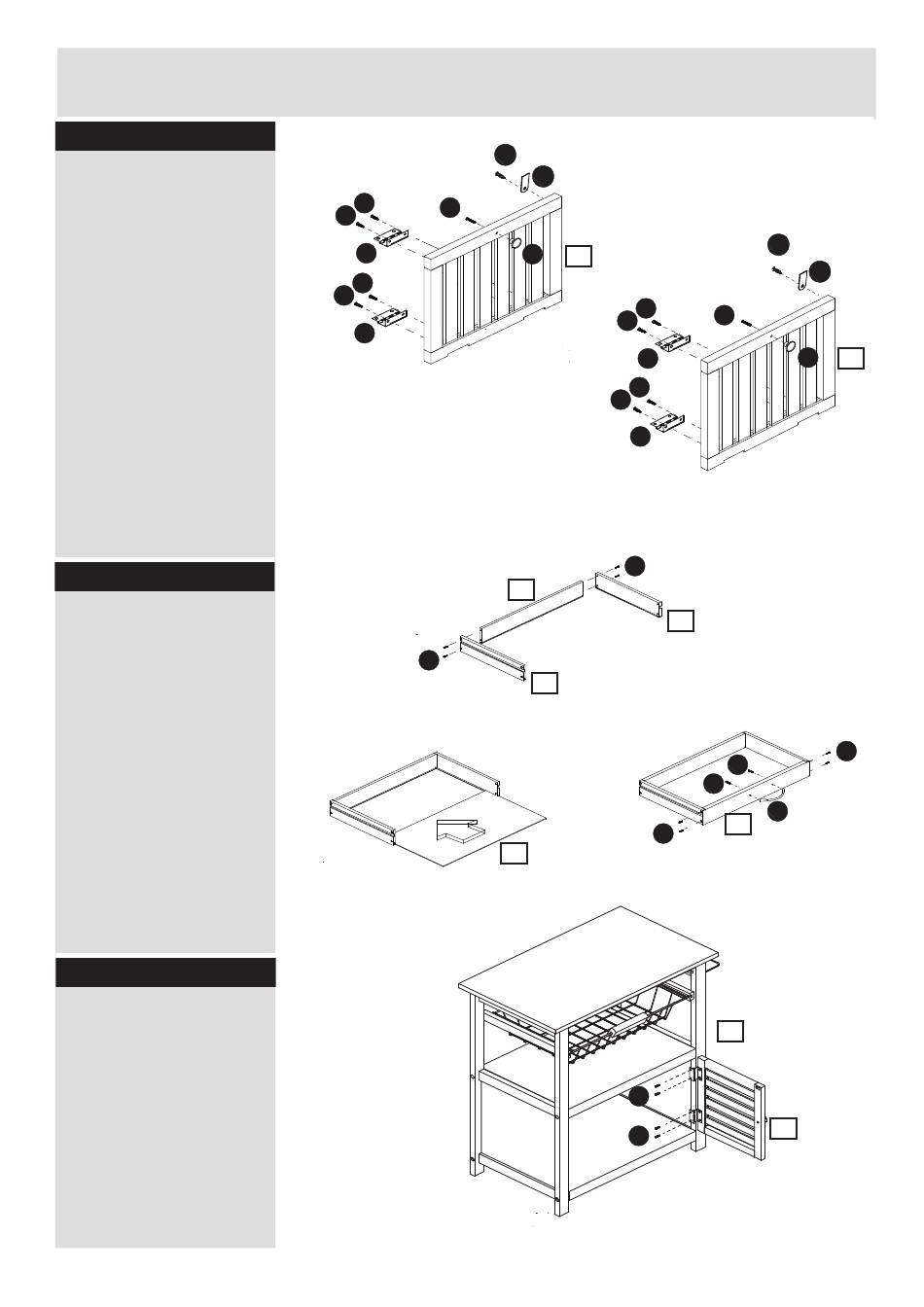

Step 4
1. For the right and left
hand doors (13 & 14),
connect four hinges (C) in
the positions shown, using
two screws (D) per hinge
(a total of eight screws).
2. Connect two handles (E)
to the front of the doors,
using one screw (F) per
handle.
Step 5
Assembling the drawers
1. For the drawer back
panel (3), connect two
drawer side panels using
four screws (B).
2. Slide the base panel (4)
into position.
3. Fit the drawer front (5)
as shown using four
screws (B).
Step 6
1. Fit the right hand door
(13) to the side panel (8)
by attaching two hinges,
using two screws (D) per
hinge (four screws in total).
D
D
F
D
C
D
D
C
B
4
-6-
N
E
13
D
D
C
D
D
C
B
3
2
2
B
D
D
D
N
F
E
14
B
M
M
L
5
8
13
