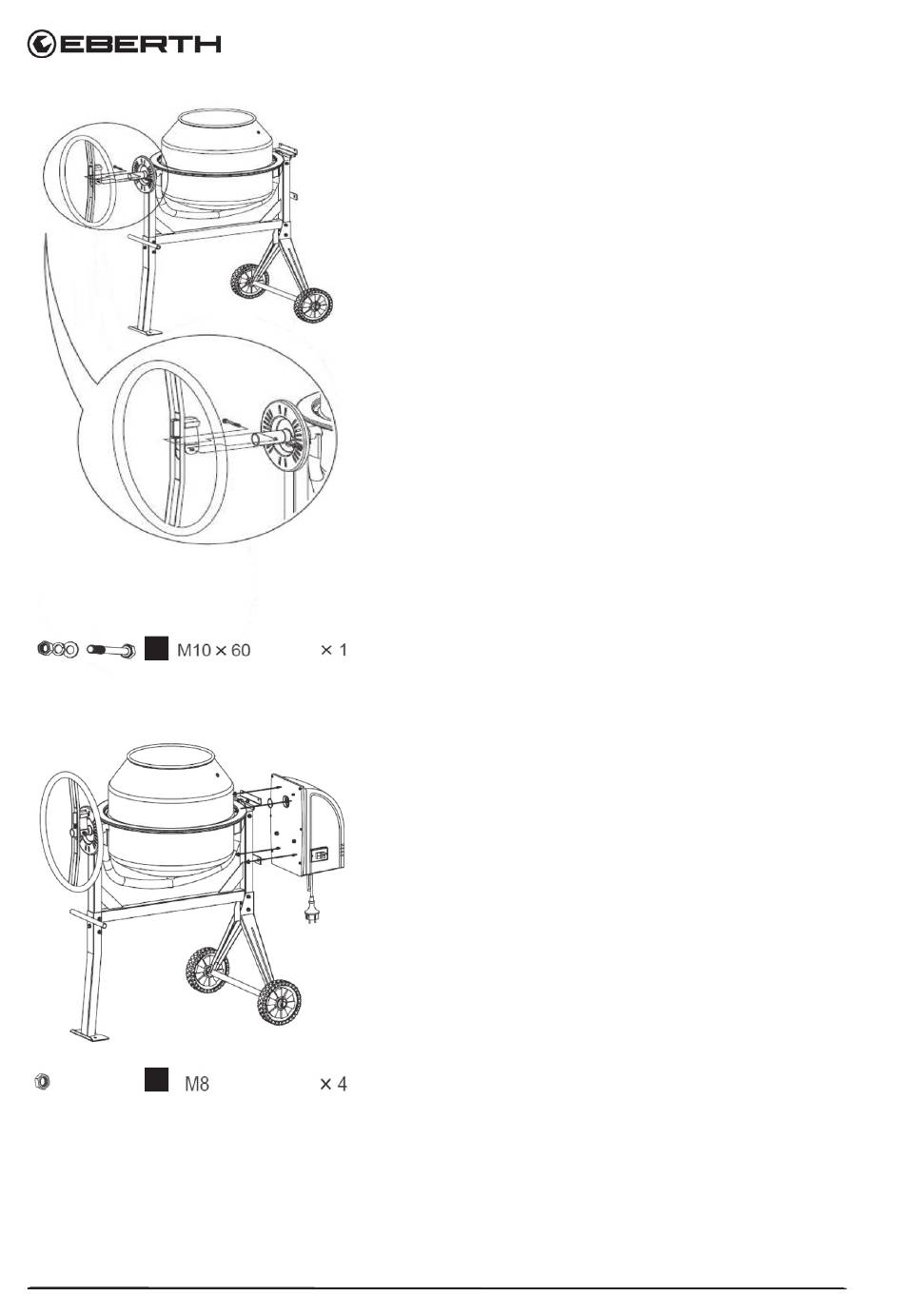

Fig.12
8. Remove the spring from the bag „H". The
spring holder is located in the swivel wheel cen-
tre brace. Place the spring in the open end of
the swivel wheel.One person pushes the swing
wheel with a spring onto the shaft until connec-
tion holes are visible, another person pushes the
screw through the swing wheel and shaft.Fix the
screw (H), Fig.12.
Fig.13
9. In the last assembly step you assemble the
drive.To do this, align the teeth and slide the
drive over the shaft. Screw the motor housing to
the frame.Use nuts marked M8 (I), Fig.13.
